Microscan, Nerlite Edge to Edge Backlight Series

The Edge to Edge Backlight Series provides sharp contrast to outline a part's shape, find edges and view openings such as drilled holes. High intensity and uniformity are packed into a low-profile industrial package providing optimal thermal management of the LEDs. The lighting design provides the unique ability to mate multiple lights to provide larger illuminated areas.

Available in 3 colors and Infrared
4 sizes are available
High level of uniformity for repeatable machine vision results
Edge-to-Edge technology allows multiple lights to be combined creating larger illuminated areas
M12 connectors for easy connections to power supplies, drivers or advanced controllers
Low profile, compact shape takes minimal space providing ease of integration within machinery

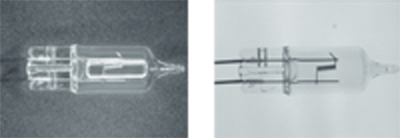

Illumination Example:

Light bulb: Resulting image clearly shows silhouette of filament inside the bulb

Functionality:

BACKLIGHT 47x59

DESCRIPTION	nm/K	CONT. CURRENT	STROBE CURRENT	mcd/cm²	mw/cm²
Backlight, 47x59, Red Continuous	640 nm	93 mA		77
Backlight, 47x59, Red Strobe	640 nm		2.67 A	1100
Backlight, 47x59, White Continuous	6500 K	201 mA		880
Backlight, 47x59, White Strobe	6500 K		3.34 A	11670
Backlight, 47x59, Blue Continuous	470 nm	170 mA		177
Backlight, 47x59, Blue Strobe	470 nm		3.0 A	2510
Backlight, 47x59, Infrared Continuous	880 nm	140 mA			1.6
Backlight, 47x59, Infrared Strobe	880 nm		4.0 A		23

Active Area: 1.9” x 2.3” (47 mm x 59 mm) Weight: 3 oz. (80 g)
Dimensions: H 2.28” (58 mm) x W 2.3” (59 mm) x D 0.6” (15.2 mm)

BACKLIGHT 71x88

DESCRIPTION	nm/K	CONT. CURRENT	STROBE CURRENT	mcd/cm²	mw/cm²
Backlight, 71x88, Red Continuous	640 nm	170 mA		77
Backlight, 71x88, Red Strobe	640 nm		5.01 A	1135
Backlight, 71x88, White Continuous	6500 K	330 mA		810
Backlight, 71x88, White Strobe	6500 K		9.0 A	11050
Backlight, 71x88, Blue Continuous	470 nm	310 mA		175
Backlight, 71x88, Blue Strobe	470 nm		9.0 A	2575
Backlight, 71x88, Infrared Continuous	880 nm	220 mA			1.5
Backlight, 71x88, Infrared Strobe	880 nm		7.5 A		26

Active Area: 2.8” x 3.5” (71 mm x 88 mm) Weight: 5 oz. (140 g)
Dimensions: H 3.21” (81.6 mm) x W 3.5” (88 mm) x D 0.6” (15.2 mm)

BACKLIGHT 100x100

DESCRIPTION	nm/K	CONT. CURRENT	STROBE CURRENT	mcd/cm²	mw/cm²
Backlight, 100x100, Red Continuous	640 nm	155 mA		95
Backlight, 100x100, Red Strobe	640 nm		4.99 A	700
Backlight, 100x100, White Continuous	6500 K	350 mA		625
Backlight, 100x100, White Strobe	6500 K		9.98 A	7100
Backlight, 100x100, Blue Continuous	470 nm	320 mA		125
Backlight, 100x100, Blue Strobe	470 nm		9.98 A	1570
Backlight, 100x100, Infrared Continuous	880 nm	250 mA			1
Backlight, 100x100, Infrared Strobe	880 nm		7.99 A		16

Active Area: 3.9” x 3.9” (100 mm x 100 mm) Weight: 7 oz. (200 g)
Dimensions: H 4.36” (110.9 mm) x W 3.9” (100 mm) x D 0.66” (16.8 mm)

BACKLIGHT 50x200

DESCRIPTION	nm/K	CONT. CURRENT	STROBE CURRENT	mcd/cm²	mw/cm²
Backlight, 50x200, Red Continuous	640 nm	155 mA		95
Backlight, 50x200, Red Strobe	640 nm		4.99 A	700
Backlight, 50x200, White Continuous	6500 K	350 mA		625
Backlight, 50x200, White Strobe	6500 K		9.98 A	7100
Backlight, 50x200, Blue Continuous	470 nm	320 mA		125
Backlight, 50x200, Blue Strobe	470 nm		9.98 A	1570
Backlight, 50x200, Infrared Continuous	880 nm	250 mA			1
Backlight, 50x200, Infrared Strobe	880 nm		7.99 A		16

Active Area: 2.0” x 7.9” (50 mm x 200 mm) Weight: 8 oz. (230 g)
Dimensions: H 2.4” (60.9 mm) x W 7.9” (200 mm) x D 0.66” (16.8 mm)s
