Microscan, Nerlite DOAL Series

Smart Series DOAL® (Diffuse On-Axis Light) illuminators provide diffuse, uniform illumination for flat specular surfaces. With the coaxial lighting approach, specular surfaces perpendicular to the camera appear bright, while surfaces surfaces which are marked or embossed absorb light and appear dark. By providing greater uniformity than conventional sources, DOALs increase machine vision accuracy and repeatability.

Available in 3 colors and Infrared
4 sizes are available
Smart Series Technology: Built-in controller with continuous and high output strobe modes
Provides superior uniformity throughout the illumination envelope
Compact, light weight package can be used on moving camera modules
Passively cooled models are available (DOAL 25 & DOAL 50)

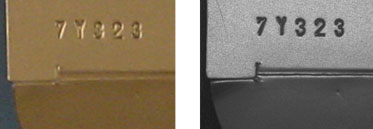

Illumination Example:

Stamped characters on a metal plate: High contrast image allows inspection or reading

Functionality:

DOAL 25

Description	nm/K	CURRENT DRAW 24VDC	mcd		mw
			CONT.	STROBE	CONT.	STROBE
DOAL-25, Smart Series, Red	628 nm	400 mA	4173	23369
DOAL-25, Smart Series, Blue	470 nm	200 mA	2522	11096
DOAL-25, Smart Series, White	5500 K	200 mA	5443	23406

Light Aperture: 1.00" x 0.95" (25.4 mm x 24.1 mm) Field of View: 0.50" (13 mm)
Stand Off: 0.50” (13 mm) Weight: 4 oz. (113 g)
Dimensions: H 1.24” (31.5 mm) x W 1.25" (31.8 mm) x D 3.11” (79 mm)

DOAL 50

Description	nm/K	CURRENT DRAW 24VDC	mcd		mw
			CONT.	STROBE	CONT.	STROBE
DOAL-50, Smart Series, Red	628 nm	1.3 A	15967	76640
DOAL-50, Smart Series, Blue	470 nm	1.0 A	9684	41156
DOAL-50, Smart Series, White	5500 K	1.0 A	20902	89878

Light Aperture: 2.04" x 1.88" (51.8 mm x 47.8 mm) Field of View: 1.00" (25.4 mm)
Stand Off: 1.00” (25.4 mm) Weight: 11.2 oz. (318 g)
Dimensions: H 2.18” (55.4 mm) x W 2.29" (58.2 mm) x D 4.20” (106.7 mm)

DOAL 75

Description	nm/K	CURRENT DRAW 24VDC	mcd		mw
			CONT.	STROBE	CONT.	STROBE
DOAL-75, Smart Series, Red	628 nm	2.4 A	31026	148926
DOAL-75, Smart Series, Blue	470 nm	1.5 A	22696	97594
DOAL-75, Smart Series, White	5500 K	1.5 A	48989	210652

Light Aperture: 2.99" x 2.83" (75.8 mm x 71.9 mm) Field of View: 1.50" (38.1 mm)
Stand Off: 1.00” (25.4 mm) Weight: 22.4 oz. (635 g)
Dimensions: H 3.13” (79.5 mm) x W 3.23" (82.2 mm) x D 5.15” (130.8 mm)

DOAL 100

Description	nm/K	CURRENT DRAW 24VDC	mcd		mw
			CONT.	STROBE	CONT.	STROBE
DOAL-100, Smart Series, Red	628 nm	3.6 A	50803	219470
DOAL-100, Smart Series, Blue	470 nm	1.6 A	30665	113461
DOAL-100, Smart Series, White	5500 K	1.6 A	66189	244900

Light Aperture: 4.00" x 3.88" (101.6 mm x 98.5 mm) Field of View: 2.00" (50.8 mm)
Stand Off: 1.00” (25.4 mm) Weight: 38.4 oz. (1089 g)
Dimensions: H 4.18” (106.1 mm) x W 4.25" (107.9 mm) x D 6.20” (157.4 mm)

TITLE	DOCUMENT TYPE	SIZE
Smart Series DOAL Configuration Guide	Catalog	8313 KB
Smart Series DOAL Specification Sheet	Catalog	640 KB
Smart Series DOAL Drawings	Software	13400 KB
Smart Series DOAL Quick Start Guides	Software	4155 KB
