Application example of automation system

This is an example of an elevator, escalator, and parking system using Autonics products.

Related Products

BEN Series Compact Built in Amplifier Sensors
BEN Series is built-in amplifier type in a compact size. This type has an indicator to allow users to identify operation status of sensors from a long distance.
BUP Series U Shaped Photoelectric Sensors
Reinforced plastic case U-shaped type photo sensor BUP series realizes sensing reliability through superior extraneous light prevention function and guarantees fast and accurate sensing performance with up to 1ms response time. Also, the series has mounting holes in order to be installed in various directions for user convenience.
BUM Series 4 Beam U Shaped Photoelectric Sensors
The BUM series U-shaped photoelectric sensors feature 4 independent outputs and high speed response time under 1ms for highly reliable and stable presence detection. Each output channel can be controlled individually, and the sensors can be used as an alternative to multiple sensor configurations. The BUM series is specially configured for optimal performance in detection of moving parts including elevator systems.
BJ Series Universal Photoelectric Sensors
BGS Reflective Type which reduces the influence of background objects by adopting background suppress function realizes more stable and upgraded sensing performance by minimizing error range regardless of materials and colors of sensing objects. Connector Type Cable outgoing connector types guarantee more convenient maintenance and wiring work than cable outgoing types and implement enhanced performance by realizing IP67 the excellent protection structure.
ADS-SE1/2 Series Door side sensors
The ADS-SE1/2 series automatic door side sensors are through-beam type sensor system with a dedicated controller. The sensors feature long sensing distances up to 10m and provides stable detection even in high ambient lighting, up to 100,000 lux. Connection between sensor and controller is made easy with push-to-connect wiring and one-touch automatic sensitivity adjustment function is included for convenient set up. The ADS-SE1/2 series controllers are also 20% smaller than the previous ADS-SE models.
PRD Series Long Distance Proximity Sensors
Long distance sensing proximity sensor PRD Series guarantees 1.5~2 times longer sensing distance compared to existing models, and features world-best class superior noise resistance characteristics with exclusively designed IC. In addition, the sensor-to-cable connection part was upgraded for more flexural rigidity and durability.
PRDW Series Double Sensing Proximity Sensors with Cable
Cylindrical, long sensing distance, cable connector type inductive proximity sensors PRDW Series guarantees 1.5~2 times longer sensing distance compared to existing models, and features world-best class superior noise resistance characteristics with exclusively designed IC. Also, this type can be used in diverse applications with capabilities to replace spatter-resistant type limit switches. Moreover, non-polarity power supply line-ups help users avoid wrong wiring and save wiring works in order to improve user convenience ever.
PRDCM Series Double Sensing Proximity Sensors with Connectors
Long distance sensing connector type proximity sensor PRDCM Series makes maintenance and wiring works easier than ever. The series guarantees 1.5~2 times longer sensing distance compared to existing models. Also, it realizes world-best class superior noise resistance characteristics with dedicated IC.
PS/ PSN Series Square Type Proximity Sensors
This brick shaped proximity sensor PS/PSN Series features world best class superior noise resistance with exclusively designed IC. There are various size options to choose from.
PFI Series Flat Proximity Sensors
Flat type proximity PFI Series features world-best class superior noise resistance characteristics with exclusively designed IC. Measuring only 10mm in height, this model allows more efficient work environment with compact installation.
E40 Series 40-mm-dia. Rotary Encoders
Diameter ∅40mm shaft type/hollow type/built-in type incremental rotary encoder E40 Series newly adds Line Driver output supporting power voltage 12-24VDC range to allow more diverse user applications. Moreover, the series could be ideal solutions for narrow space by minimizing space limit. Small moment of inertia is another feature of the series to optimize user convenience.

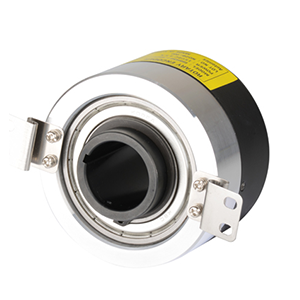

E88H Series 88-mm-dia. Rotary Encoders in Hollow Shaft
The E88H series incremental rotary encoders with Ø88 mm size housings and Ø30 mm hollow shaft sizes are optimized for elevator systems. The encoders feature resolution of 1024 pulses per revolution and supports speeds up to 3600 rpm and 150 kHz response frequency. The encoders can be installed directly on rotating shafts of elevator winding machines without couplings.
EP50S Series 50-mm-dia. Rotary Encoders
∅50mm Shaft type Absolute Rotary encoder with EP50S Series realizes high resolution up to 1024 divisions and various output codes including BCD, Binary and Gray Code with compact design. It is mostly applied to industrial precision instruments, textile machineries, robots and parking facilities.
GP-S070 Series Graphic Panels
GP-S070 Series realizes high visibility by adopting 7" Wide TFT LCD monitor with True Color (16.7 million colors) and various data application ranges. In addition, analog touch type monitor allows more diverse tag arrangement possible comparing to matrix touch type; its data logger function makes possible to support various data collect and back-up, as well. Wide range of interface support including Ethernet and USB Host / Device is another feature of GP-S070 Series to increase user convenience.
