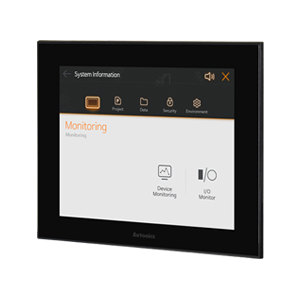

The GP-A104 series graphic panels are 10.4-inch widescreen TFT LCD graphic HMIs offering excellent visibility and data management capability. The resistive touchscreen (analog touch) allows flexible tag arrangements, and the data logger function allows data storing and backup from various control devices. The units can be installed horizontally or vertically, and also feature support for various connection interfaces including USB Host/Device, Ethernet, and CAN
Various communication interface support: RS232C, RS422/485, Ethernet, CAN
Device monitoring of connected device possible without screen data
Multi-language table feature allows users to switch languages with a single button
atDesigner screen editor software provided
- Various support functions, extensive image library
- Convenient user interface
10.4-inch TFT LCD True Color display capable up to 16,777,216 color variations
Resistive touchscreen allows operation with bare hands, gloved fingers, or stylus

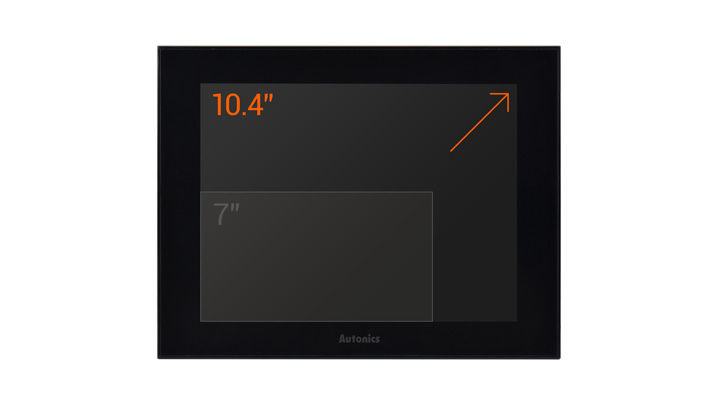

10.4-Inch Display
The large 10.4-inch display allows users to see more menus, switches, data logs, and other important information on a single screen

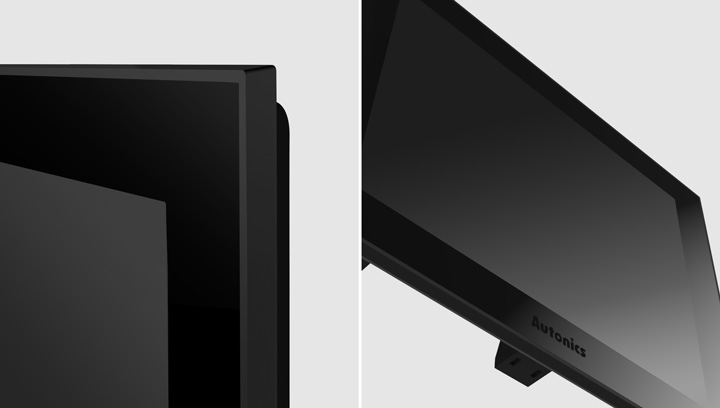

Elegant and Stylish Design
The HMI features an elegant and stylish design with black bezels and hidden logo

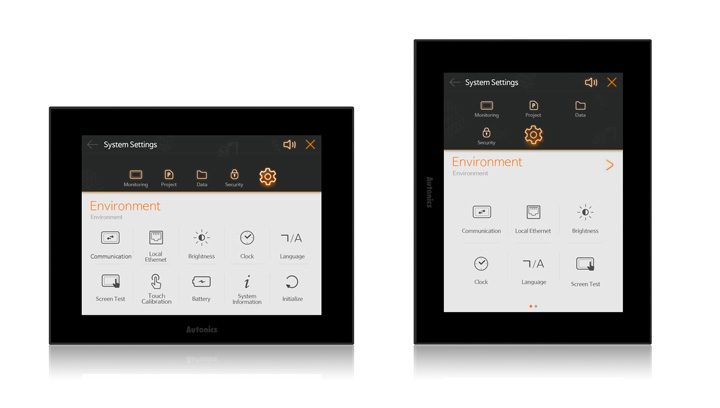

Horizontal or Vertical Installation Depending on User Needs
The panels can be installed horizontally or vertically depending on user needs or applications, offering high installation flexibility.

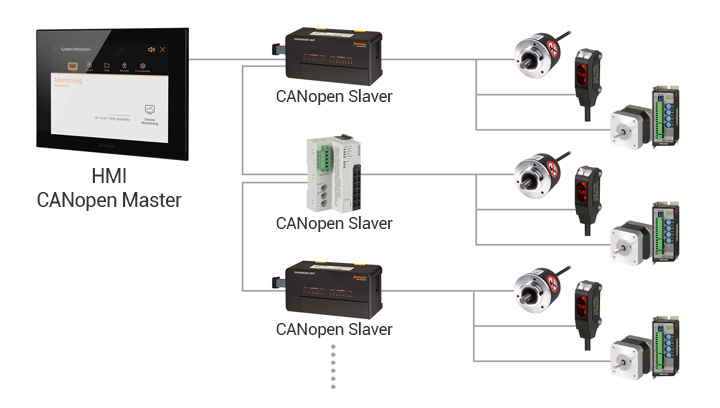

CAN Communication
The GP-A104 series can be set as a Master device with CANopen communication protocol to connect multiple I/O devices. Autonics ARD Series and ARIO(DeviceNet models) series I/O can be used as slavedevices.

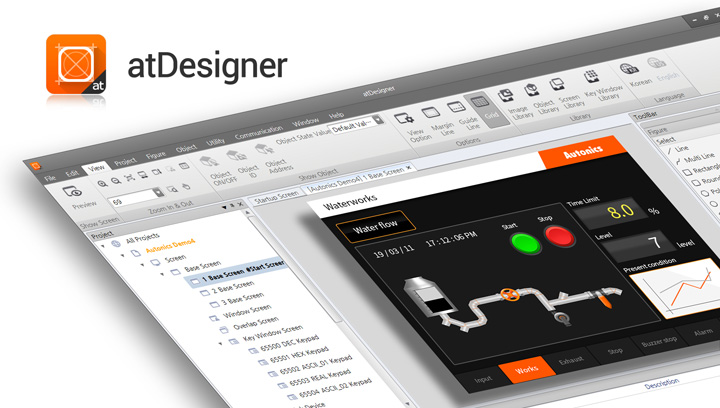

atDesigner Screen Editor Software with User Oriented UI/UX Design
All data on the GP screen can be edited using the dedicated screen editor software atDesigner. The user oriented UI/UX design allows users to easily utilize all features on the software.

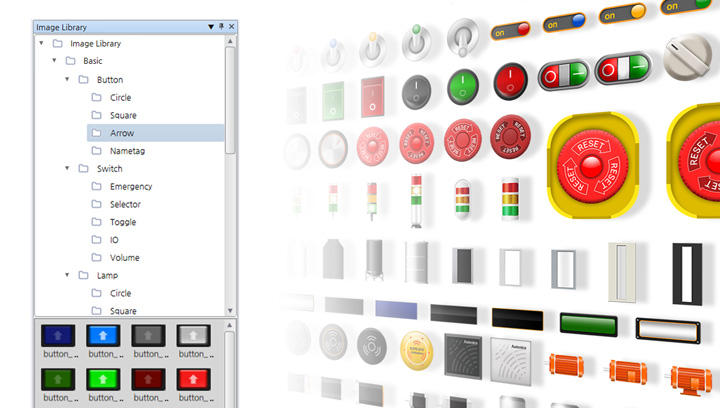

The image library can be upgraded to create more realistic looking screen layouts.
