Mitsubishi, GOT2000 GT25

last update: July 5, 2021

GOT2000 widescreen expands your view

Various interfaces are equipped in a compact body.
The GOT wide model embodies the ideal features of HMI.

✔ Improve visibility and operation of your application with GOT wide model

✔ Convey information easily and reliably with sound

✔ GOT Smart Web-based Remote Solutions

✔ GOT Easy Drive Control Interactive Solutions

✔ Easily connect to various industrial devices

Feature

Various interfaces are equipped in a compact body

The stylish design realized with a narrow bezel. The GOT2000 wide models are available in a choice of silver and black.
Two Ethernet ports and the built-in sound output interface* equipped as standard add value to your system.
* A speaker with built-in amplifier is required separately.

Ultra high resolution WXGA:
1280 × 800 dots
*12.1 inch model, 10.1 inch model

Two Ethernet ports are equipped as standard

Built-in sound output interface

Support wireless LAN communication unit

Item	Specifications
Item	GT2512-WXTBD [NEW] GT2512-WXTSD [NEW]	GT2510-WXTBD GT2510-WXTSD	GT2507-WTBD GT2507-WTSD
Display	12.1" widescreen, TFT color LCD, 65536 colors	10.1" widescreen, TFT color LCD, 65536 colors	7" widescreen, TFT color LCD, 65536 colors
Resolution	WXGA 1280 × 800 dots		WVGA 800 × 480 dots
Backlight	White LED
User memory	Memory for storage (ROM): 32 MB Memory for operation (RAM): 128 MB
Standard interface	Ethernet (2 ports), RS-232, RS-422/485 USB host (USB-A): 1 channel (USB 2.0 (High-Speed 480 Mbps)) USB device (USB Mini-B): 1 channel (USB 2.0 (High-Speed 480 Mbps)) Sound output interface (φ3.5 minijack) SD memory card interface
Extension interface	-
Wireless LAN communication unit interface	For installing a wireless LAN communication unit

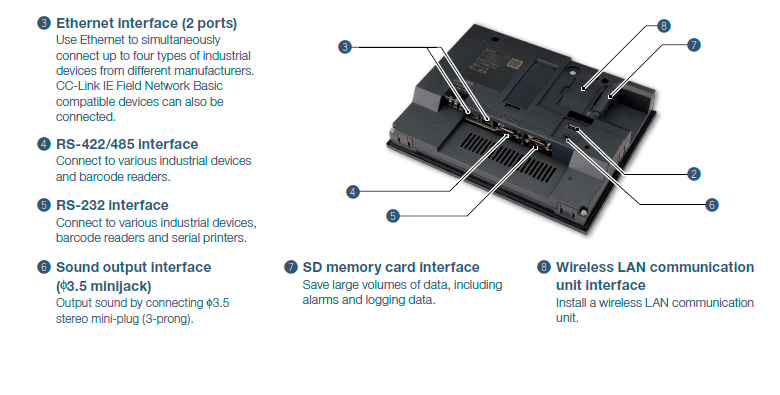

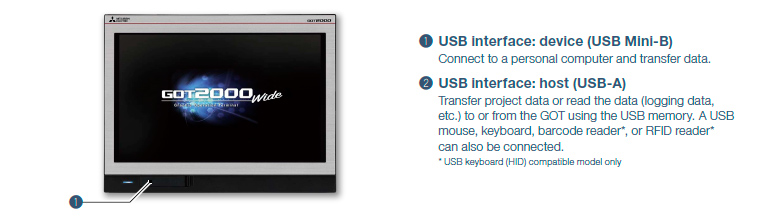

GT25 wide model external appearance [front face/rear face] *10.1 inch model

Ultra high resolution display improves expressiveness

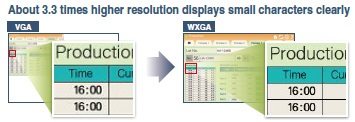

Ultra high resolution WXGA screen* displays necessary and sufficient information on one screen. Small characters can be displayed clearly.
* WXGA display on the 12.1 inch model and 10.1 inch model. WVGA display on the 7 inch model.

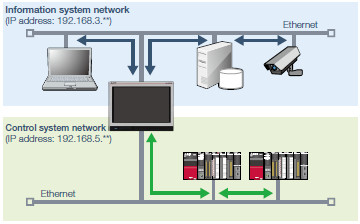

Enable separation of information and control system networks

Two Ethernet ports physically separate the information system network in the office from the control system network at the production site. The network architecture becomes safer and more secure by setting different IP addresses for each network.

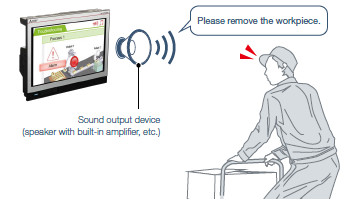

Add value to your system with sound notification

The built-in sound output interface makes it easy to implement the sound notification system. Not only by displaying the contents of events on the screen but also by notifying with sound, you can convey the necessary information to the operators.

Wireless network makes remote maintenance easy

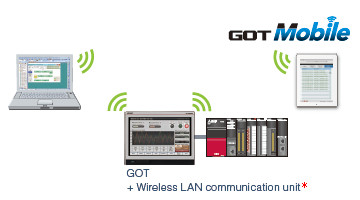

Installing the wireless LAN communication unit on GOT enables wireless LAN connection between a personal computer and the GOT*. In addition to transferring project data, you can use the FA transparent function, the GOT Mobile function, and others.
* A separate access point can also be used.

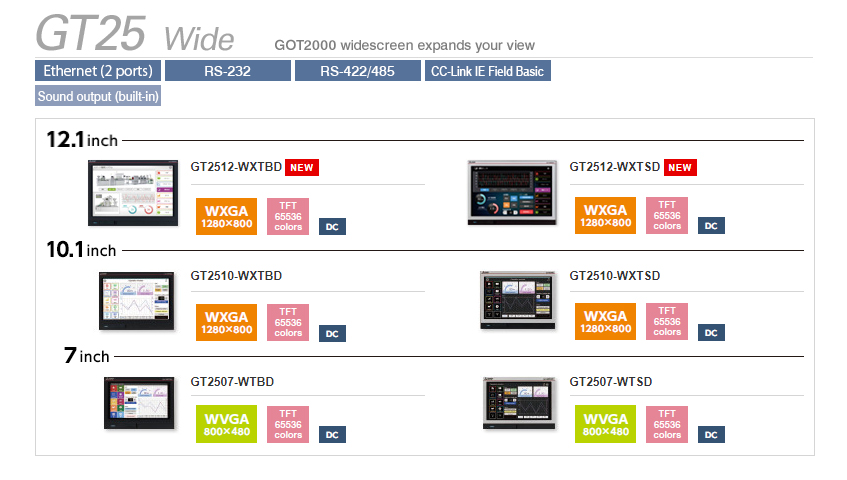

GT25 wide map

last update: July 5, 2021

General specifications

Item	Specifications
Operating ambient temperature *1	0 ℃ to 55 ℃ *5
Storage ambient temperature	-20 ℃ to 60 ℃
Operating ambient humidity	10% RH to 90% RH, non-condensing
Storage ambient humidity	10% RH to 90% RH, non-condensing
Vibration resistance	Compliant with JIS B 3502 and IEC 61131-2		Frequency	Acceleration	Half amplitude	Sweep count
		Under intermittent vibration	5 to 8.4 Hz	-	3.5 mm	10 times in each X, Y, or Z direction
		Under intermittent vibration	8.4 to 150 Hz	9.8 m/s²	-	10 times in each X, Y, or Z direction
		Under continuous vibration	5 to 8.4 Hz	-	1.75 mm	-
		Under continuous vibration	8.4 to 150 Hz	4.9 m/s²	-	-
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s² (15G), 3 times in each X, Y, or Z direction)
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude *2	2000 m or less
Installation location	Inside control panel
Overvoltage category *3	Ⅱ or less
Pollution degree *4	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm² or more. If impossible, connect the ground cable to the control panel.

*1 Includes the temperature inside the enclosure of the control panel to which the GOT is installed.
*2 Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
*3 This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.
*4 This indicates the occurrence rate of conductive material in an environment where a device is used. Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.
*5 When a protective cover for oil is mounted on the GOT, the maximum operating ambient temperature must be 5℃ lower than the one described in the general specifications.

Power supply specifications

Item		Specifications
Item		GT2512-WXTBD GT2512-WXTSD	GT2510-WXTBD GT2510-WXTSD	GT2507-WTBD GT2507-WTSD
Power supply voltage		24 V DC (+25%, -20%)
Power consumption	Under the maximum load	20 W or less	16 W or less
	Main unit	14 W	9 W
	Main unit (backlight OFF)	8 W	5 W
Inrush current		59 A or less (2 ms, ambient temperature: 25 ℃, under the maximum load)
Permissible instantaneous power failure time		5 ms or less
Noise immunity		Noise voltage: 500 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 25 Hz to 60 Hz
Withstand voltage		350 V AC for 1 minute across power terminals and earth
Insulation resistance		500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester

Operate and store the GOT in environments without direct sunlight, high temperature, dust, humidity, and vibrations.

Performance specifications

Item		Specifications
Item		GT2512-WXTBD	GT2512-WXTSD	GT2510-WXTBD	GT2510-WXTSD	GT2507-WTBD	GT2507-WTSD
Display section 12	Display device	TFT color LCD
	Screen size	12.1" widescreen		10.1" widescreen		7" widescreen
	Resolution	WXGA: 1280 × 800 dots				WVGA: 800 × 480 dots
	Display size	261.12(10.28) (W) × 163.2(6.43) (H) mm(inch)		216.96(8.54) (W) × 135.6(5.34) (H) mm(inch)		152.40(6.00) (W) × 91.44(3.60) (H) mm (inch)
	Number of displayed characters	16-dot standard font: 80 characters × 50 lines (two-byte characters) 12-dot standard font: 106 characters × 66 lines (two-byte characters)				16-dot standard font: 50 characters × 30 lines (two-byte characters) 12-dot standard font: 66 characters × 40 lines (two-byte characters)
	Display color	65536 colors
	Brightness adjustment	32 levels
	Backlight	LED (Not replaceable)
	Backlight life *4	Approx. 50000 h (operating ambient temperature: 25℃, display intensity: 50%)
Touch panel 311	Type	Analog resistive film
	Key size	Minimum 2 × 2 dots *8 (per key)
	Simultaneous press	Not available *5 (Only 1 point can be touched.)
	Life	1 million touches or more (operating force: 0.98 N or less)
Panel color		Black	Silver *10	Black	Silver *10	Black	Silver *10
User memory	User memory capacity	Memory for storage (ROM) *12: 32 MB Memory for operation (RAM): 128 MB
User memory	Life (number of write times)	100000 times
Built-in clock precision		±90 seconds/month (ambient temperature: 25 ℃)
Battery		GT11-50BAT lithium battery
	Data to be backed up	SRAM data, clock data, system status log data
	Life	Approx. 5 years (ambient temperature: 25 ℃)
Built-in interface	RS-232	1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps Connector shape: D-sub 9-pin (male)
	RS-422/485	1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps Connector shape: D-sub 9-pin (female)
	Ethernet	2 channel Data transfer method: 100BASE-TX, 10BASE-T Connector shape: RJ-45 (modular jack) AUTO MDI/MDI-X
	USB (host)	1 channel (rear face)
	USB (host)	USB version: USB 2.0 (High-Speed 480 Mbps) Connector shape: USB-A
	USB (device)	1 channel (front face)
	USB (device)	USB version: USB 2.0 (High-Speed 480 Mbps) Connector shape: USB Mini-B
	SD memory card *12	1 channel, SDHC compliant (maximum 32 GB)
	Wireless LAN communication unit interface	For installing a wireless LAN communication unit
	Sound output interface	1 channel, WAV format (16 bits, 8.000 kHz/16.000 kHz, monoral) applicable plug: Φ3.5 stereo mini-plug (3-prong)
Buzzer output		Single tone (tone and tone length adjustable)
POWER LED		2 colors (blue and orange)
Protective structure *6		Front: IP67F 79 Inside control panel: IP2X
Safety standards, radio laws		CE, UL, cUL, EAC, KC (as of March 2021)
Maritime certifications		ABS/BV/DNV/LR/NK/RINA (as of March 2021)

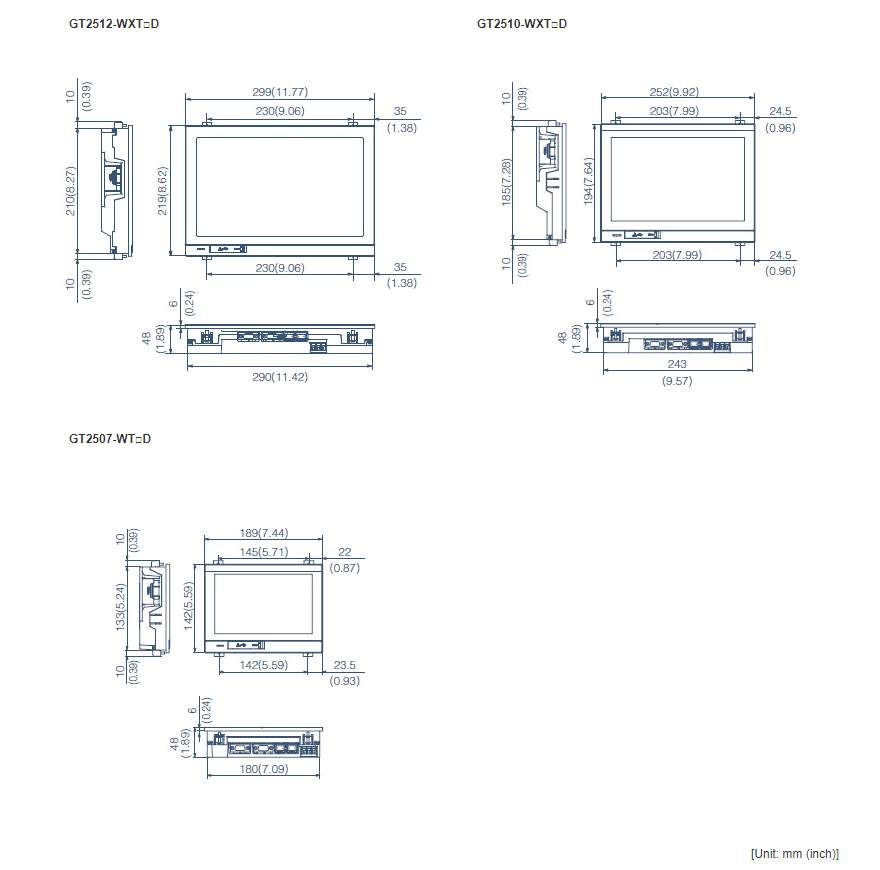

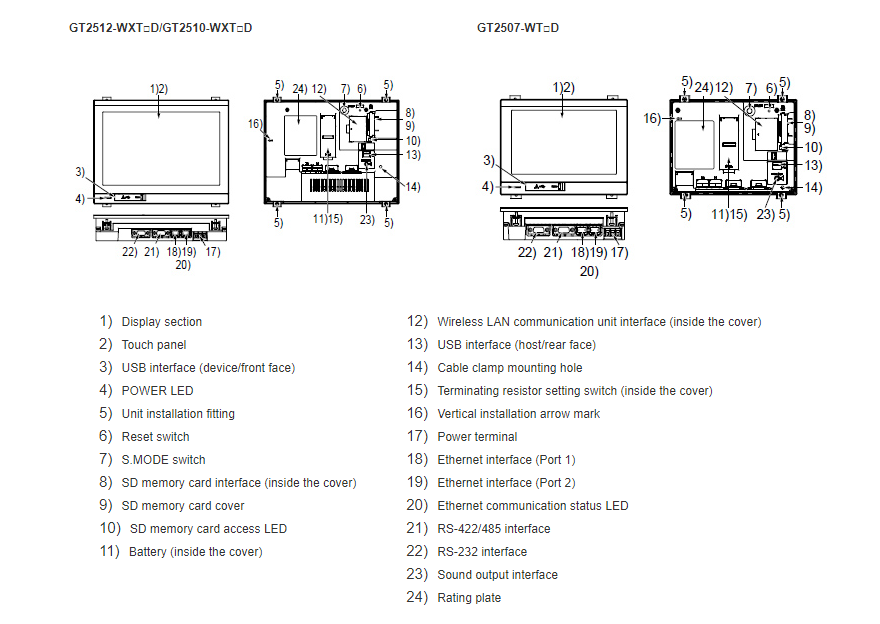

External dimensions		299(11.77) (W) × 219(8.62) (H) × 48(1.89) (D) mm(inch)		252(9.92) (W) × 194(7.64) (H) × 48(1.89) (D) mm(inch)		189(7.44) (W) × 142(5.59) (H) × 48(1.89) (D) mm(inch)

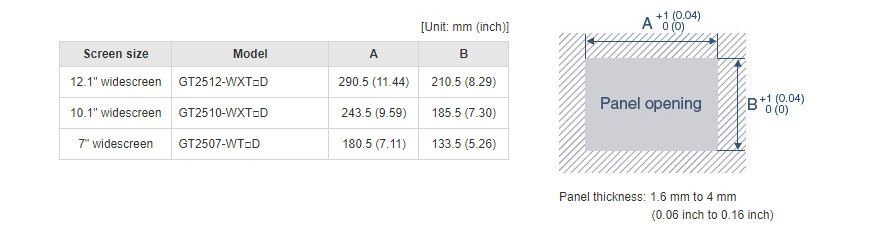

Panel cut dimensions		290.5(11.44) (W) × 210.5(8.29) (H) mm(inch)		243.5(9.59) (W) × 185.5(7.30) (H) mm(inch)		180.5(7.11) (W) × 133.5(5.26) (H) mm(inch)
Weight (excluding a fitting)		1.7(3.7) kg(lb)		1.2(2.6) kg(lb)		0.75(1.7) kg(lb)
Compatible software package		GT Works3 Version1.250L or later *13		GT Works3 Version1.215Z or later *13

*1 As a characteristic of liquid crystal display panels, bright dots (always lit) and dark dots (never lit) may appear on the panel. Since liquid crystal display panels comprise a great number of display elements, the appearance of bright and dark dots cannot be reduced to zero. Individual differences in liquid crystal display panels may cause differences in color, uneven brightness and flickering. Note that these phenomena are characteristics of liquid crystal display panels and it does not mean the products are defective or damaged.
*2 Flickering may occur due to vibration, shock, or the display colors.
*3 When a stylus is used, the touch panel has a life of 100 thousand touches. The stylus must satisfy the following specifications.
• Material: polyacetal resin • Tip radius: 0.8 mm or more
*4 To prevent the display section from burning in and lengthen the backlight life, enable the screen save function and turn off the backlight.
*5 If you touch two points or more simultaneously on the touch panel, a touch switch near the touched points may operate unexpectedly. Do not touch two points or more simultaneously on the touch panel.
*6 Note that the structure does not guarantee protection in all users′ environments. The GOT may not be used in certain environments where it is subjected to splashing oil or chemicals for a long period of time or soaked in oil mist.
*7 To conform to IP67F, close the USB environmental protection cover by pushing the USB mark firmly. (The GOT conforms to IP2X when the USB environmental protection cover is open.)
*8 The minimum size of a key that can be arranged. To ensure safe use of the product, the following settings are recommended.
• Key size: 16 × 16 dots or larger • Distance between keys: 16 dots or more
*9 The suffix "F" of IP67F is a symbol that indicates protection rate against oil. It is described in the Appendix of Japanese Industrial Standard JIS C 0920.
*10 The lower part of the panel including the USB environmental protection cover is black.
*11 Repeatedly touching the outer edge of the actual display area may cause the product to fail.
*12 While writing data to the memory for storage (ROM) or an SD memory card, if GOT is powered off, the data may be corrupted which may cause the GOT to stop operating.
*13 The supported version varies depending on the GOT model. To use new functions, GT Works3 Version1.250L or later is required.
