Autofocus Code Reader
VHV5 Series
Brand:
The VHV5 has built-in internal lighting 10 times more powerful than the MicroHAWK line of readers, as well as a 2.3 MP global shutter sensor running at 80 frames per second, and a 5 MP global shutter sensor running at 40 frames per second. A powerful quad-core processor with built-in NPU allows for near-frame rate reading speeds in most applications.

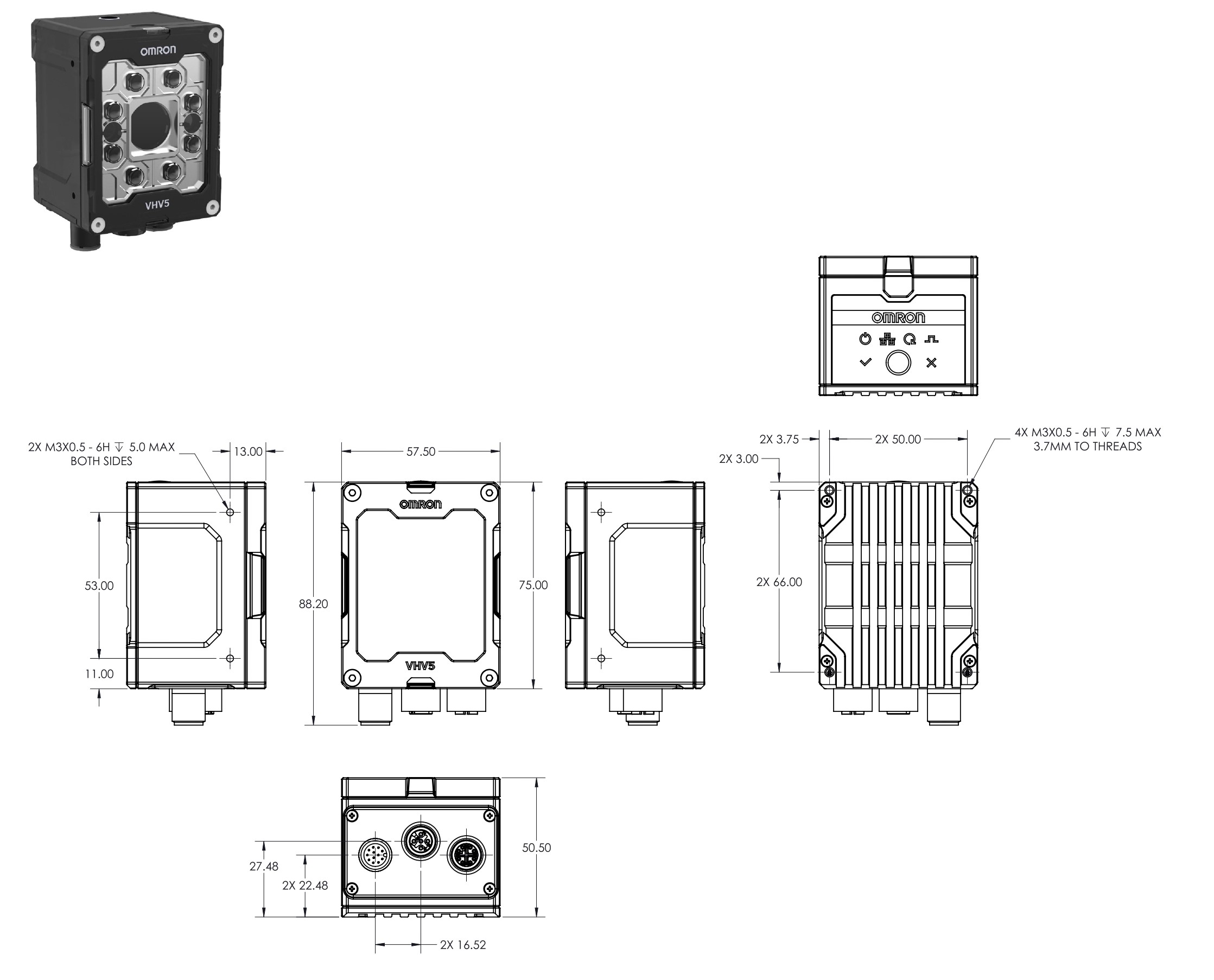

• Smallest reader in its class.

• High-end multi-core processor (including NPU for AI). 13 times the processing power of the MicroHAWK

• 2.3 MP (80 FPS) and 5 MP (40 FPS) global shutter sensors.

• Four autofocus lens focal length choices to cover the widest range of applications.

• Highest-power lighting on the market today.

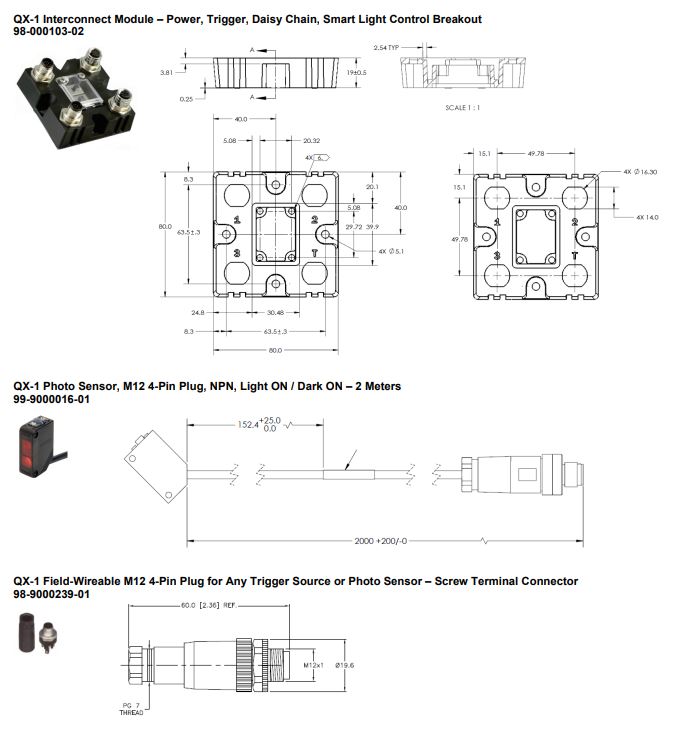

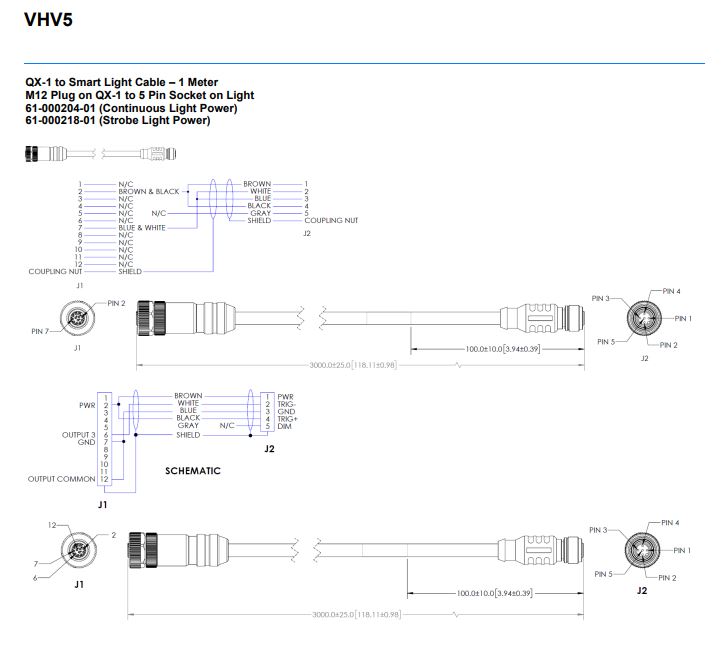

• Third port for external lighting, compatible with most major machine vision light suppliers.

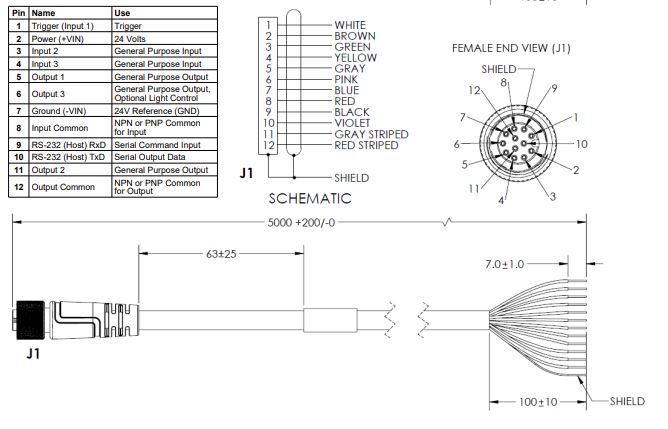

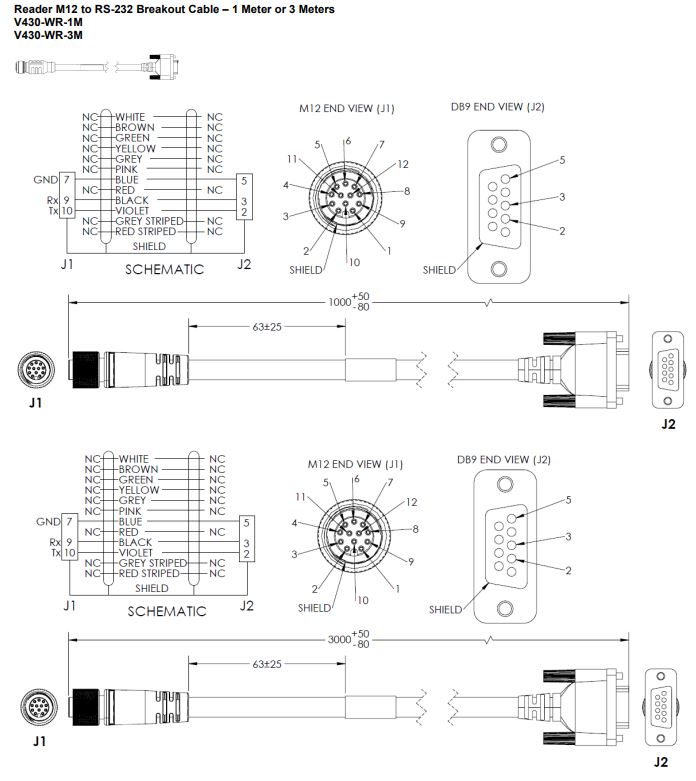

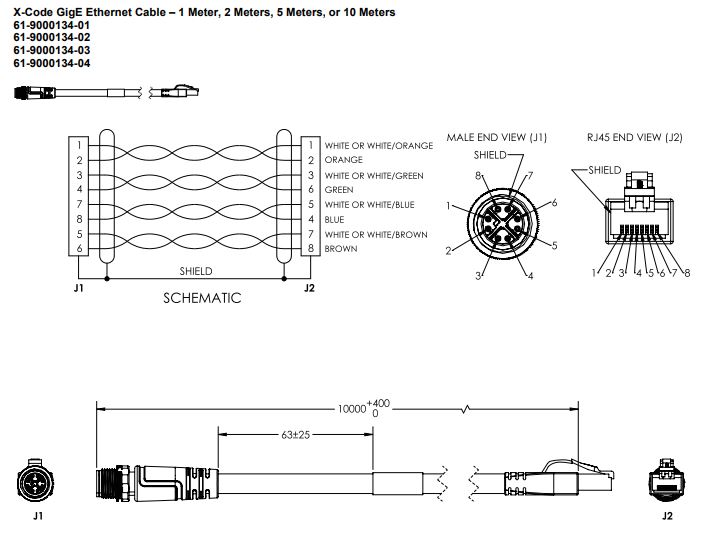

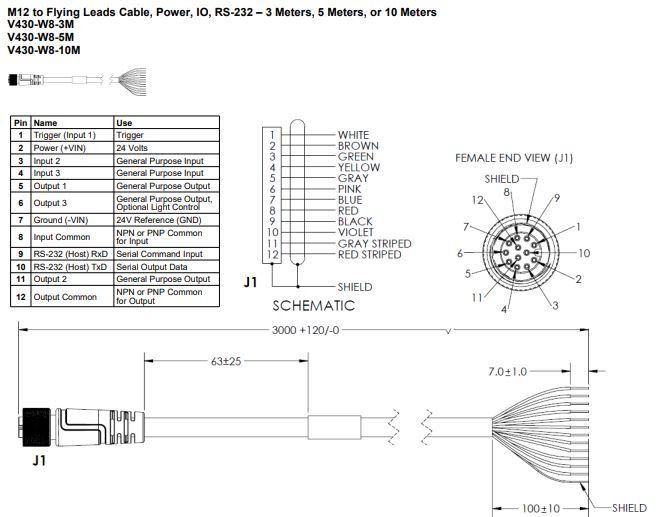

• Support for digital I/O, RS-232, Ethernet TCP/IP, EtherNet/IP™, and PROFINET communications.

• IP65/67-rated.

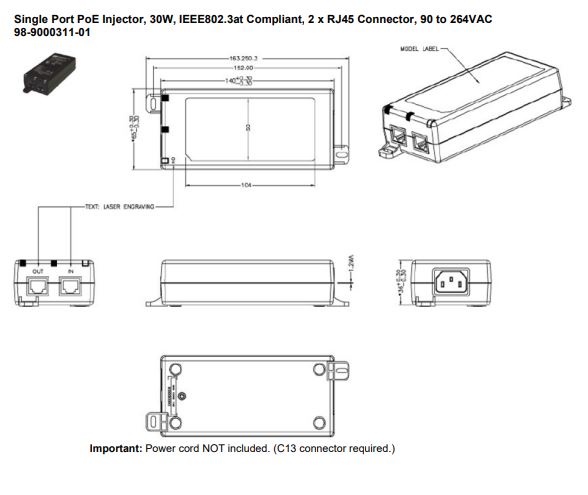

• PoE+ or direct 24V power.

TITLE DOCUMENT TYPE SIZE
VHV5 catalogue
 Catalogue 3512KB
