Omron, E3AS Series

last update: October 15, 2019

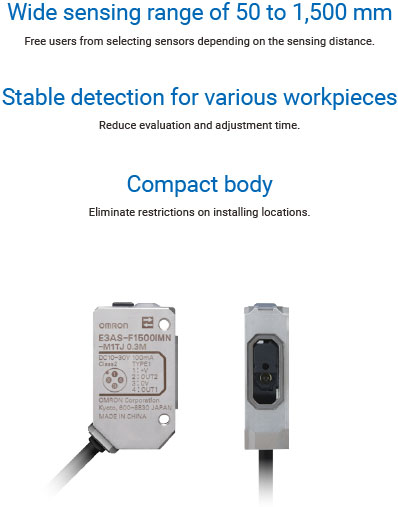

Use reflective photoelectric sensors in entirely new ways.

Conventional reflective photoelectric sensors have issues that may limit their range of application, such as their short sensing distances, possible false detection due to the effect of workpiece colors, and their large sizes.
The E3AS-F Series adopts the TOF method, which effectively resolves these issues for increased versatility. E3AS-F Sensors can be used, for example, in high-mix conveyor lines carrying products of various colors and shapes, and assembly lines with restricted space for sensor installation.
Note: Pre-wired Models and M8/M12 Pre-wired Connector Models will be coming soon.

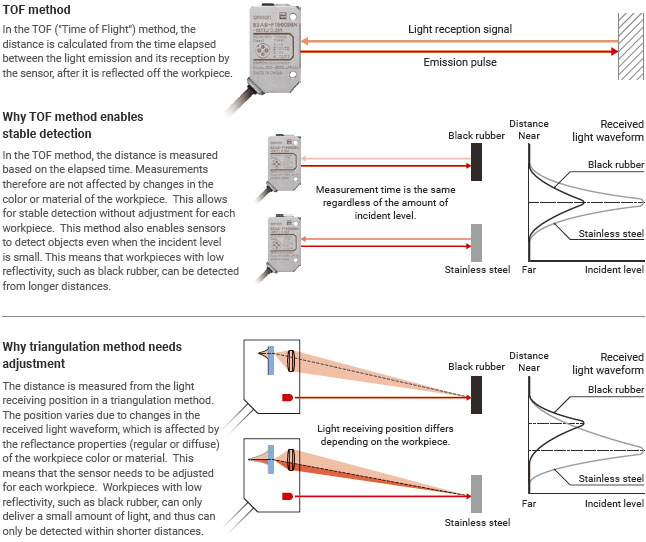

TOF method to stably detect various workpieces

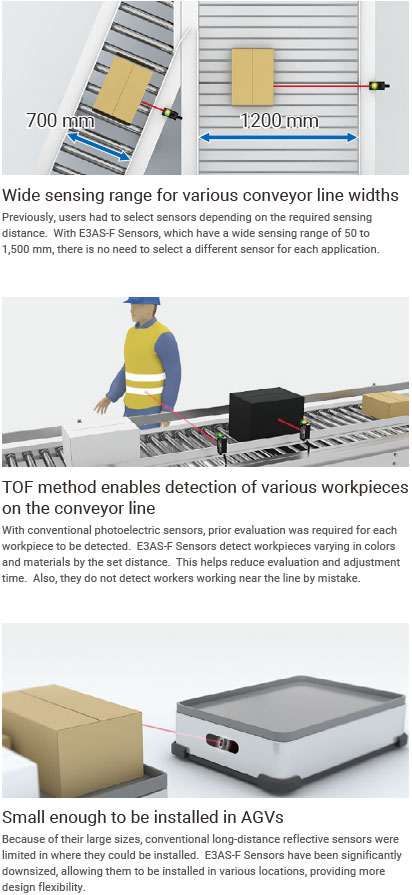

Design diverging and converging conveyor lines with a single model

E3AS-F Sensors can detect workpieces by the set distance regardless of their colors or materials, reducing the time required for evaluation and adjustment of each workpiece. Compared to through-beam and retro-reflective models, they require half the work to install, significantly saving setup time.

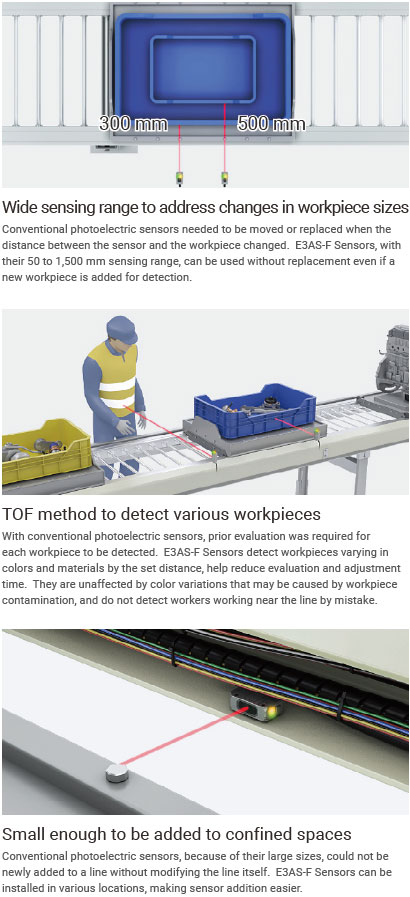

Free from installation restrictions on assembly lines

Previously, installing sensors in the assembly area ran the risk of their colliding with tools and workpieces, causing sensor failures or optical axis misalignment, both of which would lead to false detections. E3AS-F Sensors, with their long sensing distances, can detect objects from outside the assembly area, effectively reducing the frequency of line stoppages caused by unnecessary problems.

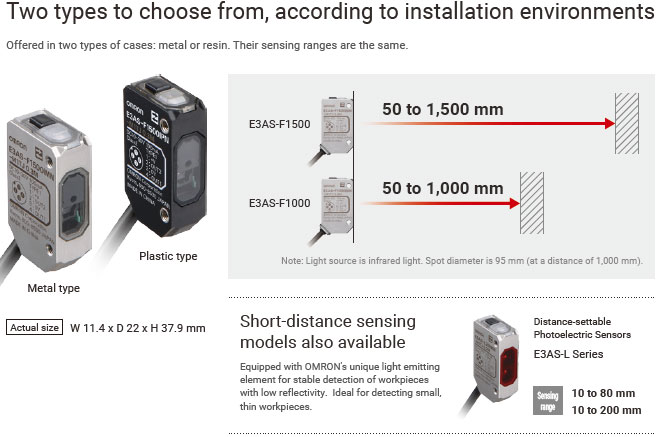

Their compact size allows them to be installed in various locations.

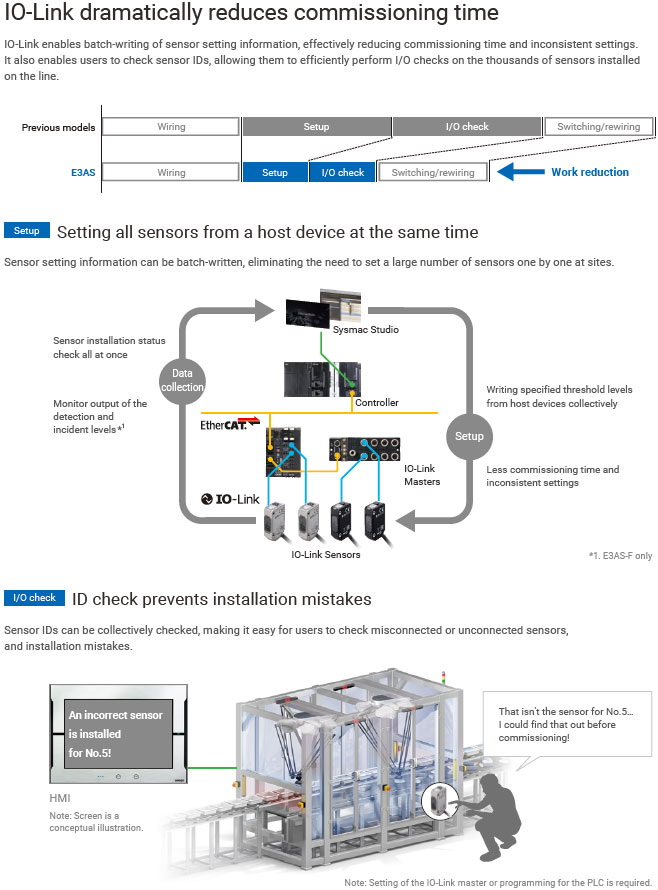

Reduce selection/commissioning time

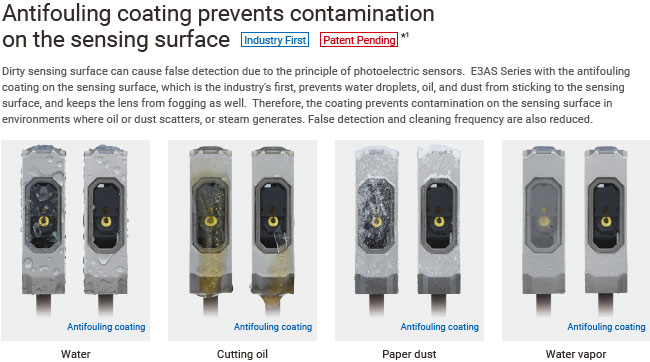

Reduce sensor cleaning time and replacement frequency

Reduce commissioning and change overtime

last update: October 15, 2019

E3AS-F Series
E3AS-L Series

last update: October 1, 2019

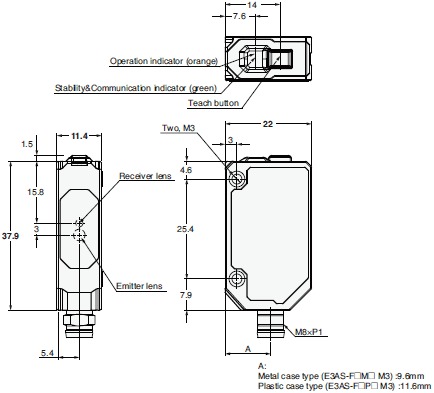

E3AS-F Series

Sensing method			TOF (Time of flight)
Type			Metal case ([]: M), Plastic case ([]: P)
Model		NPN output	E3AS-F1500I[]N	E3AS-F1000I[]N
		PNP output/ COM2	E3AS-F1500I[]D	E3AS-F1000I[]D
		PNP output/ COM3	E3AS-F1500I[]T	E3AS-F1000I[]T
Sensing distance			50 mm to the set distance (White paper or black paper 200 × 200 mm)	50 mm to the set distance (White paper or black paper 200 × 200 mm)
Setting range			100 to 1,500 mm (White paper 200 × 200 mm) 100 to 1,000 mm (Black paper 200 × 200 mm)	100 to 1,000 mm (White paper 200 × 200 mm) 100 to 500 mm (Black paper 200 × 200 mm)
Spot diameter (reference value)			95 mm dia. (at distance of 1,000 mm)
Differential travel			15% max. of set distance (Set distance 200 mm min.)
Reflectivity characteristic (black/white error)			10% max. of set distance (Set distance 200 mm min.)
Light source (wavelength)			Infrared laser (940 nm) Class1 (IEC/EN60825-1:2014)
Power supply voltage			10 to 30 VDC (including 10% ripple (p-p)), Class2
Current consumption			30 mA max.
Input/ output	Control output		Load power supply voltage: 30 VDC max., Class2, Load current: 100 mA max. (Residual voltage: Load current of less than 10 mA: 1 V max. Load current of 10 to 100 mA: 2 V max.) Open-collector output (NPN/PNP output depending on model)
		NPN	OUTPUT 1: NO (Normally open), OUTPUT 2: NC (Normally closed)
		PNP/COM2 PNP/COM3	OUTPUT 1: NO (Normally open)/COM[], OUTPUT 2: NC (Normally closed)
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			Operate or reset: 150 ms max.	Operate or reset: 90 ms max.
Distance setting			Teaching method/IO-Link communications
Ambient illumination (Receiver side)			Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -20 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range			Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance			20 MΩ min. at 500 VDC
Dielectric strength			1,000 VAC, 50/60 Hz for 1 min
Vibration resistance			10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance			500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection			IP67 (IEC60529) and IP67G *1 (JIS C 0920 Annex 1), IP69K (ISO20653)
Indicators			Operation indicator (orange), stability/communication indicator (green 2) 2. IO-Link mode: blinking
Connection method			M8 Connector
Weight (packed state/Sensor only)			Metal case type: Approx. 75 g/approx. 30 g Plastic case type: Approx. 60 g/approx. 15 g

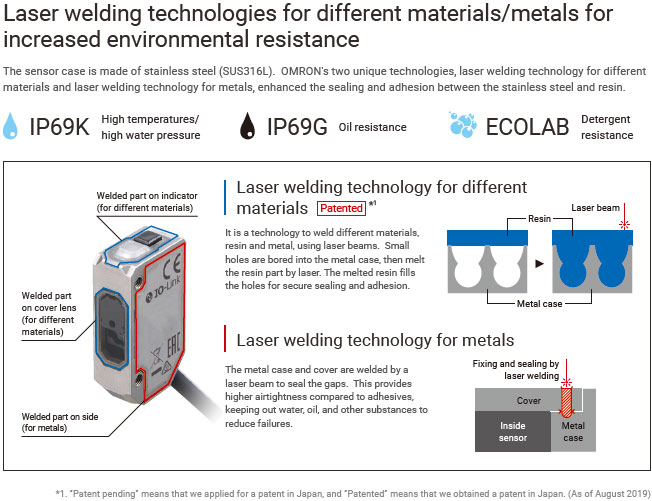

Materials	Case		Metal case type: Main unit/mounting part/connector part Stainless steel (SUS316L) Plastic case type: Main unit Polybutylene terephthalate (PBT) /polycarbonate (PC), Mounting part/connector part Nickel-plated brass
	Lens		Methacrylate resin (PMMA)
	Display		Metal case type: Polyamide 11 (PA11) Plastic case type: Polyethersulfone (PES)

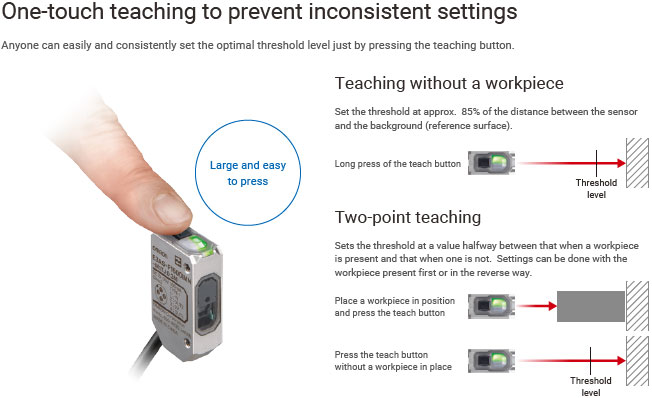

Main IO-Link functions			Operation mode switching between NO and NC, execution of teaching (2-point teaching, teaching without workpiece), setup of the threshold, timer function of the control output and timer time selecting, monitor output (Detection level, Incident light level), Restore Factory Settings, Key Lock (Unlock, Lock, Lock (No Button))
IO-Link Communi- cation specifica- tions	IO-Link specification		Ver. 1.1
	Baud rate		COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length		PD size: 4 bytes, OD size: 1 byte (M-sequence type: TYPE_2_V)
	Minimum cycle time		COM2: 3.5 ms, COM3: 1.2 ms

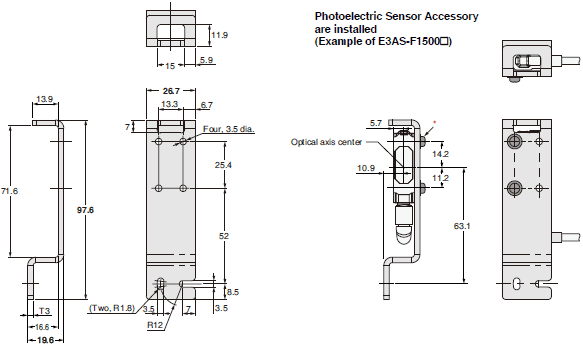

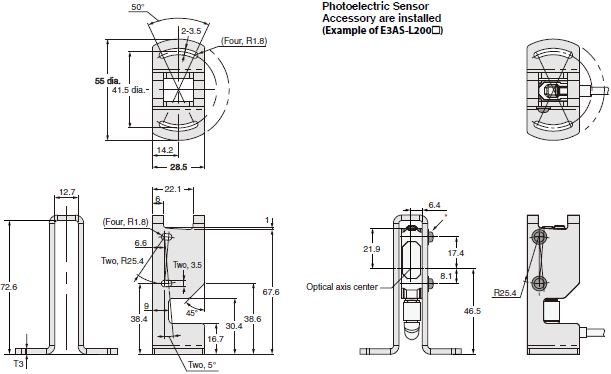

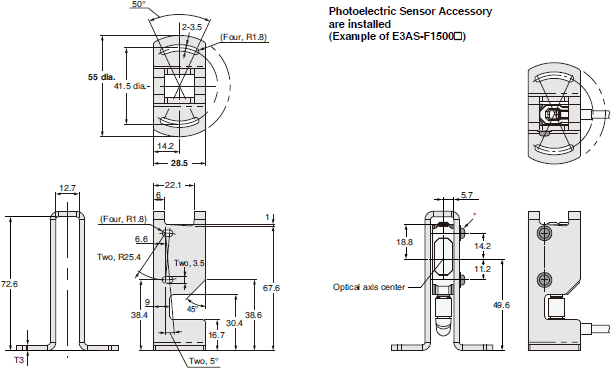

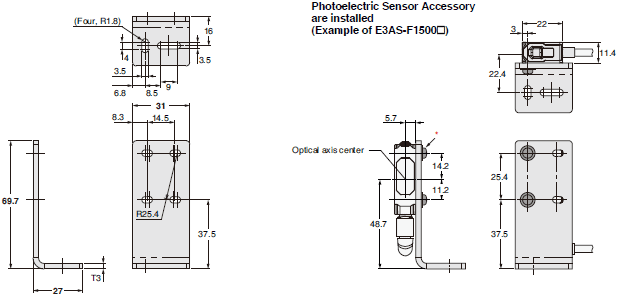

Accessories			Instruction manual, compliance sheet, index list (attached for IO-Link type only) and FDA certification label, Note: Mounting Brackets must be ordered separately.

*1. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance
to oil.

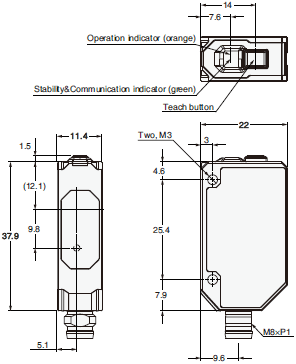

E3AS-L Series

Sensing method			Distance-settable
Model		NPN output	E3AS-L200MN	E3AS-L80MN
		PNP output/ COM2	E3AS-L200MD	E3AS-L80MD
		PNP output/ COM3	E3AS-L200MT	E3AS-L80MT
Sensing distance			10 mm to the set distance (White paper or black paper 100 × 100 mm)
Setting range			40 to 200 mm (White paper or black paper 100 × 100 mm)	20 to 80 mm (White paper or black paper 100 × 100 mm)
Spot diameter (reference value)			25 × 25 mm at distance of 200 mm	4 mm dia. (at distance of 80 mm)
Differential travel			10% max. of set distance	White paper: 2% max. of set distance Black paper: 5% max. of set distance
Reflectivity characteristic (black/white error)			10% max. of set distance	5% max. of set distance
Light source (wavelength)			Red LED (624 nm)	Red LED (650 nm)
Power supply voltage			10 to 30 VDC (including 10% ripple (p-p)), Class2
Current consumption			35 mA max.
Input/ output	Control output		Load power supply voltage: 30 VDC max., Class2, Load current: 100 mA max. (Residual voltage: Load current of less than 10 mA: 1 V max. Load current of 10 to 100 mA: 2 V max.) Open-collector output (NPN/PNP output depending on model)
		NPN	OUTPUT 1: NO (Normally open), OUTPUT 2: NC (Normally closed)
		PNP/COM2 PNP/COM3	OUTPUT 1: NO (Normally open)/COM[], OUTPUT 2: NC (Normally closed)
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			Operate or reset: 1 ms max.
Distance setting			Teaching method/IO-Link communications
Ambient illumination (Receiver side)			Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range			Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance			20 MΩ min. at 500 VDC
Dielectric strength			1,000 VAC, 50/60 Hz for 1 min
Vibration resistance			10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance			500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection			IP67 (IEC60529) and IP67G *1 (JIS C 0920 Annex 1), IP69K (ISO20653)
Indicators			Operation indicator (orange), Stability & Communication indicator (green 2) 2. IO-Link Communication mode: blinking
Connection method			M8 Connector
Weight (packed state/Sensor only)			Approx. 75 g/approx. 30 g
Materials	Case		Stainless steel (SUS316L)
	Lens		Methacrylate resin (PMMA)
	Display		Polyamide 11 (PA11)
Main IO-Link functions			Operation mode switching between NO and NC, execution of teaching (2-point teaching, teaching without workpiece), setup of the threshold, timer function of the control output and timer time selecting, Restore Factory Settings, Key Lock (Unlock, Lock, Lock (No Button))
IO-Link Communi- cation specifica- tions	IO-Link specification		Ver. 1.1
	Baud rate		COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length		PD size: 1 byte, OD size: 1 byte (M-sequence type: TYPE_2_1)
	Minimum cycle time		COM2: 3.5 ms, COM3: 1.2 ms

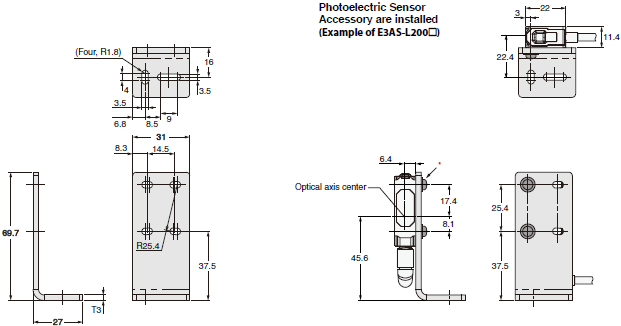

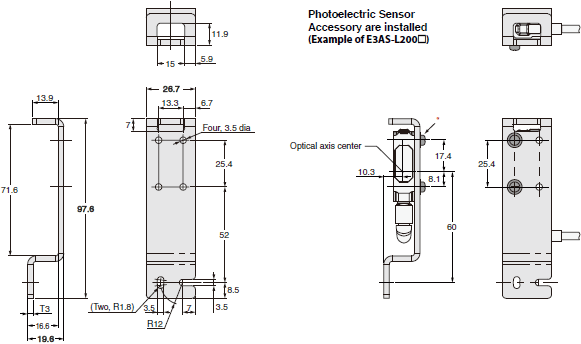

Accessories			Instruction manual, compliance sheet and index list (attached for IO-Link type only), Note: Mounting Brackets must be ordered separately.
