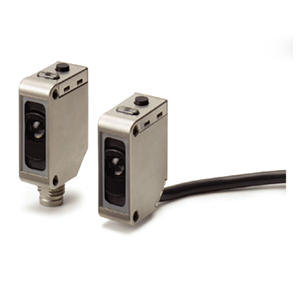

Omron, E3ZM-V Series

Color Mark Sensors Now Join the E3ZM Series of Photoelectric Sensors for the Food Industry

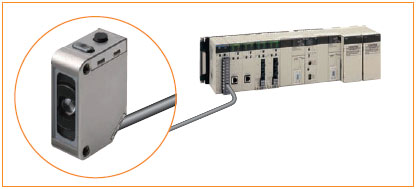

Space-saving Design with an SUS316L Housing (E3ZM Standard Size)

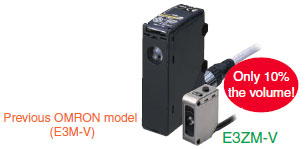

The compact design reduces volume by 90% compared with previous OMRON models.

And the world-standard dimensions contribute to standardized installation specifications.

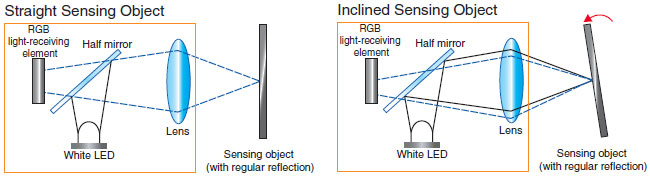

Coaxial Optical System in a Compact Design

Although the E3ZM-V is only 11 × 21 × 32 mm, it uses a coaxial optical system.

Even if the sensing object is inclined, reflected light is captured with the coaxial optical system to provide stable detection.

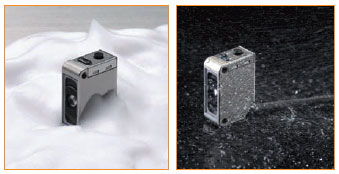

IP69K Degree of Protection with an SUS316L Housing (Same Durability as the E3ZM)

The housing is constructed of corrosion-resistant SUS316L, and the display cover is PES (polyethersulfone). Both materials are highly resistant to the effects of detergents and disinfectants. IP69K degree of protection also allows the E3ZM-V to withstand washing with high-temperature, high-pressure water. This makes the E3ZM-V well suited to use in sites requiring a high level of hygiene.

Cutting-edge Technologies Give This Color Mark Sensor Its Compact Size and Superior Performance.

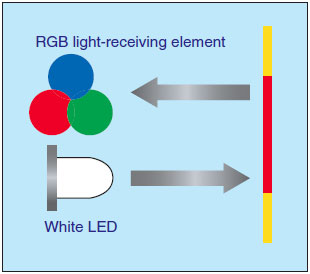

Improved Color-difference Discrimination, RGB Signal Processing

Discriminates fine color differences which was difficult for previous OMRON models.

Teaching enables automatic selection of ideal colors.

Plus, response is a fast 50 μs for both ON and OFF operation.
(Patent pending)

Easy Setting with 2-point and Automatic Teaching

2-point Teaching (Manual)

Simply aim the beam spot at the mark portion and background portion, and press the teaching button.

Automatic Teaching (Remote)

Send a pulse to the remote control input and have the mark pass by seven times for automatic teaching.
(Note: There is no answer-back output.)

Sensing method		Diffuse reflective (mark detection)
Model	NPN output	E3ZM-V61/-V66
Model	PNP output	E3ZM-V81/-V86
Sensing distance		12±2 mm *1
Sensing range		Depends on the combination of colors. Refer to Data Sheet.
Spot diameter		2-mm dia. max.
Light source (wavelength)		White LED (450 to 700 nm)
Power supply voltage		10 to 30 VDC, including 10% ripple (p-p)
Power consumption		750 mW max. (current consumption for a 30-V power supply voltage: 25 mA max.)
Control output		Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model)
Remote control input		NPN output ON: Short-circuit to 0 V, or 1.5 V max. (source current: 1 mA max.) NPN output OFF: Open or Vcc - 1.5 V to Vcc (leakage current: 0.1 mA max.) PNP output ON: Vcc - 1.5 V to Vcc (sink current: 1 mA max.) PNP output OFF: Open or 1.5 V max. (leakage current: 0.1 mA max.)
Operating modes		Set in the order of the teaching operation. *2
Protection circuits		Reversed power supply polarity, Load short-circuit protection, and Reversed output polarity protection
Response time		Operate or reset: 50 μs max.
Sensitivity adjustment		Teaching method
Ambient illumination		(Receiver side) Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range		Operating: -40 to 60°C (*3), Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. (at 500 VDC)
Dielectric strength		1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s² for 3 times each in X, Y, and Z directions
*Degree of protection 4**		IEC 60529: IP67, DIN 40050-9: IP69K
Connection method		Pre-wired cable (standard length: 2 m) or M8 4-pin connector
Indicator		Operating indicator (yellow), Stability indicator (green), and Teaching indicator (red)
Weight (packed state)		Pre-wired models (2-m cable): Approx. 85 g Connector models: Approx. 35 g
Materials	Housing	SUS316L
	Lens	PMMA (polymethylmethacrylate)
	Indication	PES (polyethersulfone)
	Buttons	Fluoro rubber
	Cable	PVC (polyvinyl chloride)
Accessories		Instruction sheet Note: Mounting Brackets are purchased separately.

*1. A deviation of ±2 mm (typical value) can be handled for combinations of white, yellow, and black. Refer to page 7 for the detection capabilities for other colors.
*2. Mark Sensor output switching:
When teaching, specify the ON color first and the OFF color second.
*3. Do not bend the cable in temperatures of −25°C or lower.
*4. IP69K Degree of Protection Specification
IP69K is a protection standard against high temperature and highpressure water defined in the German standard DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a specified nozzle shape at a rate of 14 to 16 liters/min. The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each at 0°, 30°, 60°, and 90° while rotating the test piece on a horizontal plane.

Standard Sensing Object for the Mark Sensor

Color	Munsell color notation
White	N9.5
Red	4R 4.5/12.0
Yellow-red	4YR 6.0/11.5
Yellow	5Y 8.5/11.0
Yellow-green	3GY 6.5/10.0
Green	3G 6.5/9.0
Blue-green	5BG 4.5/10.0
Blue	3PB 5.0/10.0
(Black)	(N2.0)

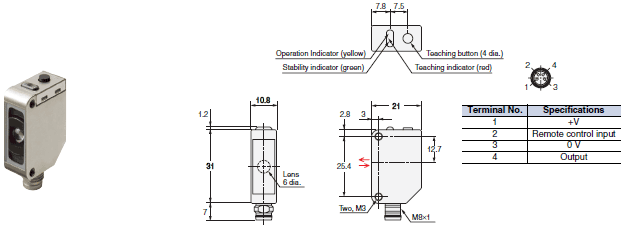

(Unit: mm)

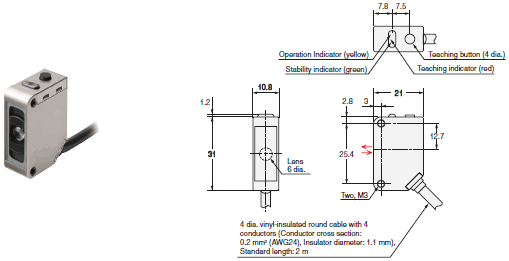

Mark Sensor (Diffuse reflective)
Pre-wired Models
E3ZM-V61
E3ZM-V81

Mark Sensor (Diffuse reflective)
M8 Connector
E3ZM-V66
E3ZM-V86
