2D 4-Channel Laser Scanners
LSE3 Series
Brand:
The LSE3 series LIDAR sensors feature up to 10 x 10 m detection area with a 90? detection angle to accurately detect object presence. The scanners support up to operation 4 channels and minimize malfunction with various filter functions and aluminum die-cast housing body. Users can use the LSE3 series with dedicated atLiDAR application, removing the need for separate remote controls.

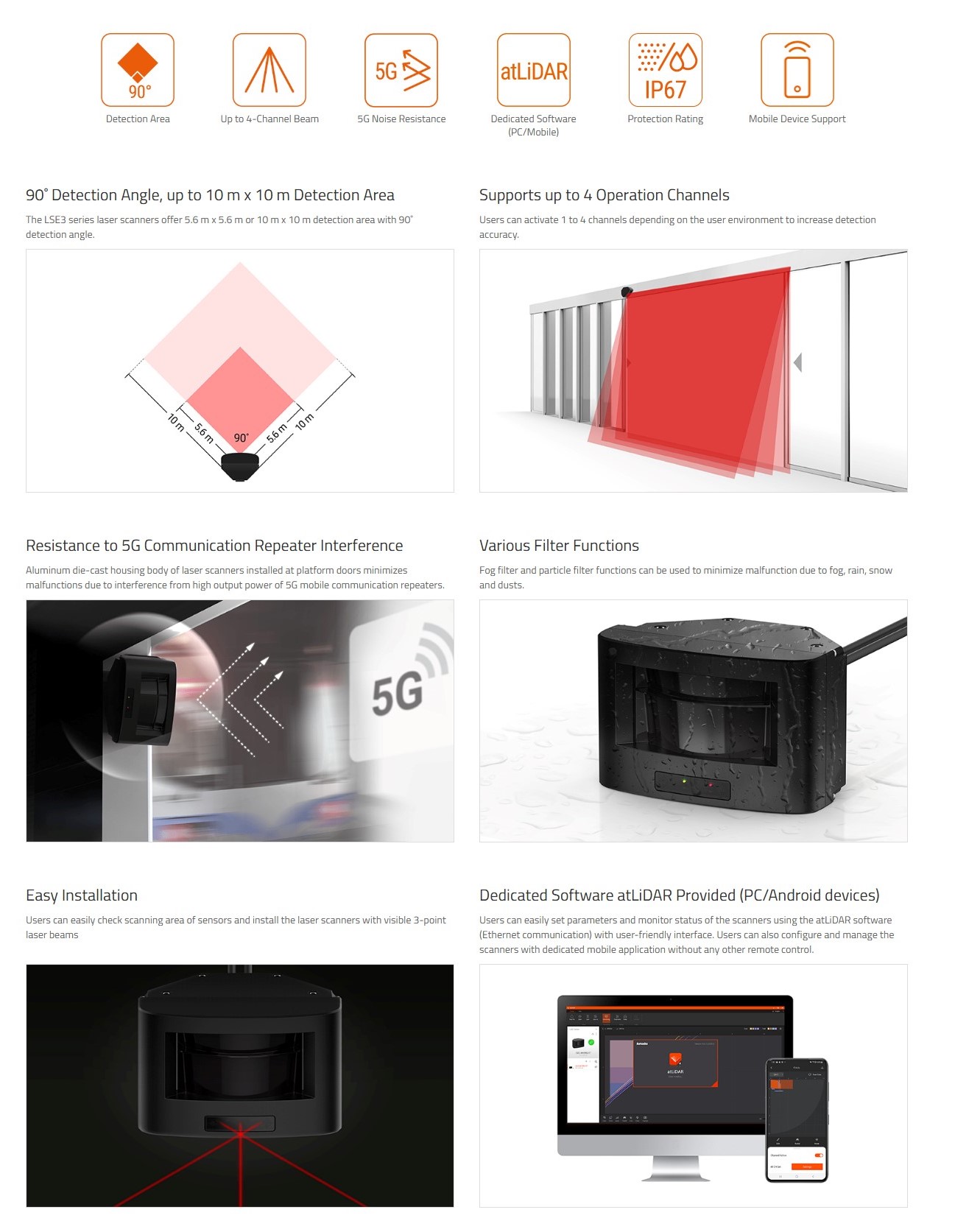

Features

  • 90° detection angle, up to 10 x 10 m detection area

  • Supports up to 4 channels

  • Aluminum die-cast housing minimizes interference from 5G communication repeaters

  • Various filter functions to prevent malfunction due to fog, rain, snow and dust

  • Operation indicator to identify operation status and errors : check status even in unstable conditions or change in installation location

  • Ethernet communication supported

  • Dedicated software atLiDAR provided : PC, Mobile (Android)

Feauture

TITLE DOCUMENT TYPE SIZE
LSE3-Series-Manual Manual 347 KB
LSE3-Series-Product-Manual Manual 812 KB
