Omron, G6D-F4B / G3DZ-F4B Series

• Almost the same size as PYF Socket: 31 x 35 x 68 mm (W x H x D)

• Each terminal circuit (with coil or contact) is independent from one another.

• Short Bar ensures easy connection of common and adjacent terminals.

• Provided with a terminal cover that prevents electric-shock accidents.

• Relay and MOS FET relay models are available.

• LED operation indicator.

• Built-in diode absorbs coil surge.

• Mounts either on DIN track or screws.

• Tool for easy mounting or removal of Relays provided.

• UL, CSA, and VDE certification for standard models (VDE: G6D-F4B only).

Ratings

Coil Ratings (per G6D Relay)

Rated voltage	Rated current	Coil resistance	Must operate voltage	Must release voltage	Max. voltage	Power consumption
12 VDC	18.7 mA	720 Ω	70% max. (see note 1)	10% min.	1.3	Approx. 200 mW
24 VDC	10.5 mA	2,880 Ω	70% max. (see note 1)	10% min.	1.3	Approx. 200 mW

Note: 1. The must operate voltage is 75% or less of the rated voltage if the Relay is mounted upside down.
    2. Rated current and coil resistance were measured at a coil temperature of 23°C with a tolerance of ±10%.
    3. Operating characteristics were measured at a coil temperature of 23°C.
   4. The maximum allowable voltage is the maximum value of the allowable voltage range for the relay coil operating power supply. There is no continuous allowance.
    5. The rated current includes the terminal’s LED current.

Contact Ratings (per G6D Relay)

Item	Resistive load (cosφ = 1)
Rated load	3 A at 250 VAC, 3 A at 30 VDC
Rated carry current	5 A
Max. switching voltage	250 VAC, 30 VDC
Max. switching current	5 A
Max. permissible capacity (reference value)	1,250 VA, 150 W
Error rate (reference value) (see note)	5 VDC, 10 mA

Note: This value is for a switching frequency of 120 times per minute.

Power MOS FET Relay Specifications

Input (per G3DZ Power MOS FET Relay)

Rated voltage	Operating voltage	Must operate voltage level	Must release voltage level	Input impedance	Rated current
12 VDC	9.6 to 14.4 VDC	9.6 VDC max.	1 VDC min.	2 kΩ±20%	8.0 mA±20%
24 VDC	19.2 to 28.8 VDC	19.2 VDC max.	1 VDC min.	4 kΩ±20%	8.2 mA±20%

Note: The rated current includes the terminal’s LED current.

Output (per G3DZ Power MOS FET Relay)

Load voltage	Load current	Inrush current
3 to 264 VAC 3 to 125 VDC	100 μ to 0.3 A	6 A (10 ms)

Note: There is no output polarity for the G3DZ.

Characteristics

Item	G6D-F4B
Item	Relay output
Contact resistance (see note 2)	100 mΩ max.
Must operate time (see note 3)	10 ms max.
Release time (see note 3)	10 ms max.
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min between coil and contacts.
	1,500 VAC, 50/60 Hz for 1 min between contacts of different polarity
	750 VAC, 50/60 Hz for 1 min between contacts of same polarity
Impulse withstand voltage (between coil and contacts)	4,000 V (1.2 × 50 μs)
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	Destruction: 500 m/s² Malfunction: 100 m/s²
Endurance	Mechanical: 20,000,000 operations min. (at 18,000 operations/hr) Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load) 100,000 operations min. (3 A at 30 VDC, resistive load) (at 1,800 operations /hr)
Ambient temperature	Operating: -25°C to 55°C (with no icing)
Ambient humidity	Operating: 45% to 85%
Weight	Approx. 65 g

Note: 1. The above values are initial values.
2. Measurement condition: 1 A at 5 VDC
3. Ambient temperature condition: 23°C

Item	G3DZ-F4B
Item	Power MOS FET relay output
Must operate time	10 ms max.
Release time	15 ms max.
Output ON-resistance	2.4 Ω max.
Leakage current at OFF state	10 μA max. (at 125 VDC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min between input and output terminals
Dielectric strength	1,500 VAC, 50/60 Hz for 1 min between contacts of different polarity
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	Destruction: 500 m/s²
Ambient temperature	Operating: -25°C to 55°C (with no icing)
Ambient humidity	Operating: 45% to 85%
Weight	Approx. 65 g

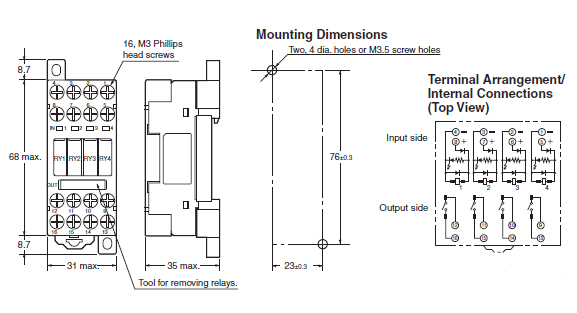

(Unit: mm)

Note: All units are in millimeters unless otherwise indicated.

G6D-F4B
G3DZ-F4B

Note1 : Make sure that the polarity of the input terminal is correct.
Note2 : There is no output polarity for the G6D-F4B and G3DZ-F4B.

Accessories (Order Separately)

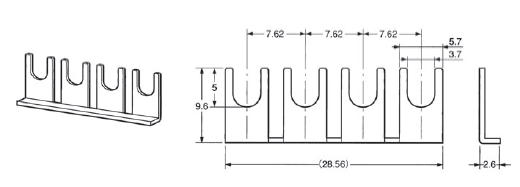

G6D-4-SB Short Bar

TITLE	DOCUMENT TYPE	SIZE
G6D-F4B, G3DZ-F4B	Catalog	540 KB
