Introducing OMRON Robust Components

Greatly Reduce Unexpected
Production Line Stoppages.

RESIST
OIL FOR
4 YEARS

Setting A New Oil Resistance Standard

OMRON Oil-Resistance Components Resist Oil for 4 Years

Five Products, more than 140 models available.

Splashing cutting oil on
conveyancing process

Robust compoents can be used
for the detection of cylinders

Robust limit switches used
for detection of drill breakage.

Robust compoents can be used
for the detection of cutting workpieces

OMRON Robust Components Deliver Breakthrough Value

Maintenance
Hi, we have upgraded our components to be robust enough to withstand cutting oil for 4 years.
Production
Hi, how does that help us?
Maintenance
With robust components, the lifespan of components in cutting oil environments are increased from an average of 1 year, to 4 years.
Maintenance
As such, you will see a great reduction of product failures and downtime. In addition, replacement frequencies and maintenenace visits are greatly reduced.
Production
That is great news for the production team! Thank You!

Issue Identified

Cutting Oil

Solution Provided

Robust components

How It Works

Increase oil resistance

from 1 to 4 years

Key Values

• Reduce component failure

• Reduce replacement frequencies

• Reduce unscheduled maintenance visits

• Reduce frequency of production downtime

As A Result, Company And Management Benefits From:

  • Significant reduction in unexpected production line stoppages.
  • Eliminate risks of lost opportunities resulting from downtime.
  • Allow management to focus on new opportunities.
  • Enjoy greater cost savings due to lower replacement frequencies of components - Only need to replace every 4 years, as compared to yearly corrosion and replacement of components.
Calculate Your Cost Savings In 4 Years

How Do We Achieve 4 Years Of Oil Resistance In Our Components

OMRON’s Oil-Resistant Component Evaluation Standards

OMRON’s oil-resistant components has been evaluated according to IP67G of JIS C 0920*2. We performed oil resistance testing with eight representative cutting oils that were used in manufacturing sites. Click to view

Based on our results, we are able to demonstrate and prove the competence of our product in achieving 4 Years Of Stable Operations In Resisting Oil.

OMRON Oil-Resistant Component Evaluation Standards
Oil type A1 (water-soluble cutting oil)
Evaluation time 2,000 hours of machining*3
800 hours of conveyance*4
Evaluation temperature 55˚C
Dilution concentration Undiluted
Criteria Appearance, performance, and
no labeling text loss

Patented Technologies To Resist Oil Ingress Into Your Components

Fluororesin Blocks Ingress From Cables
Fluororesin Sheath

Through analysis of the ingress paths of cutting oil, we determine that deterioration of cable sheaths is a large factor in causing component failure.

Henceforth, the cable sheaths of OMRON’s oil resistant components are made from fluororesin materials to provide maximum protection against the deterioration. This results in an impregnable cable to even highly aggressive cutting oils.

Previous ModelsCable Sheath: PVC or PUR
Oil-resistant
Connectors
XS5□R
Oil-resistant
Proximity Sensors
E2ER/E2ERZ
NewCable Sheath: Fluororesin

New Rubber Material Combining HNBR and Fluororubber
New Rubber Material

Oil-resistant
Limit Switches
D4ER-□N

OMRON-developed Rubber Blocks Ingress Through Joints and Moving Sections

In addition to the deterioration of cable sheaths, deterioration of rubber used at joints and moving sections is also a major cause of the ingress of cutting oil.

Hence to prevent rubber deterioration, we uniquely develop a new fluorinated rubber used at joins and moving sections. Combined with fluororesin cables, this form an impregnable wall of oil resistance.

Previous ModelsRubber Seal: NBR
New

Rubber Seal: Material Combining HNBR and Fluororubber

State Of The Art Heat-Sealing Methods
Heat Sealing MethodLaser Welding Method

Ingress Through Cable Joints Is Blocked with OMRON Heat Sealing and Laser Welding Methods

In addition to cable sheaths, joints, and moving sections, cutting oil also enters easily in the gaps of different materials.

With OMRON Advanced Sealing Methods,the Heat-Sealing Method and the Laser Welding Method (for complete sealing without Adhesive), it allows completing sealing of joints of both metal and non metal parts, thus blocking the ingress of cutting oil by preventing the creation of gaps.

A. Heating Seal Method

B. Laser Welding Method

Joints between Metal and Non-metal Parts

Securing the metal case and lens cover with laser welding makes the compressed O-ring seal the gap.

Previous Models
New

Joints between Metal Parts

Gaps are sealed by fusing the metal case and cover with a laser beam

Previous Models
New

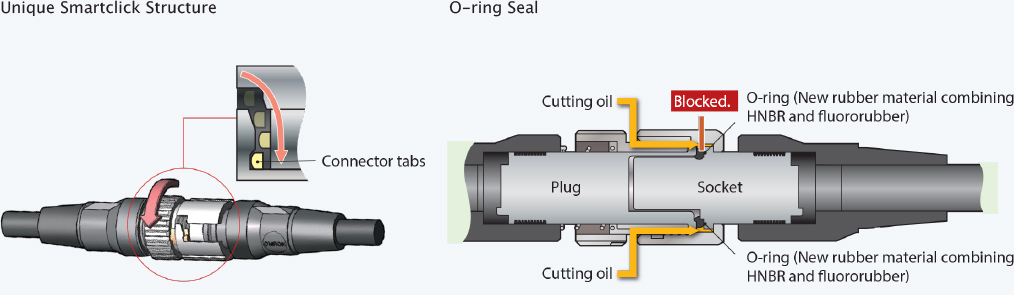

Unique Smartclick Structure
Smartclick Structure + O-ring

Overcome oil-ingress gaps created due to screw tightening or screw losing due to vibration

With traditional screw-tightened structures, differences in tightening torque made achieving oil resistance difficult. OMRON’s Smartclick structure, however locks in a single operation.

The built-in O-ring at the lock position is dependably compressed to block the ingress of cutting oil. This eliminates the need to manage screw tightening torque and prevents screw loosening due to vibration, which are issues in environments requiring oil resistance.

Would You Like To Greatly Reduce Unexpected Production
Line Stoppages And Increase Operation Rates?
