You can apply up to three of the four unique filters developed by OMRON in the desired order to remove printing irregularities and noise, in order to achieve a stable reading.
You can apply up to three of the four unique filters developed by OMRON in the desired order to remove printing irregularities and noise, in order to achieve a stable reading.
Smooth
Smooths the image.
Erosion
For white codes, reduces the cell size.
Effective for reading separated dot codes.
Dilate
For white codes, increases the cell size.
Effective for reading codes with cell spreading.
Median
Removes noise.

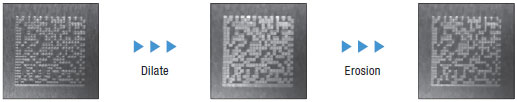

Erosion and dilation can be combined to connect dots without changing the dot thickness.
Code Readers must be able to read codes even for poor printing conditions. You can automatically retry reading while changing the exposure time and other reading conditions, even for changing workpieces or environments, to enable a stable reading.
Reading is performed the specified number of times for the same scene.
Reading is performed until successful, as long as an external level trigger is input.
Reading is performed for the same scene while changing the exposure time in stages.
When reading DPM codes, inconsistencies in printing conditions can result in NGs if reading is performed with only one set of reading settings.

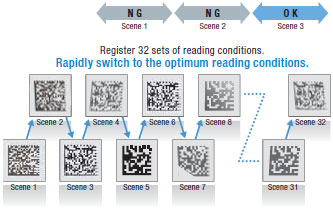

The FQ-CR allows you to register up to 32 sets of reading conditions as scenes and retry reading while changing the scenes in order.
The system automatically determines the scenes with the highest usage rates and changes the order to start with them to flexibly handle changes in reading conditions.
Of course you can specify a fixed order if required.
Red circles are displayed on cells for which the code was corrected on the display.
This clearly shows where the code quality was poor.

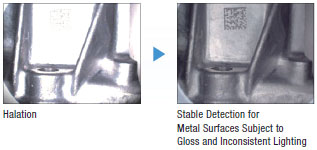

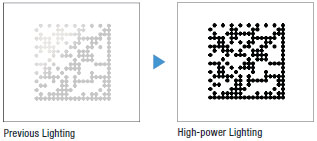

The wider the field of view, the more difficult it is to maintain consistent lighting within the field, causing errors in reading. The built-in LEDs of the FQ-CR Series use a unique OMRON DR optical system for effective light usage to maintain consistent lighting within the field of vision at a brightness that is four times that of previous models.
The HDR (high dynamic range) function minimizes the influence of changes in lighting conditions and light reflection. This enables stable inspections even for materials that are difficult to light evenly, such as metal parts or glossy films, or in locations subject to external light interference.

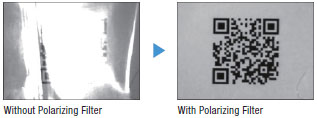

A polarizing filter is included to cut specular reflection from glossy surfaces. This enables stable code reading even for metallic or other glossy surfaces.

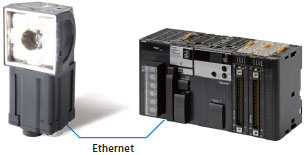

The compact body also provides an Ethernet connector so that you can transfer read data and images via Ethernet. Smoothly transfer data to PLCs, computers, or other host devices.
Setup is as easy as displaying codes on the monitor and registering settings with a simple procedure.
Then, the FQ-CR will automatically tune the settings to achieve the optimum conditions.
Use the convenient Touch Finder for on-site settings and control panel installations, or use a set-up tool on a computer.
TouchFinder for PC (Free)
After purchasing the Code Reader, you can download the TouchFinder for PC free from the member’s website.
The nine language support for menus means that you can easily introduce systems into factory sites in other countries.
In addition, you can easily change the language on a menu.
English
Japanese
Traditional Chinese
Simplified Chinese
Korean
German
French
Italian
Spanish
Navigation menus for operating procedures from image adjustment through to testing and starting operation are provided so that even beginners can operate the Code Reader.
The flexibly arrangeable platform can be used for simple configurations with one Code Reader for complex configurations with multiple Code Readers reading from different directions.

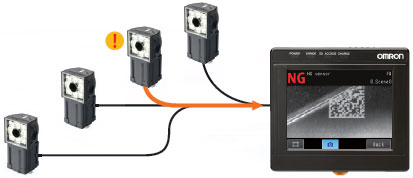

Up to eight Code Readers can be controlled from the Touch Finder set-up console.
The FQ-CR2 contains state-of-the-art algorithms that enable the reading of codes even with poor reading quality. However, even if the code quality continues to deteriorate for some reason, auto-correction and retrying are used to enable reading, making it impossible to tell where quality was lost simply from the OK/NG reading information.
Here, you can use the cell recognition rate information. The cell recognition rate changes with code printing quality, position inconsistency, installation conditions, and noise. You can log the cell recognition rate and image together to manage quality trends. The logging of recent results is useful for testing when commissioning a line. Run through some sample products and log the cell recognition rate. You can then display the results in a time-based graph to see how much leeway there is in reading performance.
* For the FQ-CR1, the number of detected characters is logged instead of the cell recognition rate.
If you leave the Touch Finder installed on-site, the recent NG sensor display is very useful. Even if you are monitoring more than one Code Reader with the Touch Finder, the display automatically changes to the Code Reader where an NG occurred so that you can quickly confirm conditions.
last update: June 01, 2015

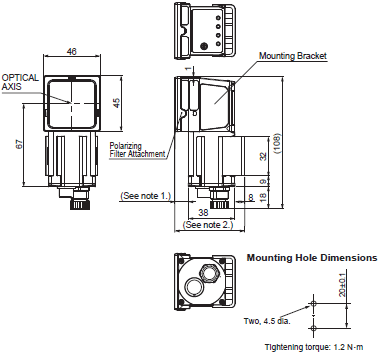

Type | 2D Code Reader | Multi Code Reader | |
---|---|---|---|
Model | NPN | FQ-CR20[][][][]-M | FQ-CR10[][][][]-M |
PNP | FQ-CR25[][][][]-M | FQ-CR15[][][][]-M | |
Field of vision | Refer to the table below. | ||
Installation distance | |||
Minimum resolution |
FQ-CR2[]010F-M/-CR1[]010F-M: 0.040 mm FQ-CR2[]050F-M/-CR1[]050F-M: 0.070 mm FQ-CR2[]100F-M/-CR1[]100F-M: 0.282 mm FQ-CR2[]100N-M/-CR1[]100N-M: 0.155 mm |
||
Main functions |
Code |
2D Code (DataMatrix (EC200), QR Code) |
2D Code (DataMatrix (EC200), QR Code, MicroQR Code, PDF417, MicroPDF417, GS1-DataMatrix) |
Bar code (JAN/EAN/UPC, Code39, Codabar (NW-7), ITF (Interleaved 2 of 5), Code 93, Code128/GS1-128, GS1 DataBar * (Truncated, Stacked, Omni-directional, Stacked Omni-directional, Limited, Expanded and Expanded Stacked), Pharmacode and GS1-128 Composite Code (CC-A, CC-B, CC-C)) |
|||
Image filter |
Filter function (Smooth, Dilate, Erosion, Median), Retry function, Code Error Correction Position Display |
None | |
Verification function | None | Supported | |
Number of simultaneous inspections |
32 | ||
Number of registered scenes |
32 | ||
Image input |
Image filter | High dynamic range (HDR), polarizing filter (attachment) | |
Image elements | 1/3-inch monochrome CMOS | ||
Shutter | 1/250 to 1/32,258 s | 1/250 to 1/30,000 s | |
Processing resolution |
752 × 480 | ||
Lighting | Lighting method | Pulse | |
Lighting color | White | ||
LED class | Risk Group 2 (IEC62471) | ||
Data logging |
Measurement data |
In Code Reader: 1,000 items (If a Touch Finder is used, results can be saved up to the capacity of an SD card.) |
|
Images |
In Code Reader: 20 images (If a Touch Finder is used, images can be saved up to the capacity of an SD card.) |
||
Measurement trigger | External trigger (single or continuous) | ||
I/O specifi- cations |
Input signals |
7 signals Single measurement input (TRIG) Control command inputs (IN0 to IN5) |
|
Output signals |
3 signals Control output (BUSY) Overall judgement output (OR) Error output (ERROR) Note: The three output signals can be allocated for the judgements of individual inspection items. |
||
Ethernet specification |
Numerical outputs and control commands are supported with no-protocol communications. 100BASE-TX/10BASE-T |
||
Connection method |
Special connector cables Power supply and I/O: 1 cable (FQ-WD[][][]) Touch Finder and computer: 1 cable (FQ-WN[][][]) |
||
Ratings | Power supply voltage | 21.6 to 26.4 VDC (including ripple) | |
Current consumption | 2.4 A max. | ||
Environ- mental immunity |
Ambient temperature range |
Operating: 0 to 50°C Storage: - 25 to 65°C (with no icing or condensation) |
|
Ambient humidity range |
Operating and storage: 35% to 85% (with no condensation) | ||
Ambient atmosphere | No corrosive gas | ||
Degree of protection | IEC 60529 IP67 (Except when Polarizing Filter Attachment is mounted.) | ||
Materials |
Code Reader: PBT, PC, SUS Mounting Bracket: PBT Polarizing Filter Attachment: PBT, PC Ethernet connector: Oil-resistance vinyl compound I/O connector: Lead-free heat-resistant PVC |
||
Accessories |
Mounting Bracket (FQ-XL) (1) Polarizing Filter Attachment (FQ-XF1) (1) Instruction Manual Member registration sheet |
2D Code Reader | Multi Code Reader |
Field of view * (Horizontal × Vertical) |
Installation distance |
Weight | ||
---|---|---|---|---|---|---|
NPN | PNP | NPN | PNP | |||
FQ-CR20010F-M | FQ-CR25010F-M | FQ-CR10010F-M | FQ-CR15010F-M |
7.5 × 4.7 to 13 × 8.2 mm |
38 to 57 mm |
200 g max. |
FQ-CR20050F-M | FQ-CR25050F-M | FQ-CR10050F-M | FQ-CR15050F-M |
13 × 8.2 to 53 × 33 mm |
56 to 215 mm | |
FQ-CR20100F-M | FQ-CR25100F-M | FQ-CR10100F-M | FQ-CR15100F-M |
53 × 33 to 240 × 153 mm |
Long-distance model: 220 to 970 mm |
|
FQ-CR20100N-M | FQ-CR25100N-M | FQ-CR10100N-M | FQ-CR15100N-M |
29 × 18 to 300 × 191 mm |
Short-distance model: 32 to 380 mm |
* Tolerance: ±10% max.

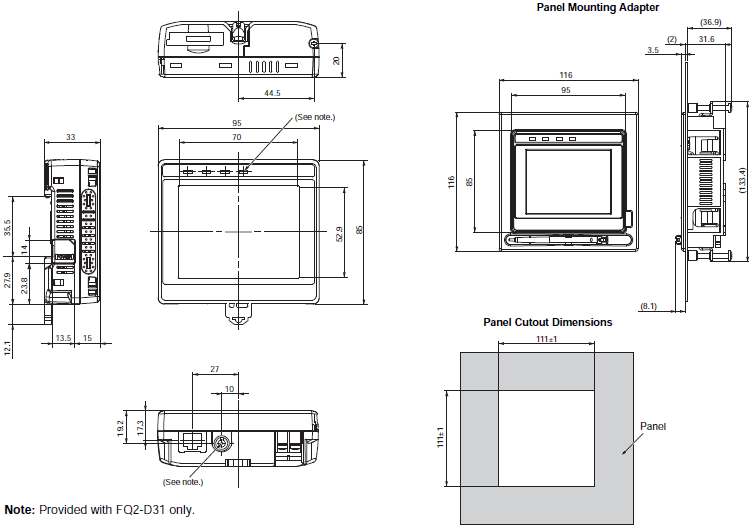

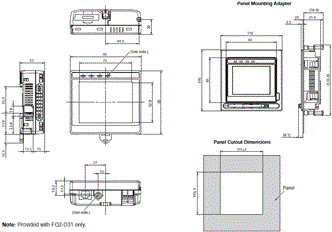

Type |
Model with DC power supply |
Model with AC/DC/battery power supply |
||
---|---|---|---|---|
Model | FQ2-D30 | FQ2-D31 | ||
Number of connectable Sensor |
Number of sensors that can be recognized (switched): 32 max. number or sensor that can displayed on monitor: 8 max. |
|||
Main functions |
Types of measurement displays |
Last result display, Last NG display, trend monitor, histograms | ||
Types of display images | Through, frozen, zoom-in, and zoom-out images | |||
Data logging | Measurement results, measured images | |||
Menu language |
English, German, French, Italian, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese |
|||
Indications | LCD | Display device | 3.5-inch TFT color LCD | |
Pixels | 320 × 240 | |||
Display colors | 16.7 million | |||
Backlight |
Life expectancy *1 |
50,000 hours at 25ºC | ||
Brightness adjustment |
Provided | |||
Screen saver | Provided | |||
Operation interface |
Touch screen |
Method | Resistance film | |
Life expectancy *2 |
1,000,000 touch operations | |||
External interface |
Ethernet | 100BASE-TX/10BASE-T | ||
SD card | SDHC-compliant, Class 4 or higher recommended | |||
Ratings | Power supply voltage |
DC power connection: 21.6 to 26.4 VDC (including ripple) |
DC power connection: 21.6 to 26.4 VDC (including ripple) AC adapter (manufactured by Sino- American Japan Co., Ltd) connection: 100 to 240 VAC, 50/60 Hz Battery connection: FQ-BAT1 Battery (1cell, 3.7 V) |
|
Continuous operation on Battery *3 |
--- | 1.5 h | ||
Power consumption | DC power connection: 0.2 A max. |
DC power connection: 0.2 A max. Charging battery: 0.4 A max. |
||
Environ- mental immunity |
Ambient temperature range |
Operating: 0 to 50ºC Storage: - 25 to 65ºC (with no icing or condensation) |
Operating: 0 to 50ºC when mounted to DIN Track or panel Operation on Battery: 0 to 40ºC Storage: - 25 to 65ºC (with no icing or condensation) |
|
Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||
Ambient atmosphere | No corrosive gas | |||
Vibration resistance (destruction) |
10 to 150 Hz, single amplitude: 0.35 mm, X/Y/Z directions 8 min each, 10 times |
|||
Shock resistance (destruction) |
150 m/s2 3 times each in 6 direction (up, down, right, left, forward, and backward) |
|||
Degree of protection |
IEC 60529 IP20 (when SD card cover, connector cap, or harness is attached) |
|||
Weight | Approx. 270 g (without Battery and hand strap attached) | |||
Materials | Case: ABS | |||
Accessories included with Touch Finder |
Touch Pen (FQ-XT), Instruction Manual |
*1. This is a guideline for the time required for the brightness to diminish to half the initial brightness at room
temperature and humidity. The life of the backlight is greatly affected by the ambient temperature and humidity
and will be shorter at lower or higher temperatures.
*2. This value is only a guideline. No guarantee is implied. The value will be affected by operating conditions.
*3. This value is only a guideline. No guarantee is implied. The value will be affected by the operating environment and
operating conditions.
Model | FQ-BAT1 |
---|---|
Battery type | Secondary lithium ion battery |
Nominal capacity | 1,800 mAh |
Rated voltage | 3.7 V |
Ambient temperature range |
Operating: 0 to 40°C Storage: - 25 to 65°C (with no icing or condensation) |
Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) |
Charging method | Charged in Touch Finder (FQ-D31). AC adapter (FQ-AC[]) is required. |
Charging time *1 | 2 h |
Battery backup life *2 | 300 charging cycles |
Weight | 50 g max. |
*1. This value is only a guideline. No guarantee is implied. The value will be affected by operating conditions
*2. This is a guideline for the time required for the capacity of the Battery to be reduced to 60% of the initial capacity.
No guarantee is implied.
The value will be affected by the operating environment and operating conditions.
The following Personal Computer system is required to use the software.
OS |
Microsoft Windows XP Home Edition/Professional SP2 or higher *1 Microsoft Windows 7 Home Premium or higher *1 |
---|---|
CPU | Core 2 Duo 1.06 GHz or the equivalent or higher |
RAM | 1GB min. |
HDD | 500 MB min. available space *2 |
Monitor | 1,024 × 768 dots min. |
*1. The Japanese and English versions support only 32-bit OS versions.
*2. Available space is also required separately for data logging.
