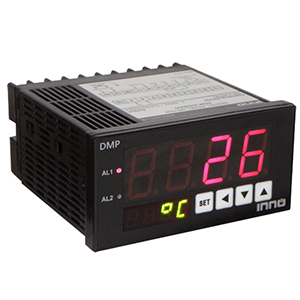

Digital Process Meters
DMP Series
Brand:
Economical 96 X 48mm Digital Panel Meter with Hi-Bright 4 digit RED and GREEN 7-segment LED Dual Display. Universal Input(TC/ RTD/ Voltage/ Current Input). Dual Relay Alarm Outputs, Retransmission Current Output & Modbus via RS-485 with Panel Mounting Kit

  • PV & SV Display
  • 2 Alarm Indication
  • MODBUS Via RS-485
  • Alarm, Current Output
  • 100-240 VAC Power Supply
  • 24 VDC Auxiliary Power Supply
  • TC/ RTD/ Voltage/ Current Input

TITLE DOCUMENT TYPE SIZE
Digital process meter Catalog 846 KB
Digital process meter manual Manual 350 KB
