Omron, K6PM-TH Series

Automatic capture of temperature deviation in a panel for maintenance labors, to achieve both labor-saving and significant risk mitigation of abnormal stop

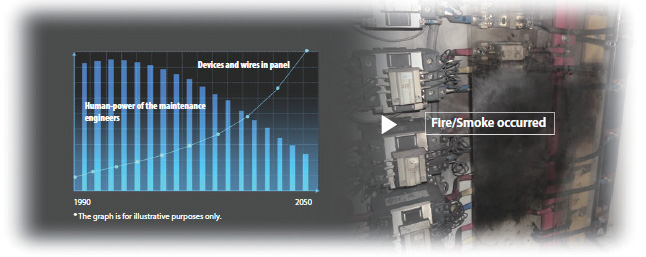

Issues on site

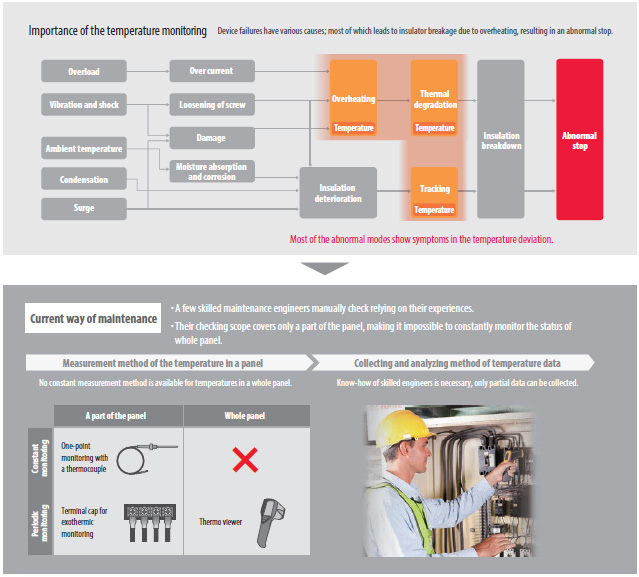

Parts to check are increasing as devices and wires in a panel increase for high-functioned facilities and equipment. On the other hand, maintenance frequency is decreasing due to shortage of the maintenance engineers, resulting in a higher risk of accident.

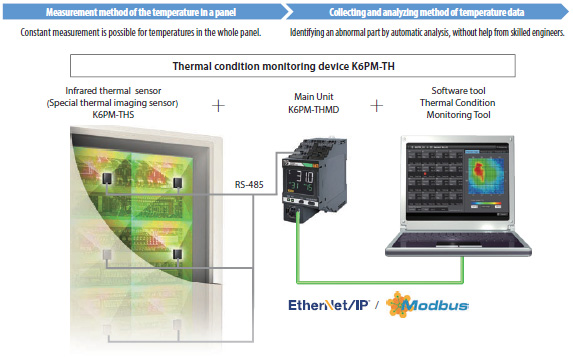

New way of maintenance

Covering the skilled maintenance engineers, the thermal condition monitoring device constantly monitors temperatures of the whole panel.
Automated collection and analysis of the temperature data enables to identify a device failure automatically.

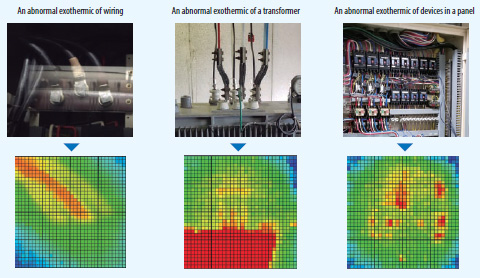

Measurement applications using K6PM-TH

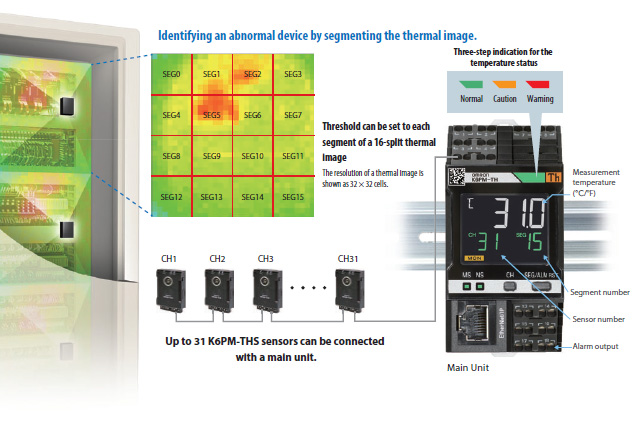

Visualizing the temperature in a panel accurately without opening the panel door

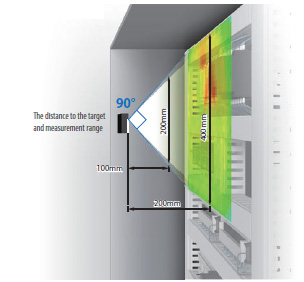

Optimal installation regardless of the locations thanks to the wide viewing angle and the compact body.

Wide viewing angle lens

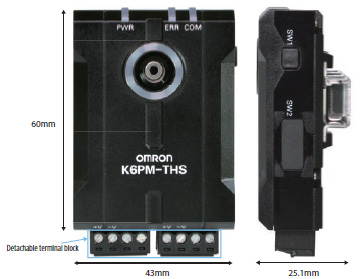

Compact

Infrared temperature sensor (Special thermal Imaging sensor) K6PM-THS

Environmental resistance

Assuring a normal operation under a harsh environment

Easy mount

Mount with a magnet or a commercially attachment on the backside of the door is available.

Contributing to an early detection of abnormality by our proprietary algorithm

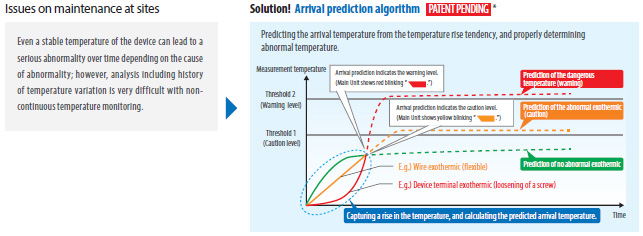

[Features 1] Predicting the temperature rise deviations, and notifying the dangerous level of abnormal exothermic.

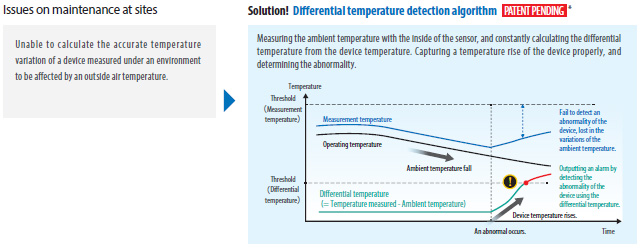

[Features 2] Enable to predict an abnormal exothermic of the devices in an environment where the ambient temperature significantly varies.

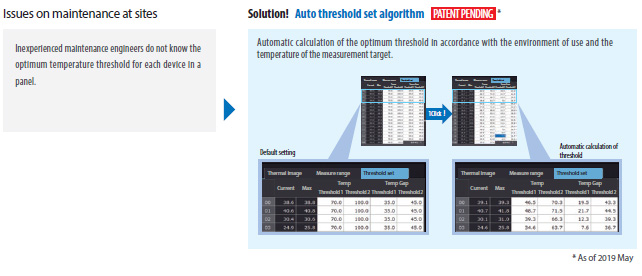

[Features 3] Auto setting of the optimum threshold for the complicated temperature distribution in a panel.

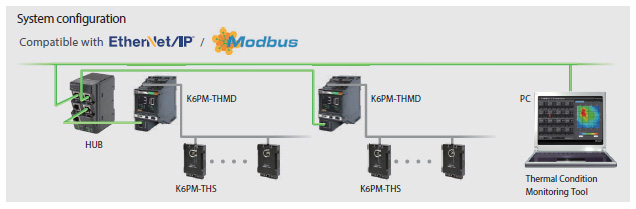

System configuration and software tool

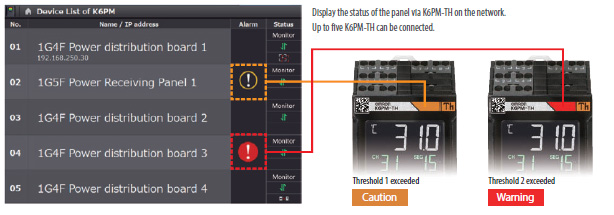

"Thermal Condition Monitoring Tool" enables the setting and logging of K6PM-TH. K6PM-TH linked with a PC via an Ethernet cable enables you to recognize the temperature status in panels and warning alarms at one view on a remote PC.

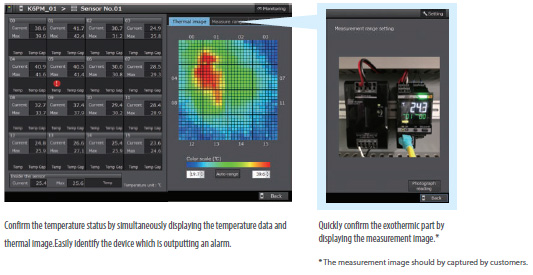

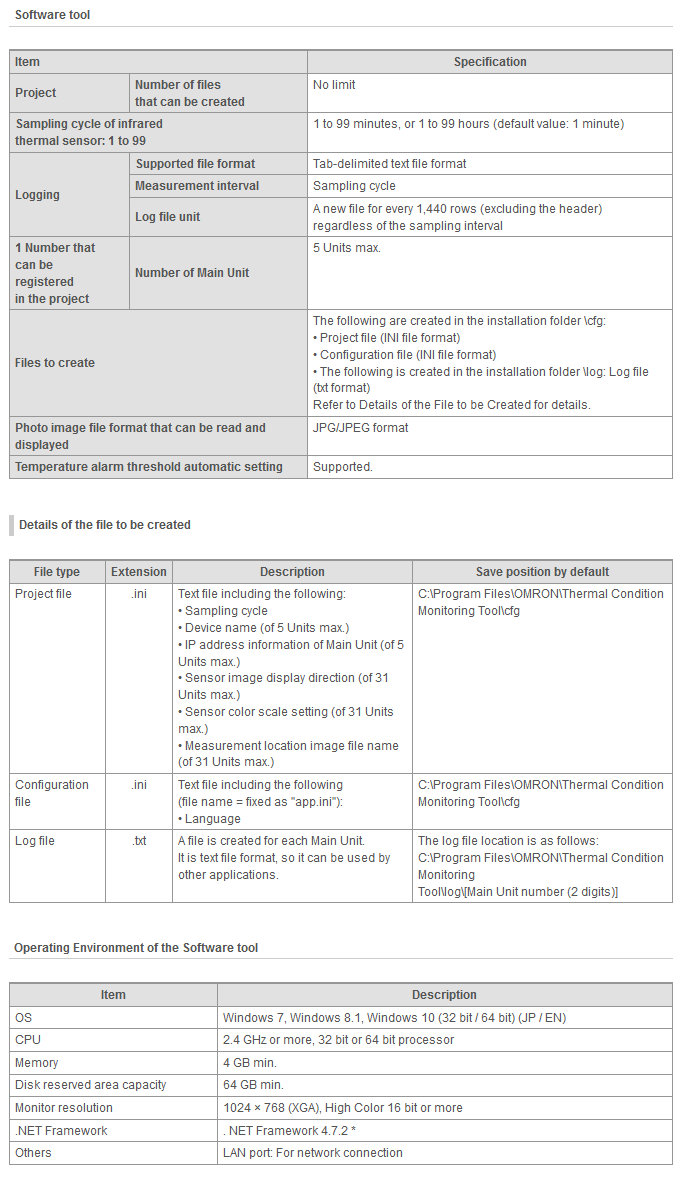

With Thermal Condition Monitoring Tool you can...

Constantly and remotely visualize the temperature status of the panel in multiple points where K6PM-TH are installed.

Quickly know the analyzing results of the measurements at one view

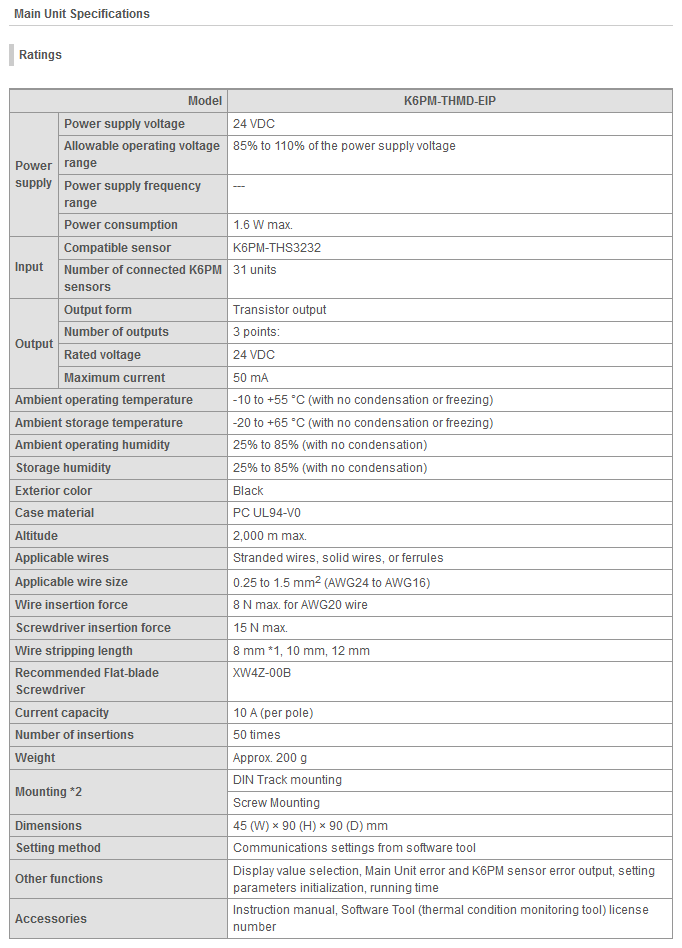

*1.Without ferrules
*2. For details on mounting on a DIN track and screw attachment, refer to K6PM Thermal Condition Monitoring Device User's Manual (H231).

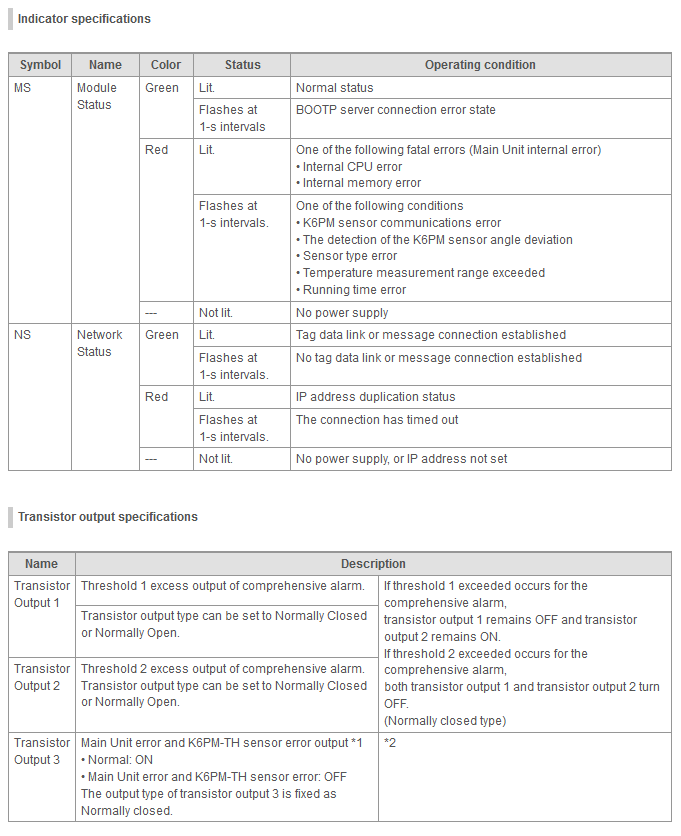

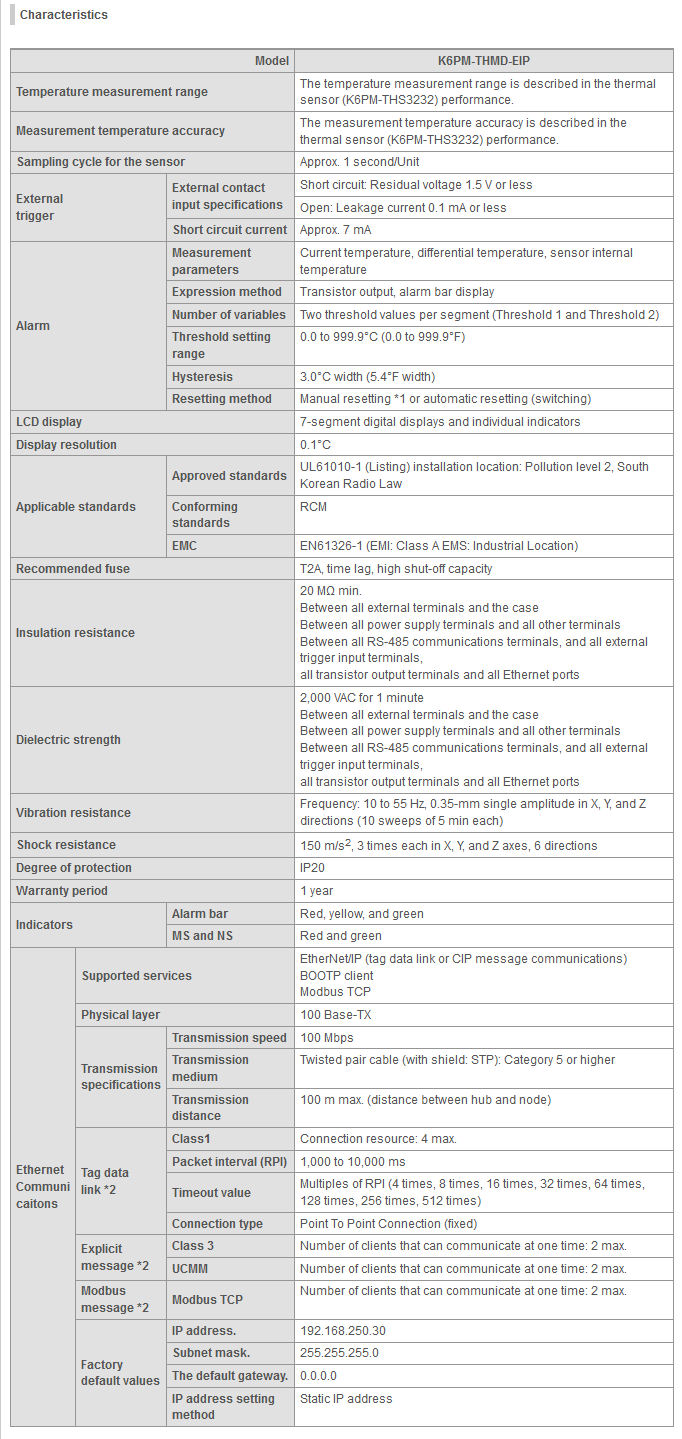

*1.Manual resetting method: Press and hold the SEG/ALM RST Button
*2. When you use tag data link, explicit message communications, and Modbus message communications simultaneously, limit the number of client nodes to 4 or less. If simultaneous communication is carried out with 5 or more nodes, a timeout may occur due to the communications load.

*1.The Main Unit error and K6PM-TH sensor error specify any one of the following:

Main Unit internal error (internal CPU error or internal memory error)
K6PM-TH sensor communications error or sensor type error
The detection of the K6PM-TH sensor angle deviation
Temperature measurement range exceeded
Running time error

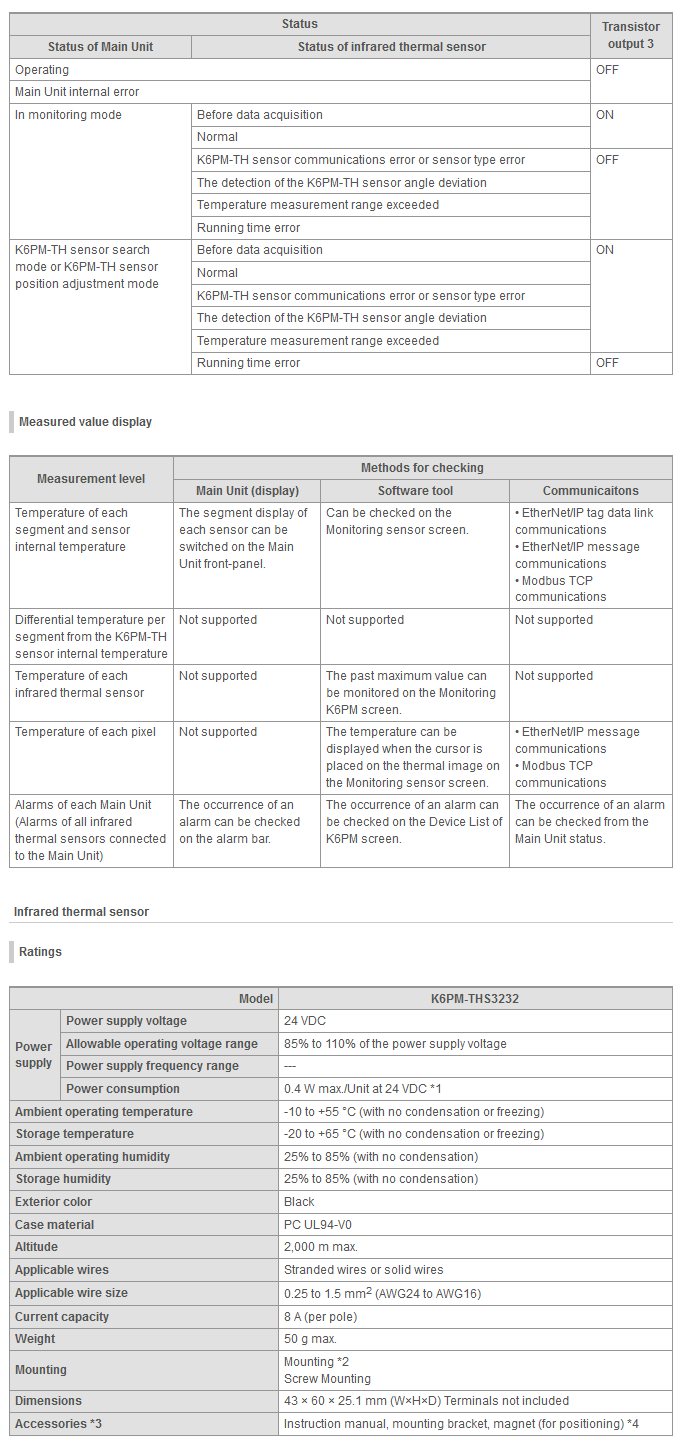

*2. The operation of transistor output 3 is as described below.

*1. The power consumption increases according to the number of connected devices. Take note of the choice of wiring and the wiring diameter.
*2. A 1/4-20 UNC mounting hole is available (nuts are not provided).
*3. The pan head is sold separately.
*4. Use magnet mounting for positioning the sensor.

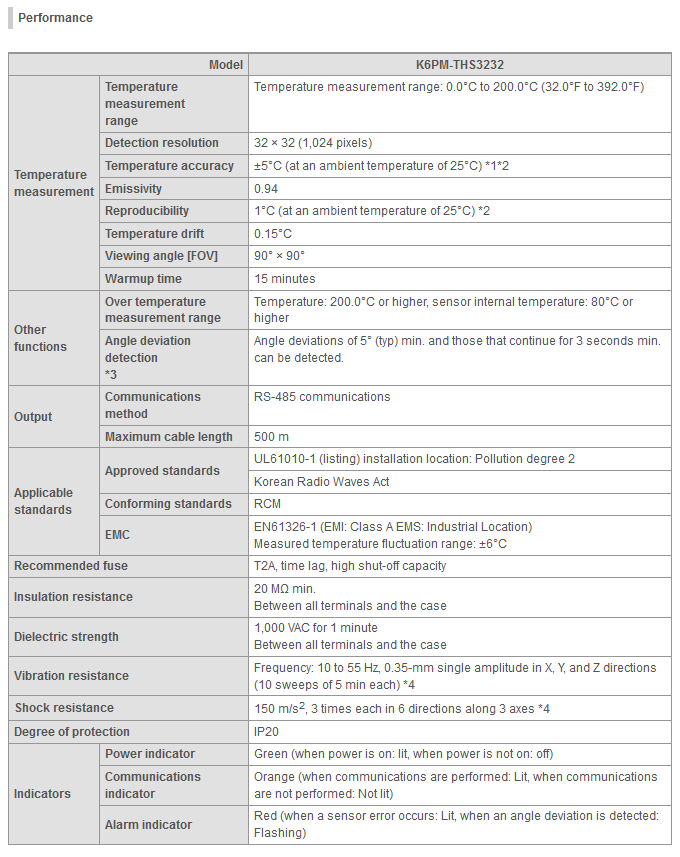

*1.Accuracy may vary depending on the measured distance, the object's emissivity, and ambient temperature.
*2. For details on temperature accuracy and reproducibility, refer to K6PM Thermal Condition Monitoring Device User's Manual (H231).
*3. Make ON/OFF settings on the DIP switch Pin 2 (default value: OFF).
Since the operation is not stable at a location subject to vibrations, it may not be possible to detect angle deviation.
*4.During screw mounting.

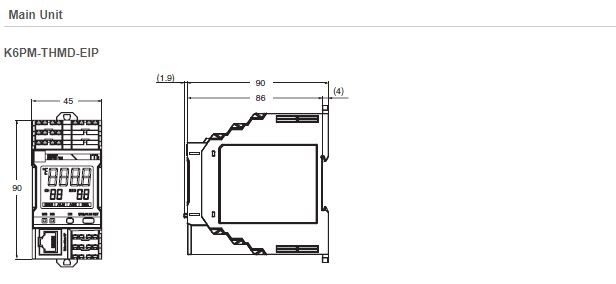

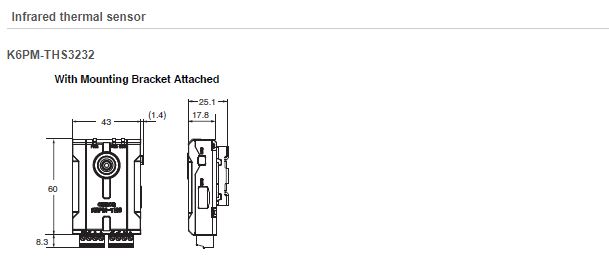

(Unit: mm)
