Omron, XW2B Series (Standard Type)

Omron, XW2B Series (Standard Type)

Home > Product > Switching & Accessories > Relay/SSR & I/O Boards > XW2B Series (Standard Type)

Standard Connector Terminal Block Conversion Units

XW2B Series (Standard Type)

Brand:

Simplifies Connector and terminal block replacement, and requires less in-panel wiring.

• Mount to DIN Track or via screws.

• MIL Flat Cable Connectors and Multi-pole, Square Connectors are standard.

• Terminal blocks available with either M3 or M3.5 screws.

• Connecting Cables for Programmable Controllers available (sold separately).

Type	XW2B-[][]G[] Flat Cable Units	XW2B-[][]Y[] Multi-pole, Square-connector Units	XW2B-40F5-P Board I/O Unit
Rated current	1 A
Rated voltage	125 VAC
Insulation resistance	100 M Ω min. (at 500 VDC)
Dielectric strength	500 VAC for 1 min (leakage current: 1 mA max.)
Ambient operating temperature	0 to 55 ° C

(Unit: mm)

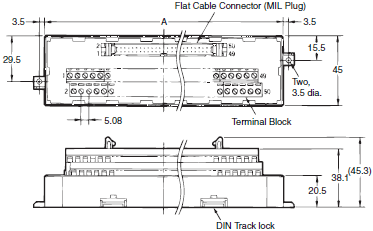

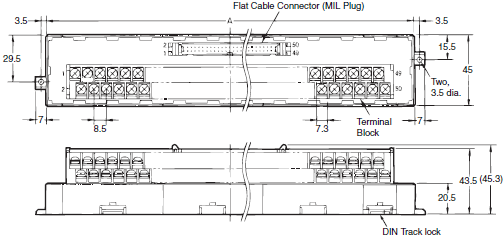

Flat Cable Units with a Terminal Block with M3 Screws
XW2B-[][]G4

XW2B (Standard-type) Dimensions 1

XW2B (Standard-type) Dimensions 1

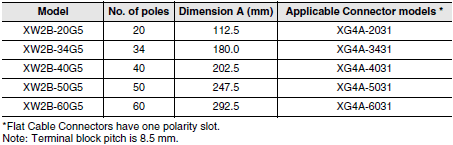

Flat Cable Units with a Terminal Block with M3.5 Screws
XW2B-[][]G5

XW2B (Standard-type) Dimensions 3

XW2B (Standard-type) Dimensions 4

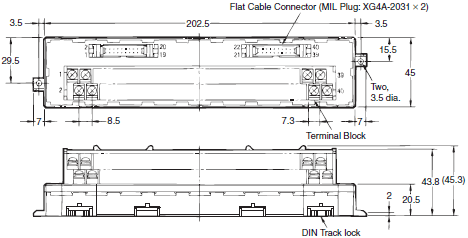

Twin-connector Units with a Terminal Block with M3.5 Screws
XW2B-40G5-T

XW2B (Standard-type) Dimensions 5

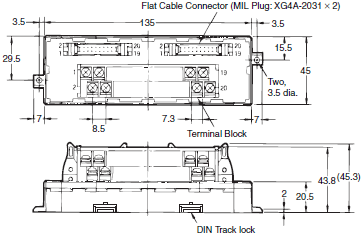

Daisy Chain Units with a Terminal Block with M3.5 Screws
XW2B-20G5-D

XW2B (Standard-type) Dimensions 6

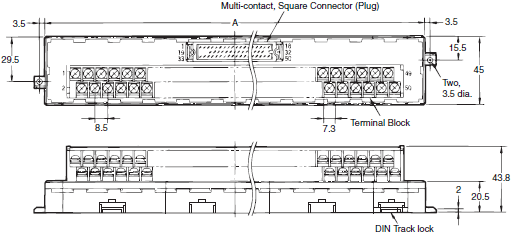

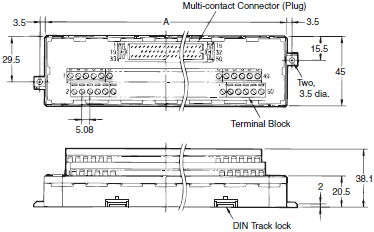

Multi-pole, Square-connector Plug Units with a Terminal Block with M3 Screws

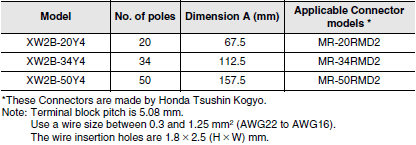

XW2B-[][]Y4

XW2B (Standard-type) Dimensions 7

XW2B (Standard-type) Dimensions 8

Multi-pole, Square-connector Plug Units with a Terminal Block with M3.5 Screws
XW2B-50Y5

XW2B (Standard-type) Dimensions 9

XW2B (Standard-type) Dimensions 10

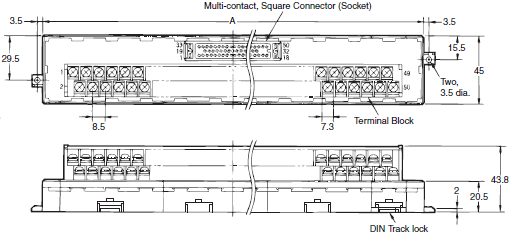

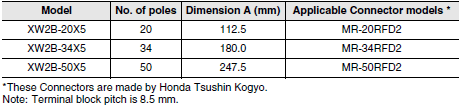

Multi-pole, Square Connector Socket Units with a Terminal Block with M3.5 Screws
XW2B-[][]X5

XW2B (Standard-type) Dimensions 11

XW2B (Standard-type) Dimensions 12

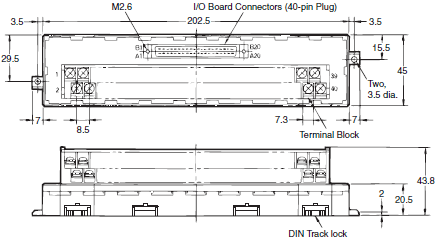

Board I/O Units with a Terminal Block with M3.5 Screws
XW2B-40F5-P

XW2B (Standard-type) Dimensions 13

XW2B (Standard-type) Dimensions 14

TITLE	DOCUMENT TYPE	SIZE
XW2B	Catalog	1629 KB
XW2B Series Table of Connector-Terminal Block Conversion Units and connectable device combinations	Catalog	978 KB
