Slim Type Thyristor Power Controllers
DPUS Series
Brand:
The DPUS series slim type digital thyristor power controllers feature compact width size of 50 mm and support both phase control and variable zero-cross cycle control methods for control of various load types. The DIP switch allows easy configuration of control methods, current/voltage, and auto/manual input control. The LED operation indicator allows users to easily check various alarm outputs.

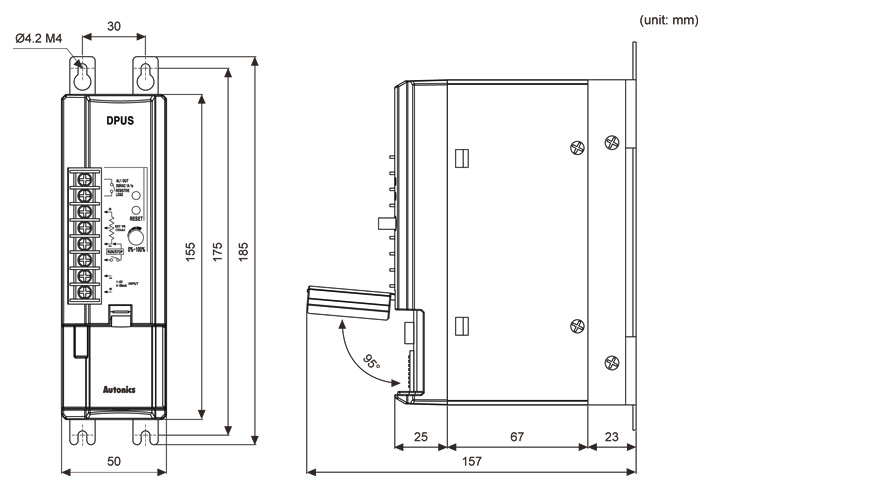

  • Slim size (50 mm width)
  • Auto/manual input control available
  • Switch between RUN(Close) and STOP(Open) using terminal inputs
  • Phase control for various load control and zero-cross cycle control (variable cycles)
  • Built-in fast-acting fuse for internal circuit protection (optional)
  • Various alarm outputs: overcurrent alarm, heatsink overheat alarm, load disconnection alarm, thyristor error alarm
  • Easy configuration using DIP switch

TITLE DOCUMENT TYPE SIZE
DPUS series Catalog 581 KB
DPUS series Manual 1218 KB
