Compact – Expandable – Flexible

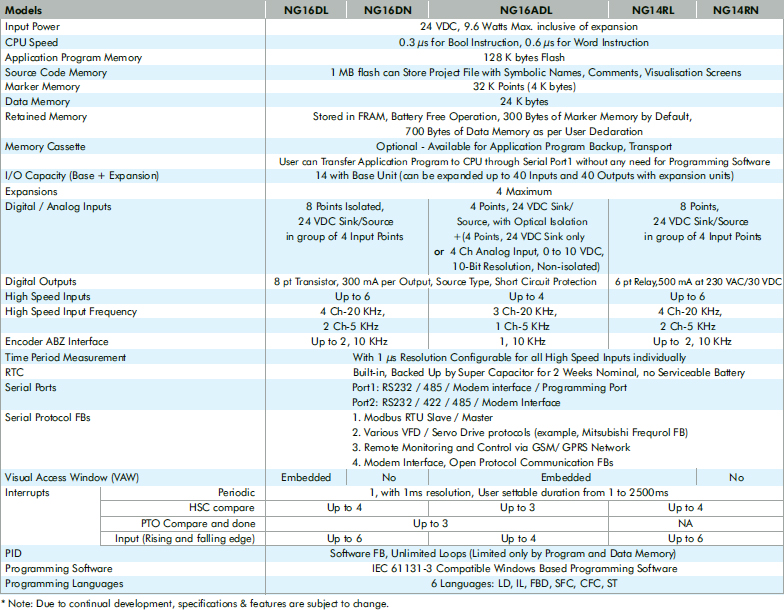

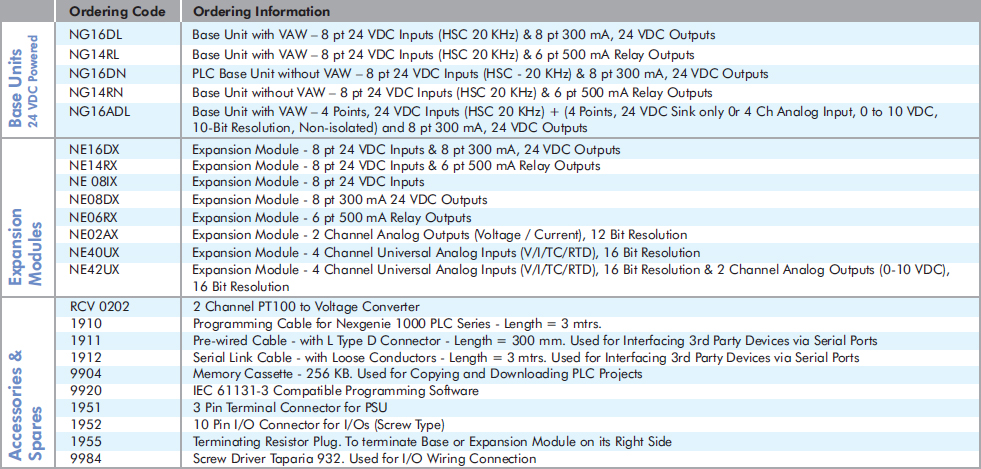

• Compact Base Unit packed with 14/16 feature rich I/O points
• Base Variant Option with DI + AI + HSC Input
• Expandable up to 80 I/O Points with 4 Expansion Modules
• Models with or without Visual Access Window (VAW)

Visual Access Window (VAW)

• Bright Graphics LCD(128x64 Pixels) with White Backlit
• 64 User Programmable Screens
• Four Keys for Navigation and Modification
• 4 levels of Password Protected Access
• System Status and I/Q/M Monitoring
• Screen Definition via user friendly Program Configuration Utility

Configurable Analog Input Option

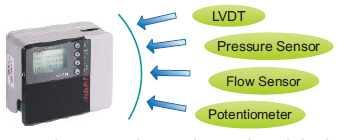

• Analog Control is made simple with built-in Configurable Analog Inputs Option
• It supports: - AI (0-10 VDC) / DI (24 VDC)- 4 Inputs and - HSC (4 HSC or 1 ABZ Encoder) / DI (24 VDC) - 4 Inputs

High Speed Counters

• Various Configurable HSC Modes
• Up to 6 Single Phase Counters -Software Direction Control
• Up to 2 Quadrature Encoder -(10 KHz) Interfaces
• Interrupt Events with HSC Compare, Zero Crossing etc.

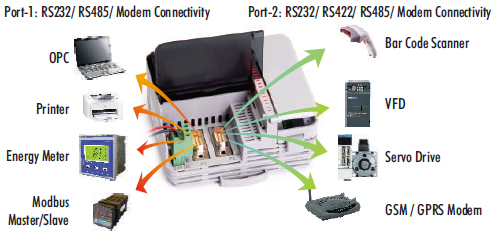

Connectivity via 2 Serial Ports

• Memory Application: 128 Kb, Data: 28 Kb
• Storage of complete Project with Comments on CPU
• Alternate Project backup on External Cassette
• Password Protection for Application Codes

Real Time Clock (RTC) Based Control

• RTC based Arithmetic Calculations
• Time Channel Function with Daily/ Weekly Programs

Consolidated Storage Space

• Memory Application: 128 Kb, Data: 28 Kb
• Storage of complete Project with Comments on CPU
• ŸAlternate Project backup on External Cassette
• Password Protection for Application Codes

Pre-emptive Multitasking

• Dynamic handling of High Priority Interrupt Events
• On-the-fly Event Enable, Disable, POU Assignment Control via Application

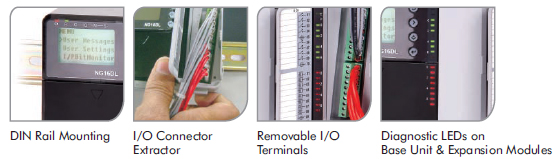

User Friendly Features

Global Standard Windows based IEC61131-3 Compatible Programming Software Package

• Single Uniform Programming Platform

Wide Choice of IEC Programming Languages

• LD: Ladder • ST: Structured Text • SFC: Sequential Function Chart
• IL: Instruction List • CFC: Continuous Function Chart • FBD: Function Block Diagram
