Inductive Linear Positioning Sensors
LPD Series
Brand:
The LPD series inductive linear positioning sensors can detect linear movement and position of metal objects. The coreless method improves detection precision and reduces the risk of damage due to impact on the detection surface. With oil resistant cable, the sensors can be used even in harsh environments including machine tools industry.

Features

  • Detect constant linear movements of metal objects with inductive detection

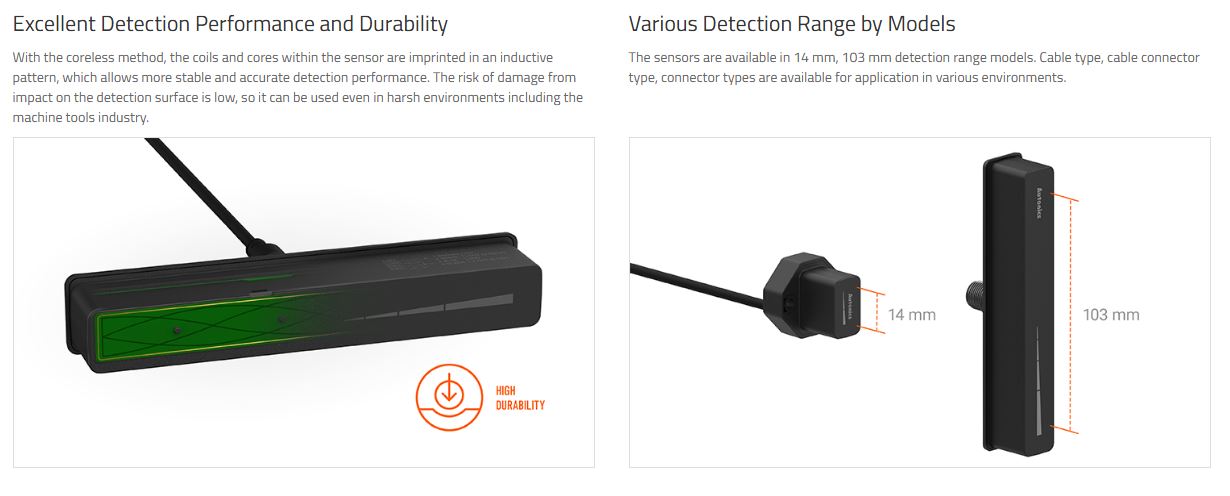

  • High resistance to impact with coreless method
  • Detection range : 14 mm, 103 mm

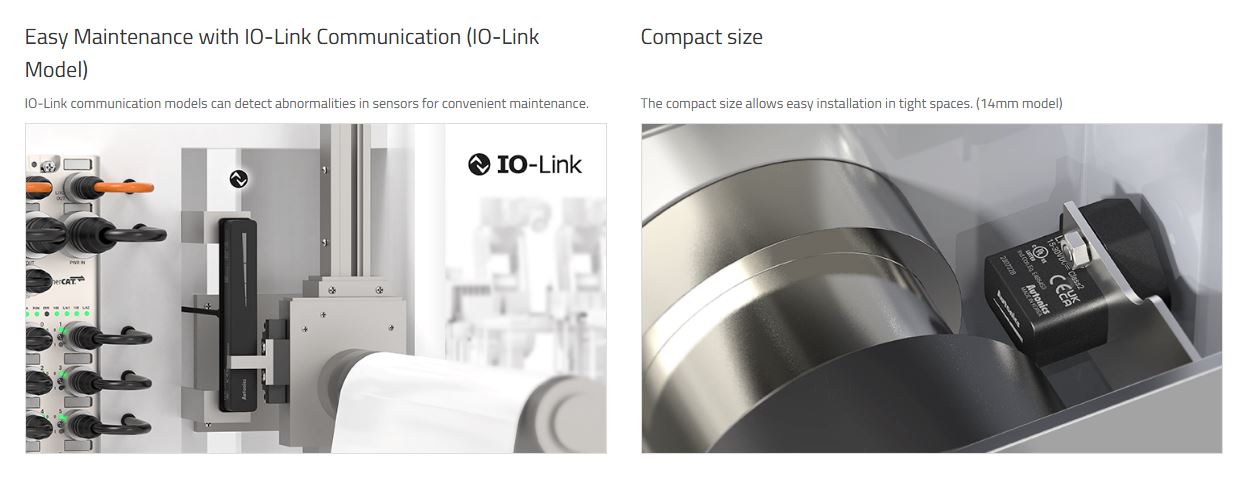

  • Analog voltage/current output, voltage/current integrated output, IO-Link output
  • Various functions : teaching function, OOR (Out-of Range) output function, etc.

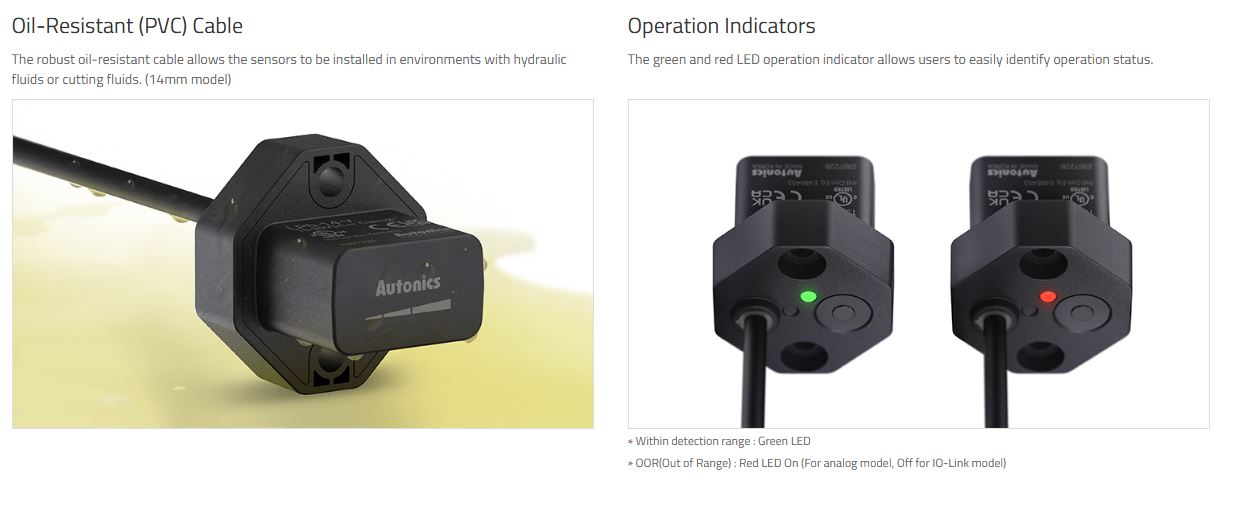

  • Oil resistant cable

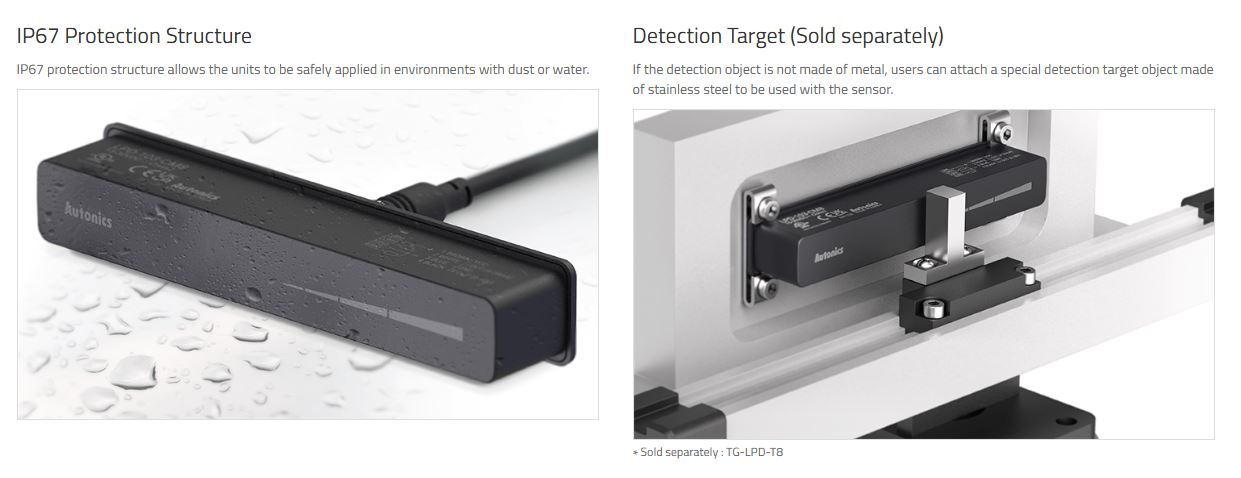

  • Protection structure: IP67

TITLE DOCUMENT TYPE SIZE
LPD-Series-Instruction Manual 365 KB
LPD-Series-Product-Manual Manual 21114 KB
