DC Electronic Circuit Protector
S8V-CP Series
Brand:
Simplified safety design of DC circuits Reliable DC circuit protection in the event of short circuits or overcurrent Saves space even with multi-channels Sequential start-up of outputs to avoid start-up trouble

For building green control panels

• Natural disasters caused by global warming and climate change are became global social issue, that drives over 150 countries and regions worldwide to take action toward decarbonization.Our goal is to reduce greenhouse gas (GHG) emissions toward half by through new ways of building control panels, that key figure of the manufacturing site..

Integrating green perspectives into Value Design

• Value Design for Panel (Value Design) is the common concept shared across OMRON’s in-panel product specifications to deliver new value to your control panels. This Value Design also integrate environment consideration concept that enable earth and user-friendly control panel building.

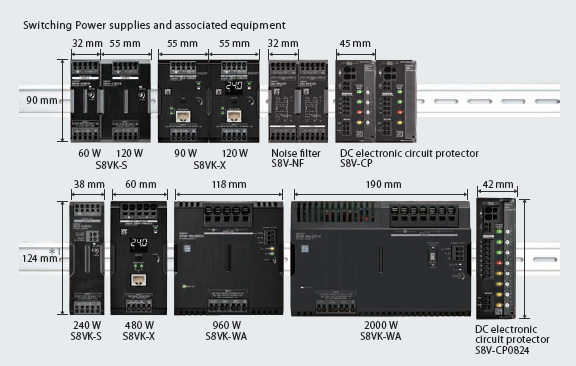

Unified height reduces dead-space and miniaturizes control panel

• Value Design for Panel compliant switching power supplies, noise filters, and DC electronic circuit protectors are standardized in height.Reduces dead-space and reduces the size of control panel.

＊ 1. Height: 124 mm, but S8V-CP0824 excluded

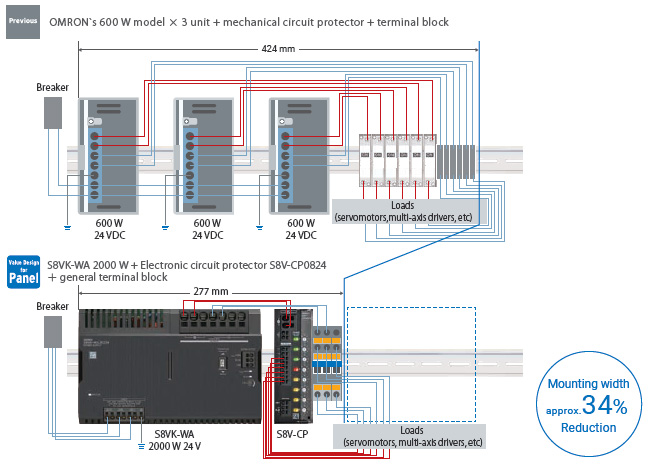

Reduced mounting space by using new DC distribution methods

• Examples of S8VK-WA 2000 W Types: Space-saving implementation and less wiring connections by providing branch methods and protective devices

Shortening Lead Time for Control Panel Building

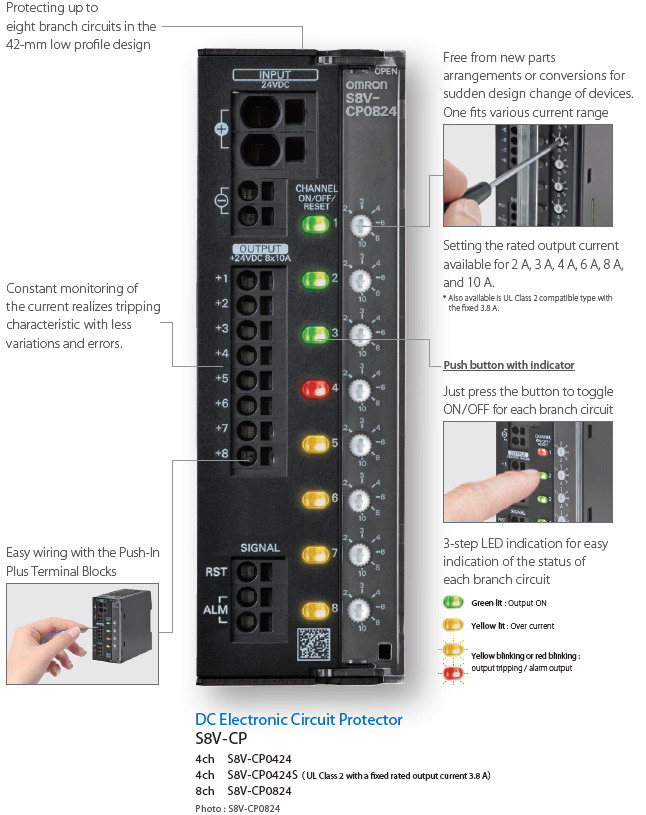

Easier setting and wiring reduce the work load of operators

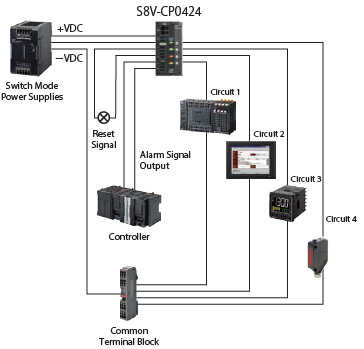

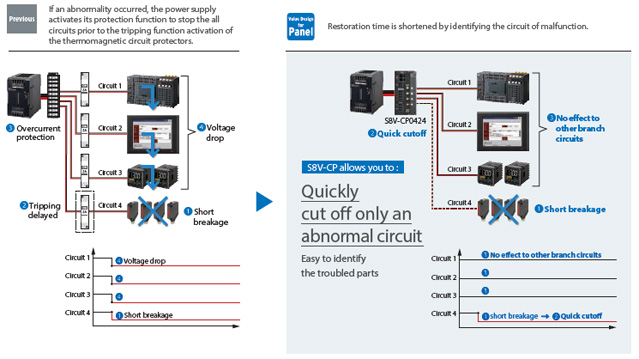

• Sequential start-up of branch circuits can avoid the trouble of operation start and awareness to the malfunction is possible

Sequential start-up of branch circuits minimizes start-up troubles by the inrush current.

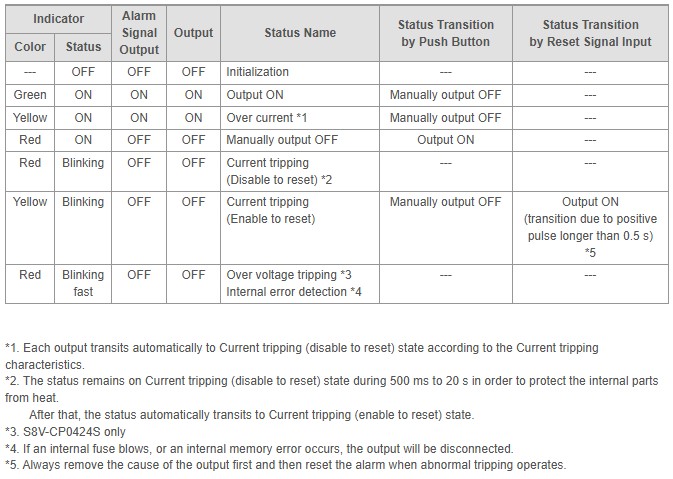

An alarm signal output enables to output an abnormal occurrence to an upstream controller.

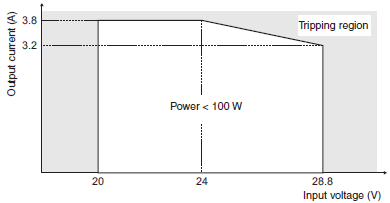

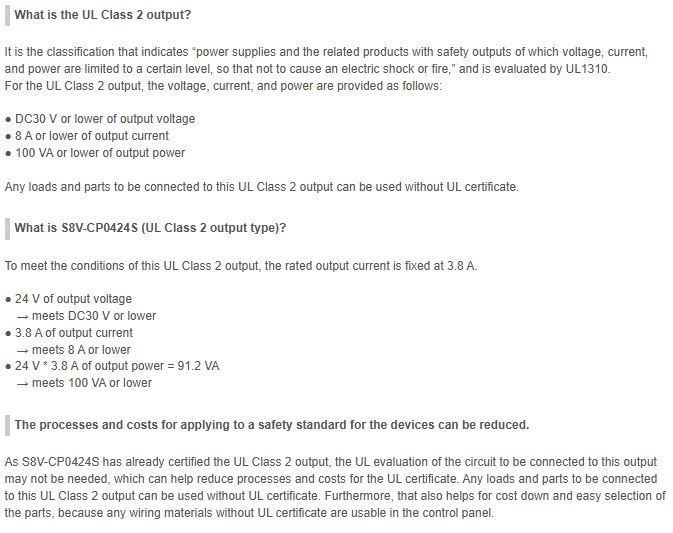

•The processes and costs for the UL certificate can be reduced. UL Class2［ S8V-CP0424S ］

TITLE DOCUMENT TYPE SIZE
S8V-CP Data Sheet Data Sheet 3678 KB
S8V-CP Catalog Catalog 2508 KB
S8V-CP DC Electronic Circuit Protector Instruction Sheet(ENG/JPN/CHI) Instruction Manual 1735 KB
