Solid Flow Meters
Solid Flow Meters
Brand:

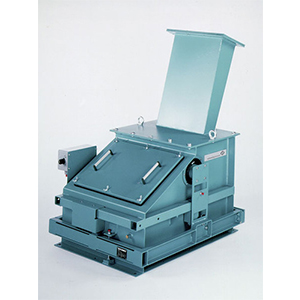

These metering devices are used to measure the flow rate of very fine particles like fly ash, cement etc. The material flows by gravity through an air slide and flows over a plate which measures the impact which is proportional to the density of the material and the flow rate. The impact on the plate is measured by two high precision loadcells that give a very linear output proportional to the flow rate. The output of the loadcells are fed into the micro controller based flow rate indicator which gives the rate and totalized quantity of material.

Signal conditioners is a wall-mounting instrument compatible with strain gauge based transducers. It can support a maximum of 4 transducers when they are connected in parallel. Signal conditioners are used to accept for further processing of output signals. After which they are converted into voltages and currents. Voltage signals are used for processing with in the system and current signals are used for transmitting over long distances and then for further processing.

The features of the signal conditioner are:
• Output proportional to load
• Simple to operate
• Reliable
• Easy to install
• Rugged designed for industrial environment

TITLE DOCUMENT TYPE SIZE
SOLID FLOW M Catalog 334 KB
