10.4-Inch Color LCD Logic Panels
LP-A104 Series
Brand:
The LP-A104 series logic panels are all-in-one devices featuring functions of PLC, HMI, and I/O modules with 32 input and 32 output contact points. The 10.4-inch widescreen TFT LCD display offers excellent visibility and data management capability. The resistive touchscreen (analog touch) allows flexible tag arrangements, and the data logger function allows data storing and backup from various control devices. The units can be installed horizontally or vertically, and also feature support for various connection interfaces including USB Host/Device, Ethernet, and CAN.

    Common Features

  • All-in-one device including functions of PLC, HMI, and I/O modules
  • Horizontal/vertical installation
  • Various communication interface support: RS232C, RS422/485, Ethernet, CAN
  • 32 input and 32 output points provided
  • Device monitoring of connected device possible without screen data
  • Motion control and high-speed counting function included
  • 10.4-inch TFT LCD True Color display capable up to 16,777,216 color variations
  • Resistive touchscreen allows operation with bare hands, gloved fingers, or stylus
    • closed-loop

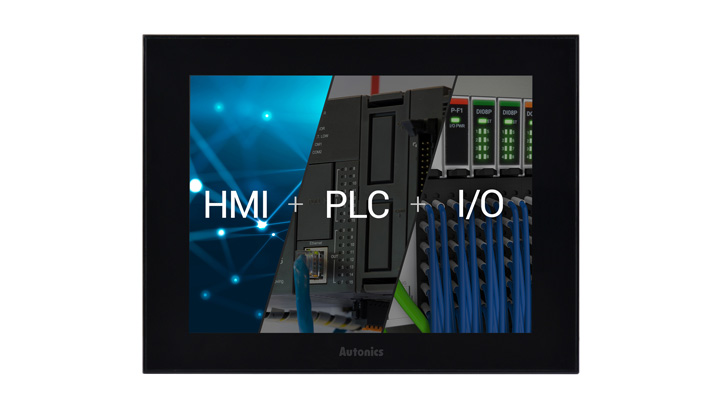

    All-In-One Touch Panel with PLC, HMI, and I/O Module Functions

  • The all-in-one device features functions of PLC, HMI, and I/O modules offering easy space-saving installation with minimal wiring. Convenient total control is possible from a single access device.
    • closed-loop

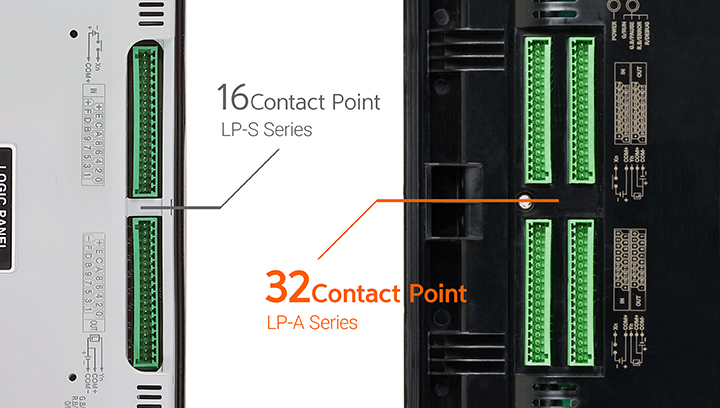

    32 Input and 32 Output Points

    Multiple I/O points are provided for simple system setup without requiring PLCs.

    onetouch

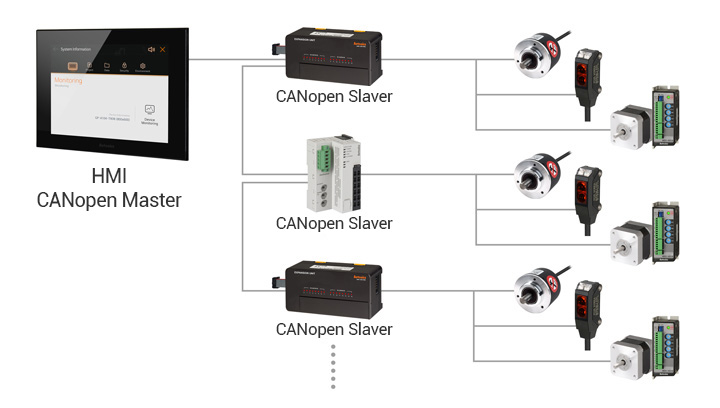

    CAN Communication

    The LP-A104 series can be set as a Master device with CANopen communication protocol to connect multiple I/O devices. Autonics ARD series and ARIO (DeviceNet models) series I/O can be used as slave devices.

    onetouch

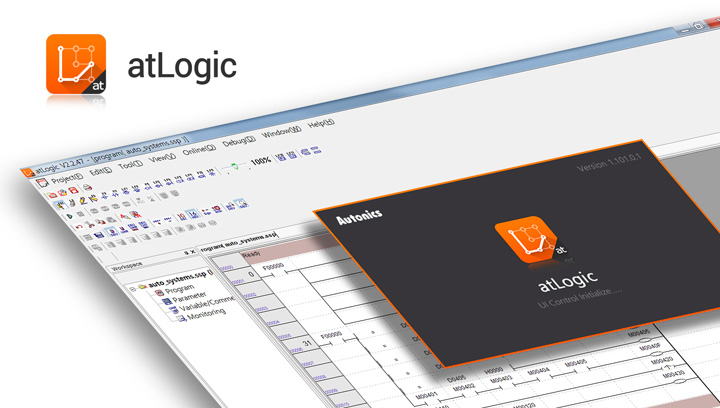

    atLogic Logic Programming Software

    Users can create and edit ladder programs using the atLogic ladder programming software.

    onetouch

TITLE DOCUMENT TYPE SIZE
LP-A104-Series Manual 7513 KB
LP-A104-Series Manual 11,676 KB
LP-A104-Series Manual 9402 KB
LP-A104-Series Manual 3176 KB
LP-A104-Series Manual 264 KB
LP-A104-Series Catalogue 657 KB
LP-A104-Series Catalogue 527 KB
