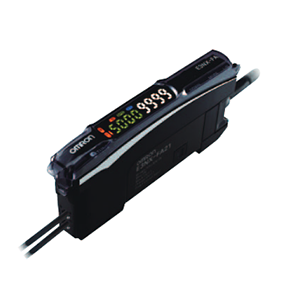

Omron, E3NX-FA Series

Ultra-stable

The No. 1 Performance Worldwide*1 for Even More Applications

Best Performance in the World*1

*1. For performance (sensing distance and minimum sensing object) based on November 2013 OMRON investigation.

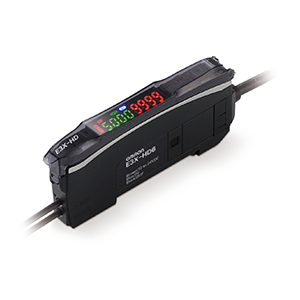

*2. Compared with E3X-HD.

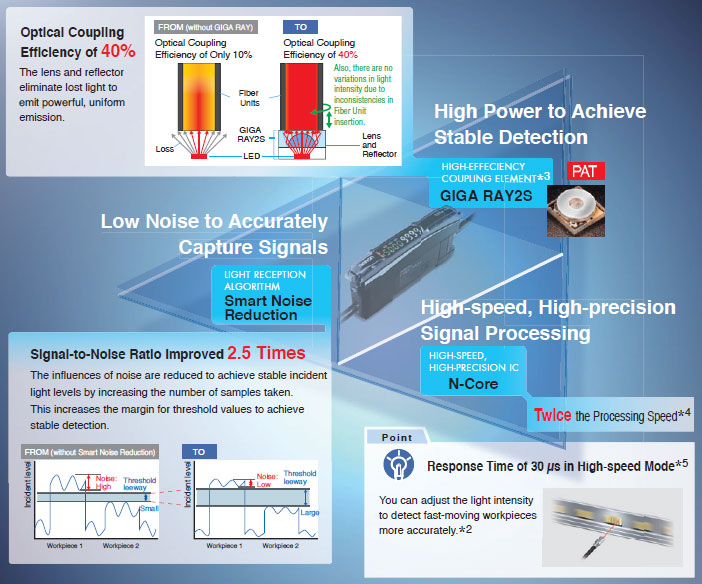

Three Technologies That Support High Performance

Please click image to enlarge (open in a new window).

*3. Compared with E3X-HD for normal operation processing.
*4. Model with 1 output: 30 μs, model with 2 outputs: 32 μs.

Ultra-easy

Easily Handle a Wide Range of Applications with the Press of a Single Button

Consistent Settings for All Users

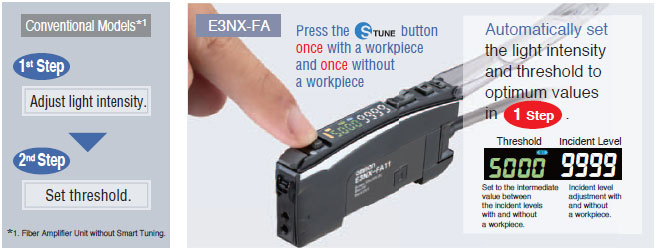

Smart Tuning Settings [PAT.P]

Automatic Adjustment to Optimum Incident Level

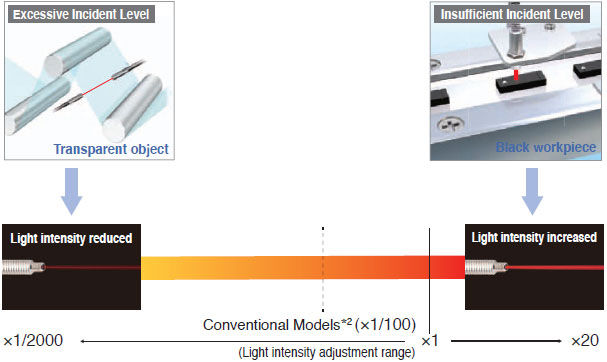

Wide Light Intensity Adjustment Range from Transparent Objects to Black Workpieces

Wider light intensity adjustment range of 40,000 times (Conventional models*2: 2,000 times) You can automatically adjust the light intensity to an optimum value for stable detection even with saturated or insufficient incident light.
*2. E3X-HD

Ultra-reliable

Two Decision Support Functions to Help You

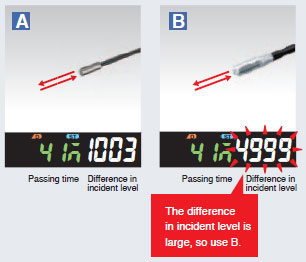

Visual Displays of the Passing Time and Difference in Incident Levels.
Solution Viewer [PAT.P]

Selecting Fiber Units

Just about anyone can make a quantitative decision without special skills.

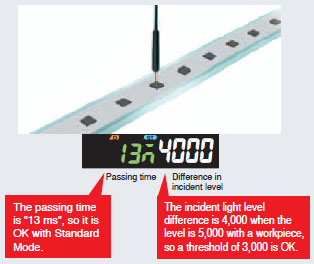

Setting Optimum Thresholds and Modes

You can see the passing time and difference in incident levels to facilitate manual setup.

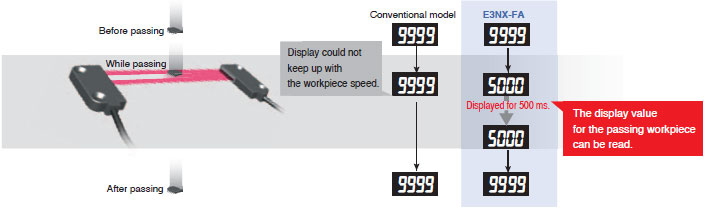

Visual Information for Fast Workpieces
Change Finder [PAT.P]

You can confirm changes in displayed values for fast workpieces to accurately set the threshold.

Please click image to enlarge (open in a new window).

Point

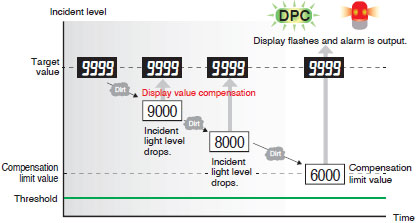

Advanced DPC (Dynamic Power Control) [PAT.P]

Predictive Maintenance to Reduce Downtime

An alarm output* has been added to the DPC that automatically compensates differences in the incident level. A maintenance signal is output when the incident level drops due to dirt or vibration for use in predictive maintenance. (We recommend DPC for through-beam or retro-reflective models.)
*An alarm output is supported only on models with two outputs.

last update: January 06, 2016

Type		Standard models
NPN output		E3NX-FA11	E3NX-FA6
PNP output		E3NX-FA41	E3NX-FA8
Connecting method		Pre-wired	Wire-saving Connector
Inputs/ outputs	Outputs	1 output
Inputs/ outputs	External inputs	---
Light source (wavelength)		Red, 4-element LED (625 nm)
Power supply voltage		10 to 30 VDC, including 10% ripple (p-p)
*Power consumption 2**		At Power supply voltage of 24 VDC Standard Models: 　Normal mode: 840 mW max. (Current consumption at 35 mA max.) 　Eco function ON: 650 mW max. (Current consumption at 27 mA max.) 　Eco function LO: 750 mW max. (Current consumption at 31 mA max.) Advanced Models or Model for Sensor Communications Unit: 　Normal mode: 920 mW max. (Current consumption at 38 mA max.) 　Eco function ON: 680 mW max. (Current consumption at 28 mA max.) 　Eco function LO: 800 mW max. (Current consumption at 33 mA max.)
Control output		Load power supply voltage: 30 VDC max., open-collector output Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.
External inputs		---
Indicators		7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits		Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
Response time	Super-high-speed mode (SHS) *4	Operate or reset for model with 1 output: 30 μs, with 2 outputs: 32 μs
	High-speed mode (HS)	Operate or reset: 250 μs
	Standard mode (Stnd)	Operate or reset: 1 ms
	Giga-power mode (GIGA)	Operate or reset: 16 ms
Sensitivity adjustment		Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units		30
No. of Units for mutual interference prevention	Super-high-speed mode (SHS) *4	0
	High-speed mode (HS)	10
	Standard mode (Stnd)	10
	Giga-power mode (GIGA)	10
Functions	Automatic power control (APC)	Always enabled.
	Dynamic power control (DPC)	Provided
	Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
	Zero reset	Negative values can be displayed. (Threshold value is shifted.)
	*Resetting settings 6**	Select from initial reset (factory defaults) or user reset (saved settings).
	*Eco mode 7**	Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
	Bank switching	Select from banks 1 to 4.
	Power tuning	Select from ON or OFF.
	Output 1	Select from normal detection mode or area detection mode.
	Output 2	---
	External input	---
	Hysteresis width	Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side)		Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range ∗8		Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range		Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude		2,000 m max.
Installation environment		Pollution degree 3 (as per IEC 60947-1)
Insulation resistance		20 MΩ min. (at 500 VDC)
Dielectric strength		1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)		10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only)		Approx. 115 g/approx. 75 g	Approx. 60g/approx. 20g
Materials	Case	Polycarbonate (PC)
	Cover	Polycarbonate (PC)
	Cable	PVC
Accessories		Instruction Manual

Type		Advanced models					Model for Sensor Commu- nications Unit
NPN output		E3NX-FA21	E3NX- FA7	E3NX- FA7TW	E3NX- FA24	---	E3NX-FA0
PNP output		E3NX-FA51	E3NX- FA9	E3NX- FA9TW	E3NX- FA54	E3NX- FA54TW	E3NX-FA0
Connecting method		Pre-wired	Wire-saving Connector		M8 Connector		Connector for Sensor Commu- nications Unit
Inputs/ outputs	Outputs	2 outputs	1 output	2 outputs	1 output	2 outputs	--- *1
Inputs/ outputs	External inputs	1 input	1 input	---	1 input	---	--- *1
Light source (wavelength)		Red, 4-element LED (625 nm)
Power supply voltage		10 to 30 VDC, including 10% ripple (p-p)					Supplied from the connector through the Sensor Communications Unit
*Power consumption 2**		At Power supply voltage of 24 VDC Standard Models: 　Normal mode: 840 mW max. (Current consumption at 35 mA max.) 　Eco function ON: 650 mW max. (Current consumption at 27 mA max.) 　Eco function LO: 750 mW max. (Current consumption at 31 mA max.) Advanced Models or Model for Sensor Communications Unit: 　Normal mode: 920 mW max. (Current consumption at 38 mA max.) 　Eco function ON: 680 mW max. (Current consumption at 28 mA max.) 　Eco function LO: 800 mW max. (Current consumption at 33 mA max.)
Control output		Load power supply voltage: 30 VDC max., open-collector output Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.					---
External inputs		Refer to *3.		---	Refer to *3.	---
Indicators		7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits		Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection					Power supply reverse polarity protection and output short- circuit protection
Response time	Super-high- speed mode (SHS) *4	Operate or reset for model with 1 output: 30 μs, with 2 outputs: 32 μs
	High-speed mode (HS)	Operate or reset: 250 μs
	Standard mode (Stnd)	Operate or reset: 1 ms
	Giga-power mode (GIGA)	Operate or reset: 16 ms
Sensitivity adjustment		Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units		30					With E3NW-ECT: 30 units *5 With E3NW-CRT: 16 units With E3NW-CCL: 16 units
No. of Units for mutual in- terference prevention	Super-high- speed mode (SHS) *4	0
	High-speed mode (HS)	10
	Standard mode (Stnd)	10
	Giga-power mode (GIGA)	10
Functions	Automatic power control (APC)	Always enabled.
	Dynamic power control (DPC)	Provided
	Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
	Zero reset	Negative values can be displayed. (Threshold value is shifted.)
	Resetting settings *6	Select from initial reset (factory defaults) or user reset (saved settings).
	*Eco mode 7**	Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
	Bank switching	Select from banks 1 to 4.
	Power tuning	Select from ON or OFF.
	Output 1	Select from normal detection mode or area detection mode.
	Output 2	Select from normal detection mode, alarm output mode, or error output mode	---	Select from normal detection mode, alarm output mode, or error output mode	---	Select from normal detection mode, alarm output mode, or error output mode.
	External input	Select from input OFF, tuning, power tuning, emission OFF, zero reset, or bank switching.		---	Select from input OFF, tuning, power tuning, emission OFF, zero reset, or bank switching.	---
	Hysteresis width	Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side)		Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range ∗8		Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)					Operating: Groups of 1 or 2 Amplifier Units: 0 to 55°C, Groups of 3 to 10 Amplifier Units: 0 to 50°C, Groups of 11 to 16 Amplifier Units: 0 to 45°C, Groups of 17 to 30 Amplifier Units: 0 to 40°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range		Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude		2,000 m max.
Installation environment		Pollution degree 3 (as per IEC 60947-1)
Insulation resistance		20 MΩ min. (at 500 VDC)
Dielectric strength		1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)		10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s² for 3 times each in X, Y, and Z directions					150 m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Sensor only)		Approx. 115 g/ approx. 75 g	Approx. 60g/ approx. 20g		Approx. 65 g/approx. 25 g
Materials	Case	Polycarbonate (PC)
	Cover	Polycarbonate (PC)
	Cable	PVC
Accessories		Instruction Manual

*1. Two sensor outputs are allocated in the programmable logic controller PLC I/O table.
PLC operation via Communications Unit enables reading detected values and changing settings.
*2. At Power supply voltage of 10 to 30 VDC
Standard Models:
Normal mode : 990 mW max. (Current consumption: 33 mA max. at 30 VDC, 65 mA max. at 10 VDC)
Eco function ON : 780 mW max. (Current consumption: 26 mA max. at 30 VDC, 42 mA max. at 10 VDC)
Eco function LO : 840 mW max. (Current consumption: 28 mA max. at 30 VDC, 45 mA max. at 10 VDC)
Advanced Models:
Normal mode : 1,020 mW max. (Current consumption: 34 mA max. at 30 VDC, 67 mA max. at 10 VDC)
Eco function ON : 810 mW max. (Current consumption: 27 mA max. at 30 VDC, 44 mA max. at 10 VDC)
Eco function LO : 870 mW max. (Current consumption: 29 mA max. at 30 VDC, 48 mA max. at 10 VDC)
*3. The following details apply to the input.

	Contact input (relay or switch)	Non-contact input (transistor)	*Input time3-1**
NPN	ON: Shorted to 0 V (Sourcing current: 1 mA max.). OFF: Open or shorted to Vcc.	ON: 1.5 V max. (Sourcing current: 1 mA max.) OFF: Vcc - 1.5 V to Vcc (Leakage current: 0.1 mA max.)	ON: 9 ms min. OFF: 20 ms min.
PNP	ON: Shorted to Vcc (Sinking current: 3 mA max.). OFF: Open or shorted to 0 V.	ON: Vcc - 1.5 V to Vcc (Sinking current: 3 mA max.) OFF: 1.5 V max. (Leakage current: 0.1 mA max.)	ON: 9 ms min. OFF: 20 ms min.

*3-1.Input time is 25 ms (ON)/(OFF) only when (in tUnE) or (in PtUn) input is selected.

*4. The mutual interference prevention function is disabled if the detection mode is set to super-high-speed mode.
*5. When connected to an OMRON NJ-series Controller.
*6. The bank is not reset by the user reset function or saved by the user save function.
*7. Eco LO is supported for Amplifier Units manufactured in July 2014 or later.
*8. When the number of connected units is 11 or more, the ambient temperature is less than 50°C.

Sensing Distances

Threaded Models

Sensing method	Sensing direction	Size	Model	Sensing distance (mm)
Sensing method	Sensing direction	Size	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Right-angle	M4	E32-T11N 2M	3,000	1,500	1,050	280
	Right-angle		E32-LT11N 2M	4,000*1	4,000*1	3,450	920
	Straight		E32-T11R 2M	3,000	1,500	1,050	280
			E32-LT11 2M	4,000*1	4,000*1	4,000*1	1,080
			E32-LT11R 2M	4,000*1	4,000*1	3,450	920
Reflective	Right-angle	M3	E32-C31N 2M	160	75	69	14
		M3	E32-C21N 2M	440	190	130	39
		M4	E32-D21N 2M	1,260	520	360	100
		M6	E32-C11N 2M	1,170	520	480	100
		M6	E32-LD11N 2M	1,260	520	360	100
	Straight	M3	E32-D21R 2M	210	90	60	16
			E32-C31 2M	490	220	150	44
			E32-C31M 1M	490	220	150	44
		M4	E32-D211R 2M	210	90	60	16
		M6	E32-D11R 2M	1,260	520	360	100
			E32-CC200 2M	2,100	900	600	180
			E32-LD11 2M	1,290	540	370	110
			E32-LD11R 2M	1,260	520	360	100

Cylindrical Models

Sensing method	Size	Sensing direction	Model	Sensing distance (mm)
Sensing method	Size	Sensing direction	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	1 dia.	Top-view	E32-T223R 2M	670	370	220	60
	1.5 dia.		E32-T22B 2M	1,020	600	330	90
	3 dia.		E32-T12R 2M	3,000	1,500	1,050	280
	3 dia.	Side-view	E32-T14LR 2M	1,120	670	390	100
Reflective	1.5 dia.	Top-view	E32-D22B 2M	210	90	60	16
	1.5 dia. + 0.5 dia.		E32-D43M 1M	42	18	12	4
	3 dia.		E32-D22R 2M	210	90	60	16
			E32-D221B 2M	450	210	130	40
			E32-D32L 2M	1,050	450	300	90
	3 dia. + 0.8 dia.		E32-D33 2M	100	45	30	8

Flat Models

Sensing method	Sensing direction	Model	Sensing distance (mm)
Sensing method	Sensing direction	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Top-view	E32-T15XR 2M	3,000	1,500	1,050	280
	Side-view	E32-T15YR 2M	1,120	670	390	100
	Flat-view	E32-T15ZR 2M	1,120	670	390	100
Reflective	Top-view	E32-D15XR 2M	1,260	520	360	100
	Side-view	E32-D15YR 2M	300	150	78	24
	Flat-view	E32-D15ZR 2M	300	150	78	24

Sleeve Models

Sensing method	Sensing direction	Model	Sensing distance (mm)
Sensing method	Sensing direction	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Side-view	E32-T24R 2M	250	150	75	20
	Side-view	E32-T24E 2M	670	370	220	60
	Top-view	E32-T33 1M	220	130	75	20
		E32-T21-S1 2M	760	450	250	68
		E32-TC200BR 2M	3,000	1,500	1,050	280
Reflective	Side-view	E32-D24R 2M	100	45	30	8
	Side-view	E32-D24-S2 2M	180	79	67	14
	Top-view	E32-D43M 1M	42	18	12	4
		E32-D331 2M	21	9	6	2
		E32-D33 2M	100	45	30	8
		E32-D32-S1 0.5M	94	40	27	7
		E32-D31-S1 0.5M	94	40	27	7
		E32-DC200F4R 2M	210	90	60	16
		E32-D22-S1 2M	370	160	100	30
		E32-D21-S3 2M	370	160	100	30
		E32-DC200BR 2M	1,260	520	360	100
		E32-D25-S3 2M	370	160	100	30

Small-spot, Reflective Models

Type	Spot diameter	Center distance (mm)	Models	Sensing distance (mm)
Type	Spot diameter	Center distance (mm)	Models	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Variable spot	0.1 to 0.6 dia.	6 to 15	E32-C42 1M + E39-F3A	Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
Variable spot	0.3 to 1.6 dia.	10 to 30	E32-C42 1M + E39-F17	Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel light	4 dia.	0 to 20	E32-C31 2M + E39-F3C	Spot diameter of 4 mm max. at 0 to 20 mm.
Parallel light	4 dia.	0 to 20	E32-C31N 2M + E39-F3C	Spot diameter of 4 mm max. at 0 to 20 mm.
Integrated lens	0.1 dia.	5	E32-C42S 1M	Spot diameter of 0.1 mm at 5 mm.
Integrated lens	6 dia.	50	E32-L15 2M	Spot diameter of 6 mm at 50 mm.
Small- spot	0.1 dia.	7	E32-C41 1M + E39-F3A-5	Spot diameter of 0.1 mm at 7 mm.
	0.5 dia.		E32-C31 2M + E39-F3A-5	Spot diameter of 0.5 mm at 7 mm.
	0.5 dia.		E32-C31N 2M + E39-F3A-5	Spot diameter of 0.5 mm at 7 mm.
	0.2 dia.	17	E32-C41 1M + E39-F3B	Spot diameter of 0.2 mm at 17 mm.
	0.5 dia.		E32-C31 2M + E39-F3B	Spot diameter of 0.5 mm at 17 mm.
	0.5 dia.		E32-C31N 2M + E39-F3B	Spot diameter of 0.5 mm at 17 mm.
	3 dia.	50	E32-CC200 2M + E39-F18	Spot diameter of 3 mm at 50 mm.
	3 dia.	50	E32-C11N 2M + E39-F18	Spot diameter of 3 mm at 50 mm.

High-power Beam Models

Type	Sensing direction	Center distance (mm)	Models	Sensing distance (mm)
Type	Sensing direction	Center distance (mm)	Models	Giga mode	Standard mode	High- speed mode	Super- high- speed mode
Through-beam models with integrated lens	Right-angle	15°	E32-LT11N 2M	4,000*2	4,000*2	3,450	920
	Top-view	10°	E32-T17L 10M	20,000 *1	20,000 *1	20,000 *1	8,000
		15°	E32-LT11 2M	4,000 *2	4,000 *2	4,000 *2	1,080
		15°	E32-LT11R 2M	4,000 *2	4,000 *2	3,450	920
	Side-view	30°	E32-T14 2M	4,000 *2	4,000 *2	4,000 *2	1,800
Through-beam models with lenses	Right-angle	12°	E32-T11N 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	2,000
	Right-angle	6°	E32-T11N 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	3,600
	Top-view	12°	E32-T11R 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	2,000
	Top-view	6°	E32-T11R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	3,600
	Side-view	60°	E32-T11R 2M + E39-F2	2,170	1,200	750	200
	Top-view	12°	E32-T11 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,860
	Top-view	6°	E32-T11 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	4,000 *2
	Side-view	60°	E32-T11 2M + E39-F2	3,450	1,980	1,290	320
	Top-view	12°	E32-T51R 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,500
	Top-view	6°	E32-T51R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	4,000 *2
	Side-view	60°	E32-T51R 2M + E39-F2	2,100	1,080	750	200
	Top-view	12°	E32-T81R-S 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,000
	Top-view	6°	E32-T81R-S 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,800
	Side-view	60°	E32-T81R-S 2M + E39-F2	1,500	820	540	140
	Top-view	12°	E32-T61-S 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,800
	Top-view	6°	E32-T61-S 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	3,100
	Side-view	60°	E32-T61-S 2M + E39-F2	2,520	1,350	900	240
	Top-view	12°	E32-T51 2M + E39-F1-33	4,000 *2	4,000 *2	3,450	1,400
	Top-view	6°	E32-T51 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	4,000 *2
Reflective models with integrated lens	Top-view	4°	E32-D16 2M	40 to 4,000 *2	40 to 2,100	40 to 1,350	40 to 480

*1. The fiber length is 10 m on each side, so the sensing distance is given as 20,000 mm.
*2. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Narrow View Models

Sensing method	Sensing direction	Aperture angle	Model	Sensing distance (mm)
Sensing method	Sensing direction	Aperture angle	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Side-view	1.5°	E32-A03 2M	4,000 *1	2,670	1,800	500
		1.5°	E32-A03-1 2M	4,000 *1	2,670	1,800	500
		3.4°	E32-A04 2M	1,920	1,020	670	200
		4°	E32-T24SR 2M	4,000 *1	3,300	2,190	580
			E32-T24S 2M	4,000 *1	3,900	2,610	700
			E32-T22S 2M	4,000 *1	4,000 *1	3,750	1,000

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Models for Detection without Background Interference

Sensing method	Sensing direction	Model	Sensing distance (mm)
Sensing method	Sensing direction	Model	Giga mode	Standard mode	High-speed mode	Super-high-speed mode
Limited- reflective	Flat-view	E32-L16-N 2M	0 to 15			0 to 12
	Flat-view	E32-L24S 2M	0 to 4
	Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)

Transparent Object Detection (Retro-reflective Models)

Sensing method	Feature	Size	Models	Sensing distance (mm)
Sensing method	Feature	Size	Models	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Retro- reflective	Film detection	M3	E32-C31 2M + E39-F3R + E39-RP37	370		300	---
	Square	---	E32-R16 5M	150 to 1,500
	Threaded	M6	E32-R21 2M	10 to 370			10 to 250
	Hex-shaped	M6	E32-LR11NP 2M + E39-RP1	2,020	1,800	1,500	550

Transparent Object Detection (Limited-reflective Models)

Sensing method	Feature	Sensing direction	Model	Sensing distance (mm)
Sensing method	Feature	Sensing direction	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Limited- reflective	Small size	Flat-view	E32-L24S 2M	0 to 4
	Standard		E32-L16-N 2M	0 to 15			0 to 12
	Glass substrate alignment, 70°C		E32-A08 2M	10 to 20			---
	Standard/long-distance		E32-A12 2M	12 to 30			---
	Side-view form	Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)
	Glass substrate mapping, 70°C	Top-view	E32-A09 2M	15 to 38			---

Chemical-resistant, Oil-resistant Models

Sensing method	Type	Sensing direction	Model	Sensing distance (mm)
Sensing method	Type	Sensing direction	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Oil-resistant	Right-angle	E32-T11NF 2M	4,000 *1	4,000 *1	4,000 *1	2,200
	Chemical/ oil-resistant	Top-view	E32-T12F 2M	4,000 *1	4,000 *1	4,000 *1	1,600
		Top-view	E32-T11F 2M	4,000 *1	4,000 *1	3,900	1,000
		Side-view	E32-T14F 2M	2,100	1,200	750	200
	Chemical/ oil-resistant at 150°C	Top-view	E32-T51F 2M	4,000 *1	4,000 *1	2,700	700

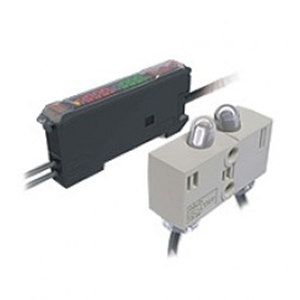

Reflective	Semiconductors: Cleaning, developing, and etching; 60°C	Top-view	E32-L11FP 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 19 to 31 mm from center of mounting hole A (Recommended sensing distance: 22 mm)
	Semiconductors: Resist stripping; 85°C		E32-L11FS 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 32 to 44 mm from center of mounting hole A (Recommended sensing distance: 35 mm)
	Chemical/ oil-resistant		E32-D12F 2M	--- *2	280	190	60
	Chemical- resistant cable		E32-D11U 2M	1,260	520	360	100

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.
*2. Even if there is no sensing object, the Sensor will detect light that is reflected by the fluororesin.

Bending-resistant Models

Sensing method	Size	Model	Sensing distance (mm)
Sensing method	Size	Model	Giga mode	Standard mode	High-speed mode	Super-high-speed mode
Through-beam	1.5 dia.	E32-T22B 2M	1,020	600	330	90
	M3	E32-T21 2M	1,020	600	330	90
	M4	E32-T11 2M	3,750	2,020	1,350	360
	Square	32-T25XB 2M	750	450	250	70
Reflective	1.5 dia.	E32-D22B 2M	210	90	60	16
	M3	E32-D21 2M	210	90	60	16
	3 dia.	E32-D221B 2M	450	210	130	40
	M4	E32-D21B 2M	450	210	130	40
	M6	E32-D11 2M	1,260	520	360	100
	Square	E32-D25XB 2M	360	150	90	30

Heat-resistant Models

Sensing method	Heat-resistant temperature	Model	Sensing distance (mm)
Sensing method	Heat-resistant temperature	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	100°C	E32-T51R 2M	2,400	1,200	840	225
	150°C	E32-T51 2M	4,000 *1	2,250	1,500	400
	200°C	E32-T81R-S 2M	1,500	820	540	140
	350°C	E32-T61-S 2M	2,520	1,350	900	240
Reflective	100°C	E32-D51R 2M	1,000	420	280	80
	150°C	E32-D51 2M	1,680	670	480	144
	200°C	E32-D81R-S 2M	630	270	180	54
	300°C	E32-A08H2 2M	10 to 20			---
	300°C	E32-A09H2 2M	20 to 30 (center 25)			---
	350°C	E32-D611-S 2M	630	270	180	54
	350°C	E32-D61-S 2M	630	270	180	54
	400°C	E32-D73-S 2M	420	180	120	36

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Area Detection Models

Sensing method	Type	Sensing width	Model	Sensing distance (mm)
Sensing method	Type	Sensing width	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	Area	11 mm	E32-T16PR 2M	4,000 *1	2,550	1,680	440
		11 mm	E32-T16JR 2M	4,000 *1	2,250	1,440	380
		30 mm	E32-T16WR 2M	4,000 *1	3,900	2,550	680
Reflective	Array	11 mm	E32-D36P1 2M	1,050	450	300	90

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Liquid-level Detection Models

Sensing method	Tube diameter	Feature	Model	Sensing distance (mm)
Sensing method	Tube diameter	Feature	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Tube- mounting	3.2, 6.4, or 9.5 dia	Stable residual quantity detection	E32-A01 5M	Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm, Recommended wall thickness: 1 mm
	8 to 10 dia	Mounting at multiple levels	E32-L25T 2M	Applicable tube: Transparent tube with a diameter of 8 to 10 mm, Recommended wall thickness: 1 mm
	No restrictions	Large tubes	E32-D36T 5M	Applicable tube: Transparent tube (no restrictions on diameter)
Liquid contact (heat-resistant up to 200°C)	---	---	E32-D82F1 4M	Liquid-contact type

Vacuum-resistant Models

Sensing method	Heat-resistant temperature	Model	Sensing distance (mm)
Sensing method	Heat-resistant temperature	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through-beam	120 °C	E32-T51V 1M	1,080	600	390	100
	120 °C	E32-T51V 1M + E39-F1V	2,000 *1	2,000 *1	2,000 *1	520
	200 °C	E32-T84SV 1M	2,000*1	1,420	960	260

*1. The fiber length is 1 m on each side, so the sensing distance is given as 2,000 mm.

Models for FPD, Semiconductors, and Solar Cells

Sensing method	Application	Operating temperature	Model	Sensing distance (mm)
Sensing method	Application	Operating temperature	Model	Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Limited- reflective	Glass presence detection	70°C	E32-L16-N 2M	0 to 15			0 to 12
	Glass presence detection	70°C	E32-A08 2M	10 to 20			---
	Glass substrate alignment	300°C	E32-A08H2 3M	10 to 20			---
	Glass substrate alignment	70°C	E32-A12 2M	12 to 30			---
	Glass substrate mapping	70°C	E32-A09 2M	15 to 38			---
	Glass substrate mapping	300°C	E32-A09H2 2M	20 to 30 (center 25)			---
	Wet processes: Cleaning, Resist developing and etching	60°C	E32-L11FP 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 19 to 31 mm from center of mounting hole A (Recommended sensing distance: 22 mm)
	Wet process: Resist stripping	85°C	E32-L11FS 5M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 32 to 44 mm from center of mounting hole A (Recommended sensing distance: 35 mm)
Through- beam	Wafer mapping	70°C	E32-A03 2M	4,000 *1	2,670	1,800	500
			E32-A03-1 2M	4,000 *1	2,670	1,800	500
			E32-A04 2M	1,920	1,020	670	200
			E32-T24SR 2M	4,000 *1	3,300	2,190	580
			E32-T24S 2M	4,000 *1	3,900	2,610	700

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

last update: January 06, 2016

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Fiber Amplifier Units

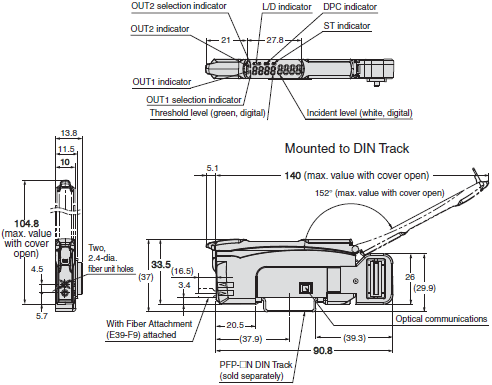

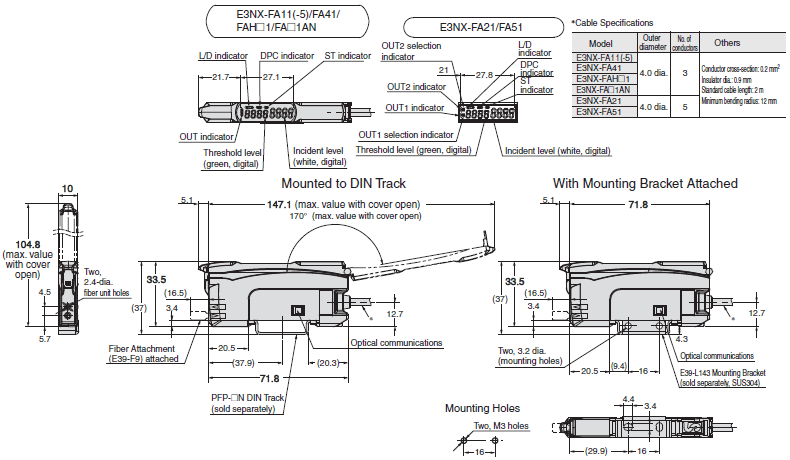

Pre-wired Amplifier Units
E3NX-FA11
E3NX-FA21
E3NX-FA41
E3NX-FA51

Please click image to enlarge (open in a new window).

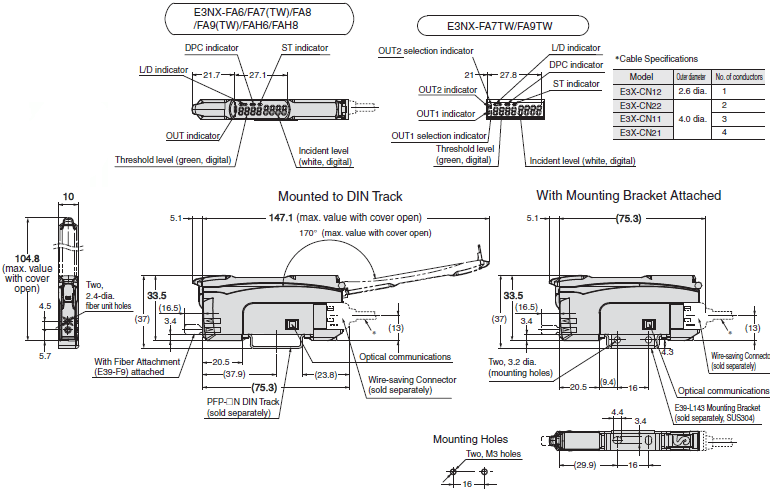

Amplifier Units with Wire-saving Connectors
E3NX-FA6
E3NX-FA7
E3NX-FA7TW
E3NX-FA8
E3NX-FA9
E3NX-FA9TW

Please click image to enlarge (open in a new window).

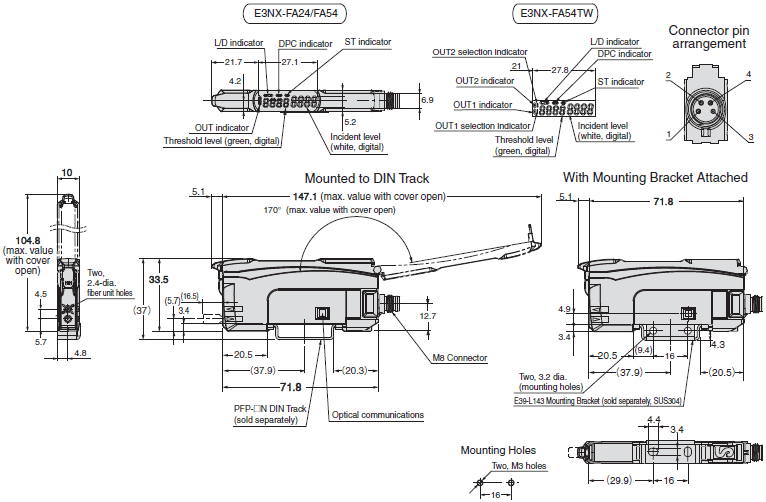

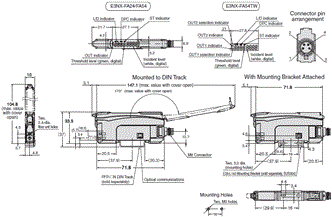

Amplifier Units with M8 Connectors
E3NX-FA24
E3NX-FA54
E3NX-FA54TW

Please click image to enlarge (open in a new window).

Amplifier Unit with Connector for Sensor Communications Unit
E3NX-FA0

Accessories (Sold Separately)

Wire-saving Connectors

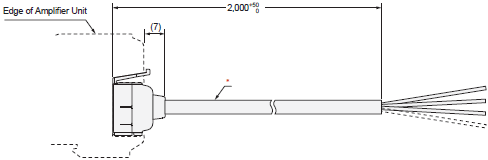

Master Connector
E3X-CN11
E3X-CN21

* E3X-CN11: 4-dia. cable with 3 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)
E3X-CN21: 4-dia. cable with 4 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)

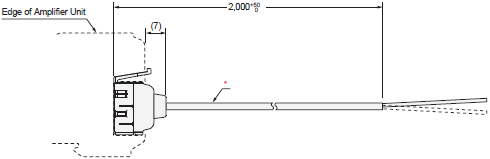

Slave Connector
E3X-CN12
E3X-CN22

* E3X-CN12: 2.6-dia. cable with 1 conductor, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)
E3X-CN22: 4-dia. cable with 2 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24),
Insulator diameter: 1.1 mm)

Sensor I/O Connectors

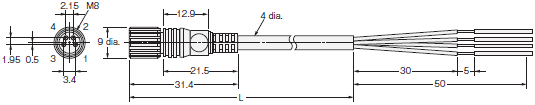

Straight
XS3F-M421-40[]-A

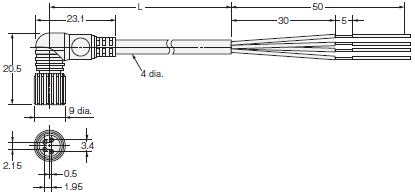

L-shaped
XS3F-M422-40[]-A

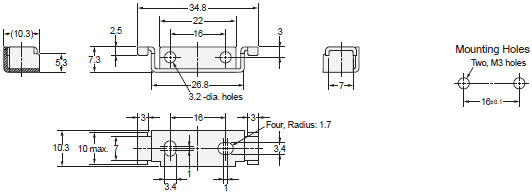

Mounting Bracket
E39-L143

Material: Stainless steel (SUS304)

DIN Track
PFP-100N
PFP-50N

Material: Aluminum
* Dimensions in parentheses are for the PFP-50N.

PFP-100N2

Material: Aluminum

End Plate
PFP-M

Materials: Iron, zinc plating

TITLE	DOCUMENT TYPE	SIZE
E3NX-FA	Catalog	4518 KB
E3NX-FA	Catalog	2705 KB
E3NX-FA Series Smart Fiber Amplifier	Manual	5289 KB
E3NX-FA-AN Smart Fiber Amplifier	Manual	4867 KB
E3NX-FA0 Series Smart Fiber Amplifier	Manual	3916 KB

Ultra-stable

The No. 1 Performance Worldwide*1 for Even More Applications

Best Performance in the World*1

Three Technologies That Support High Performance

Ultra-easy

Easily Handle a Wide Range of Applications with the Press of a Single Button

Consistent Settings for All Users Smart Tuning Settings [PAT.P]

Automatic Adjustment to Optimum Incident Level Wide Light Intensity Adjustment Range from Transparent Objects to Black Workpieces

Ultra-reliable

Two Decision Support Functions to Help You

Visual Displays of the Passing Time and Difference in Incident Levels. Solution Viewer [PAT.P]

Selecting Fiber Units

Setting Optimum Thresholds and Modes

Visual Information for Fast Workpieces Change Finder [PAT.P]

Point Advanced DPC (Dynamic Power Control) [PAT.P]

Predictive Maintenance to Reduce Downtime

Sensing Distances

Threaded Models

Cylindrical Models

Flat Models

Sleeve Models

Small-spot, Reflective Models

High-power Beam Models

Narrow View Models

Models for Detection without Background Interference

Transparent Object Detection (Retro-reflective Models)

Transparent Object Detection (Limited-reflective Models)

Chemical-resistant, Oil-resistant Models

Bending-resistant Models

Heat-resistant Models

Area Detection Models

Liquid-level Detection Models

Vacuum-resistant Models

Models for FPD, Semiconductors, and Solar Cells

Fiber Amplifier Units

Accessories (Sold Separately)

Wire-saving Connectors

Master Connector E3X-CN11 E3X-CN21

Slave Connector E3X-CN12 E3X-CN22

Sensor I/O Connectors

Straight XS3F-M421-40[]-A

L-shaped XS3F-M422-40[]-A

Mounting Bracket E39-L143

DIN Track PFP-100N PFP-50N

PFP-100N2

End Plate PFP-M

Consistent Settings for All Users
Smart Tuning Settings [PAT.P]

Automatic Adjustment to Optimum Incident Level
Wide Light Intensity Adjustment Range from Transparent Objects to Black Workpieces

Visual Displays of the Passing Time and Difference in Incident Levels.
Solution Viewer [PAT.P]

Visual Information for Fast Workpieces
Change Finder [PAT.P]

Point
Advanced DPC (Dynamic Power Control) [PAT.P]

Master Connector
E3X-CN11
E3X-CN21

Slave Connector
E3X-CN12
E3X-CN22

Straight
XS3F-M421-40[]-A

L-shaped
XS3F-M422-40[]-A

Mounting Bracket
E39-L143

DIN Track
PFP-100N
PFP-50N

End Plate
PFP-M
