Autonics, BFC Series
Home > Product > Sensing Solutions > Optical Fiber Sensors > BFC Series
Fiber Optic Communication Converters
BFC Series
Brand:
BFC is a digital fiber optic amplifier communication converter. This communication converter helps BF5 Series to perform various functions including parameter setting and data management using external devices (PC, PLC). This communication converter supports RS485 communication, serial communication and SW input mode. Also, it can be simultaneously connected to up to 32 amplifier units (BF5 Series).

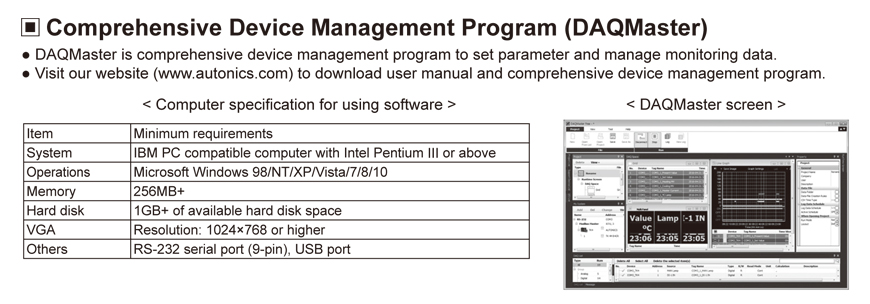

* Sets all Functional performance and parameters from external devices(PL, PLC)
* Supports various communications : RS485 communication, Serial Communication, SW input
* Connected up to 32 amplifier units(BF5 Series)

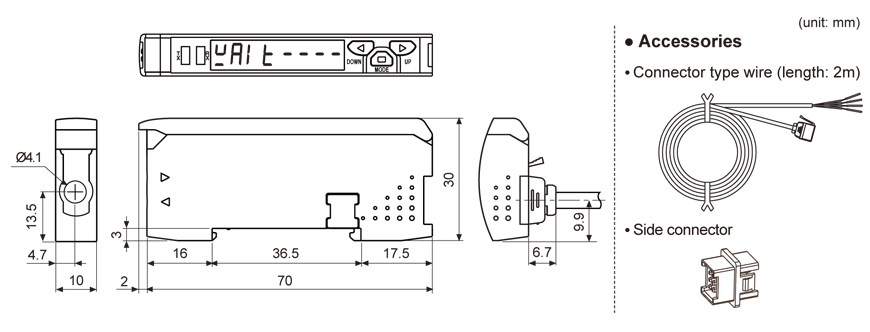

* Slim design with depth 10mm(W10×H30×L70mm)

TITLE DOCUMENT TYPE SIZE
Fiber Optic Sensors (Applications) Catalog 144 KB
Fiber Optic Sensors (Technical Description) Catalog 709 KB
Fiber Optic Sensors (Product Overview) Catalog 1614 KB
Fiber Optic Sensors (Ordering Information) Catalog 240 KB
BFC Series Catalog 1240 KB
Fiber Optic Sensors Selection Guide Manual 2006 KB
BFC Series (Communication Manual) Manual 1565 KB
BFC Series Manual 724 KB
