Omron, E2FM Series

One-piece completely stainless-steel housing with a face thickness of 0.8 mm

The face thickness is approximately 4 times that of previous models (E2ES) to enable sensing in even more severe conditions than ever.

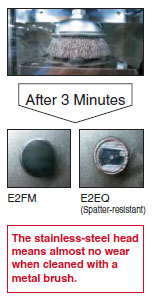

Brush Test

Continuous Impact Test

Chemical and Detergent Proof

The one-piece completely stainlesssteel housing of the sensing section withstands the following chemicals better.

• Sodium chloride
• Gasoline
• Dilute sodium hydroxide
• Dilute hydrochloric acid
• Mineral oil
• Barium hydroxide
Any many others

Note: Cannot be used for explosion-proof applications

Built-in Chip Immunity

Chip immunity performance has been provided to greatly reduce false signals caused by spatter accumulation and other causes, almost eliminating the needs for cleaning, e.g., with metal brushes.

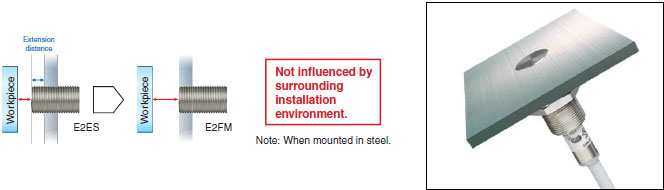

Flush Mounting

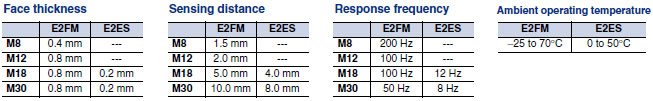

Main Performance Comparison to Previous OMRON Products

The chemical resistance has been certified by Ecolab Europe

last update: November 15, 2012

DC 2-Wire (E2FM-X[]D[])

Size		M8	M12	M18	M30	M12	M18	M30
Shielded		Shielded
Model		E2FM- X1R5D1-[]	E2FM- X2D1-[]	E2FM- X5D1-[]	E2FM- X10D1[]	E2FM- X2D1- M1T1GJ-T	E2FM- X5D1- M1T1GJ-T	E2FM- X10D1- M1T1GJ-T
Sensing distance		1.5 mm±10%	2 mm ±10%	5 mm ±10%	10 mm ±10%	2 mm±10%	5 mm±10%	10 mm±10%
Set distance		0 to 1.05 mm	0 to 1.4 mm	0 to 3.5 mm	0 to 7 mm	0 to 1.4 mm	0 to 3.5 mm	0 to 7 mm
Differential travel		15% max. of sensing distance
Sensing object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
Response frequency *1		200 Hz	100 Hz	100 Hz	50 Hz	100 Hz	100 Hz	50 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current		0.8 mA max.
Output configuration		With polarity				No polarity
Control output	Switching capacity	3 to 100 mA
Control output	Residual voltage	3 V max. (Load current: 100 mA max., Cable length: 2 m)				5 V max. (Load current: 100 mA max., Cable length: 2 m)
Indicators		Operation indicator (red LED), Setting/Operation indicator (green LED)
Operation mode (with sensing object approaching)		NO *2
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±20% max. of sensing distance at 23°C in the temperature range of -25 to 70°C.
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s² 10 times each in X, Y, and Z directions	Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67
Connection method		Unmarked: Pre-wired Models (Standard cable length: 2 m) Models ending with -M1GJ-[]: Pre-wired Connector Models (Standard cable length: 300 mm)
Weight (packed state)	Pre-wired Models (2 m)	Approx. 105 g	Approx. 190 g	Approx. 215 g	Approx. 295 g	---	---	---
Weight (packed state)	Pre-wired Connector Models	Approx. 65 g	Approx. 85 g	Approx. 110 g	Approx. 190 g	Approx. 85 g	Approx. 110 g	Approx. 190 g
Mate- rials	Case	Stainless steel (SUS303)
	Sensing surface (thickness)	Stainless steel (SUS303)
	Sensing surface (thickness)	(0.4 mm)	(0.8 mm)			(0.8 mm)
	Clamping nuts	Stainless steel (SUS303)
	Cable	PVC (flame retardant)
	Toothed washer	Zinc-plated iron
Accessories		Instruction manual

*1. The response frequency of the DC switching section is an average value. Measurement conditions are as follows:
standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing
distance.
*2. NC (normally closed) models are also available. Contact your OMRON representative.

DC 3-Wire (E2FM-X[]C[], E2FM-X[]B[])

Size		M8	M12	M18	M30
Shielded		Shielded
Model		E2FM-X1R5[]	E2FM-X2[]	E2FM-X5[]	E2FM-X10[]
Sensing distance		1.5 mm±10%	2 mm±10%	5 mm±10%	10 mm±10%
Set distance		0 to 1.05 mm	0 to 1.4 mm	0 to 3.5 mm	0 to 7 mm
Differential travel		15% max. of sensing distance
Sensing object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
*Response frequency 1**		200 Hz	100 Hz	100 Hz	50 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption		10 mA max.
Output configuration		PNP open collector output
Control output	Switching capacity	200 mA max.
Control output	Residual voltage	2 V max. (Load current: 200 mA, Cable length: 2 m)
Indicators		Operation indicator (yellow LED)
Operation mode (with sensing object approaching)		C1 Models: NPN open collector, NO (normally open) 2 B1 Models: PNP open collector, NO (normally open) 2
Protection circuits		Reversed power supply polarity protection, Surge suppressor, Load short-circuit protection, and Reversed output polarity protection (except the E2FM-X1R5B1-M1)
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±20% max. of sensing distance at 23°C in the temperature range of -25 to 70°C.
Voltage influence		±1% max. of sensing distance in the rated voltage ±15% range (using the sensing distance at the rated voltage as standard)
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s² 10 times each in X, Y, and Z directions	Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67
Connection method		Unmarked: Pre-wired Models (Standard cable length: 2 m) Models ending with -M1: Connector Models
Weight (packed state)	Pre-wired Models (2 m)	---	Approx. 170 g	Approx. 190 g	Approx. 275 g
Weight (packed state)	Pre-wired Connector Models	Approx. 45 g	Approx. 55 g	Approx. 75 g	Approx. 160 g
Materials	Case	Stainless steel (SUS303)
	Sensing surface	Stainless steel (SUS303)
	(thickness)	(0.4 mm)	(0.8 mm)
	Clamping nuts	Stainless steel (SUS303)
	Toothed washer	Zinc-plated iron
Accessories		Instruction manual

last update: November 15, 2012

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

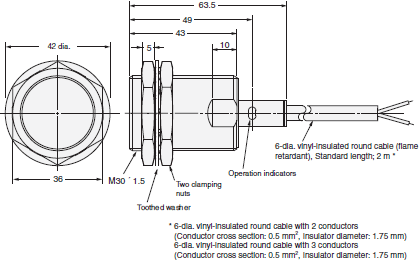

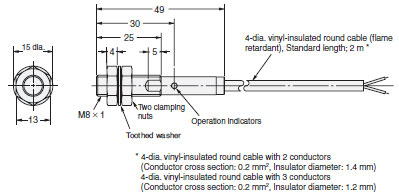

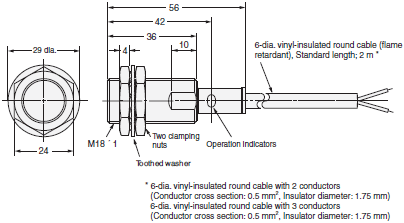

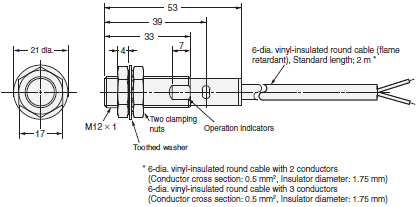

Pre-wired Models

E2FM-X1R5[]

E2FM-X2[]

E2FM-X5[]

E2FM-X10[]

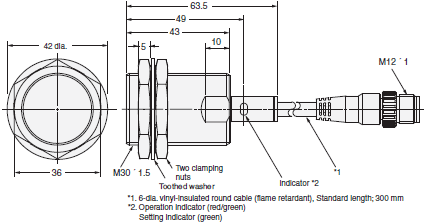

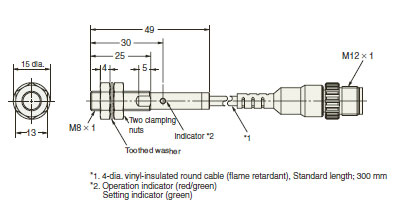

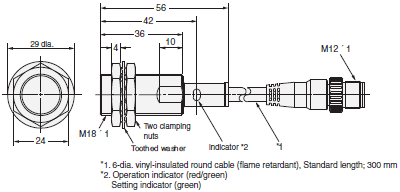

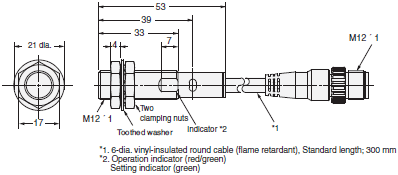

Pre-wired Connector Models

E2FM-X1R5D[]-M1TGJ-[]

E2FM-X2D[]-M1TGJ-[]

E2FM-X5D[]-M1TGJ-[]

E2FM-X10D[]-M1TGJ-[]

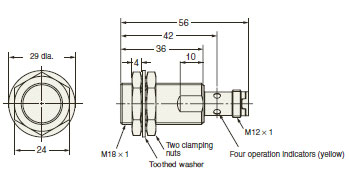

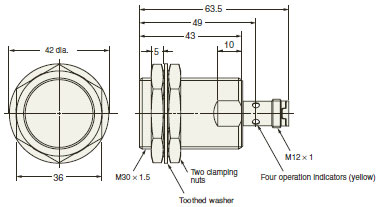

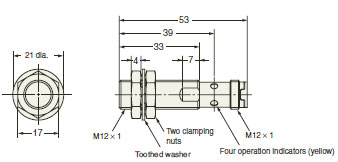

M12 Connector Models

E2FM-X1R5[][]-M1

E2FM-X2[][]-M1

E2FM-X5[][]-M1

E2FM-X10[][]-M1

Mounting Hole Dimensions
