Omron, E2EF Series

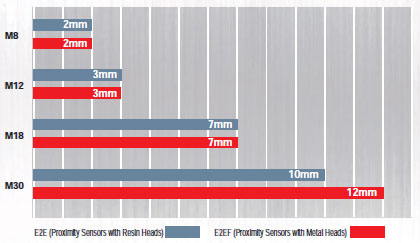

Long-distance Detection*1 Equivalent to or Greater Than Proximity Sensors with Resin Heads

Installation is possible at the same distance as Proximity Sensors with Resin Heads
The metal heads of the E2EF achieve the same distances for the same sizes as the E2E Proximity Sensors with Resin Heads.
This allows you to use Proximity Sensors that withstand friction with the workpiece without major changes to mounting brackets.

*1. The actual sensing distance will vary with the size or material of the object.
For details, refer to Engineering Data.

More than 20 times*2 the durability of Proximity Sensors with Resin Heads.

[Head thickness 0.4 mm *3]

Thick Metal Head That Resists Friction with the Workpiece

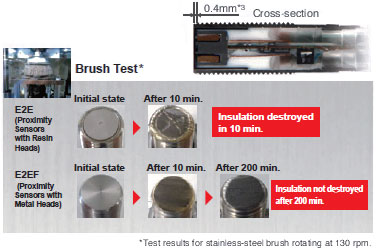

The 0.4-mm*3 metal head exhibits almost no wear due to friction with the workpiece or cleaning with metal brushes.
This helps prevent equipment down time due to sensor failure and reduces the frequency of replacement.

*2. Stainless-steel brush test with M12 model.
*3. For M12 model.

Stable Detection in Harsh Environments with Splatter Resistance and Durability

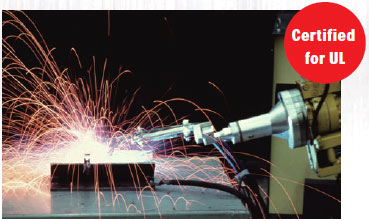

Spatter-resistant models with fluororesin-coated head are also available. Reduces adhesion of spatter to achieve stable detection. The tough all-stainless steel housing with a flame-retardant cable enables reliable application where spatter is present near welding machines.

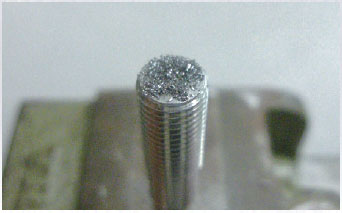

Reduced Cleaning Frequency with Spatter Countermeasures

The spatter countermeasures reduce the risk of malfunction due to the buildup of metal debris or spatter.
Frequent cleaning with metal brushes is not required.

last update: October 04, 2012

Size		M8		M12
Shielded		Shielded
Exterior		Completely stainless- steel housing	Fluororesin coating	Completely stainless- steel housing	Fluororesin coating
Model		E2EF-X2D1 (-M1TGJ)	E2EF-QX2D1 (-M1TGJ)	E2EF-X3D1 (-M1TGJ)	E2EF-QX3D1 (-M1TGJ)
Sensing distance		2mm ± 10%		3mm ± 10%
Set distance		0 to 1.4 mm		0 to 2.1mm
Differential travel		15% max. of sensing distance
Sensing object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object		Iron, 12 × 12 × 1 mm		Iron, 12 × 12 × 1 mm
*Response frequency 1**		200Hz		80Hz
Power supply voltage		10 to 30 VDC, ripple (p-p): 10% max.
Leakage current		0.8 mA max.
Output configuration		With polarity
Control output	Switching capacity	3 to 100 mA
Control output	Residual voltage	3 V max.(Load current: 100 mA max., Cable length: 2 m)
Indicators		Operation indicator (red LED), Setting indicator (green LED)
Operation mode (with sensing object approaching)		NO (normally open)
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		± 20% max. of sensing distance at 23 °C in the temperature range of − 10 to 70 °C.
Voltage influence		± 1% max. of sensing distance at rated voltage in the rated voltage ± 15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s² 10 times each in X, Y, and Z directions		Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67
Connection method		Unmarked: Pre-wired Models (Standard cable length: 2 m) Models ending with -M1TGJ: Pre-wired Connector Models (Standard cable length: 300 mm)
Weight (packed state)	Pre-wired Models (2 m)	Approx. 105 g		Approx. 190 g
Weight (packed state)	Pre-wired Connector Models	Approx. 65 g		Approx. 85 g
Materials	Case	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
	Sensing surface	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
	(thickness)	0.2mm		0.4mm
	Clamping nuts	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
	Toothed washer	Zinc-plated iron
	Cable	PVC (flame retardant)
Accessories		Instruction manual

Size		M18		M30
Shielded		Shielded
Exterior		Completely stainless- steel housing	Fluororesin coating	Completely stainless- steel housing	Fluororesin coating
Model		E2EF-X7D1 (-M1TGJ)	E2EF-QX7D1 (-M1TGJ)	E2EF-X12D1 (-M1TGJ)	E2EF-QX12D1 (-M1TGJ)
Sensing distance		7mm ± 10%		12mm ± 10%
Set distance		0 to 4.9mm		0 to 8.4mm
Differential travel		15% max. of sensing distance
Sensing object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object		Iron, 30 × 30 × 1 mm		Iron, 54 × 54 × 1 mm
*Response frequency 1**		100Hz		50Hz
Power supply voltage		10 to 30 VDC, ripple (p-p): 10% max.
Leakage current		0.8 mA max.
Output configuration		With polarity
Control output	Switching capacity	3 to 100 mA
Control output	Residual voltage	3 V max.(Load current: 100 mA max., Cable length: 2 m)
Indicators		Operation indicator (red LED), Setting indicator (green LED)
Operation mode (with sensing object approaching)		NO (normally open)
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		± 20% max. of sensing distance at 23 °C in the temperature range of − 10 to 70 °C.
Voltage influence		± 1% max. of sensing distance at rated voltage in the rated voltage ± 15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67
Connection method		Unmarked: Pre-wired Models (Standard cable length: 2 m) Models ending with -M1TGJ: Pre-wired Connector Models (Standard cable length: 300 mm)
Weight (packed state)	Pre-wired Models (2 m)	Approx. 215 g		Approx. 295 g
Weight (packed state)	Pre-wired Connector Models	Approx. 110 g		Approx. 190 g
Materials	Case	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
	Sensing surface	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
	(thickness)	0.4mm		0.5mm
	Clamping nuts	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
	Toothed washer	Zinc-plated iron
	Cable	PVC (flame retardant)
Accessories		Instruction manual

*1. The response frequency of the DC switching section is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice thestandard sensing object, and a set distance of half the sensing distance.

last update: October 04, 2012

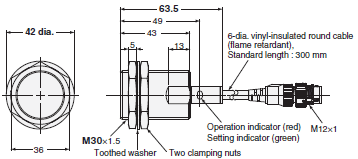

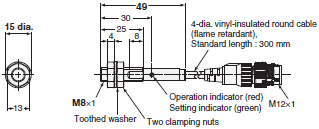

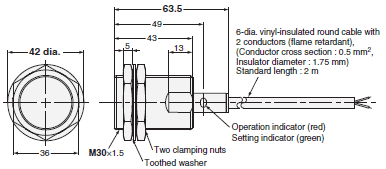

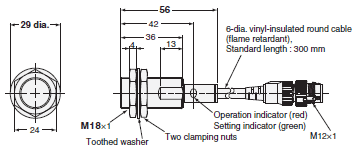

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Pre-wired Models

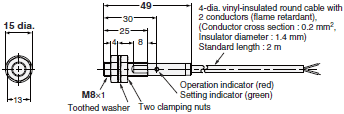

E2EF-X2D1
E2EF-QX2D1

E2EF-X3D1
E2EF-QX3D1

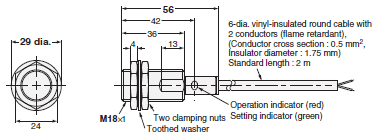

E2EF-X7D1
E2EF-QX7D1

E2EF-X12D1
E2EF-QX12D1

Smartclick Connector Models

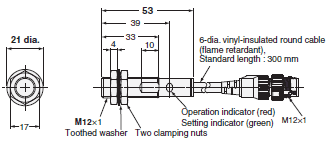

E2EF-X2D1-M1TGJ
E2EF-QX2D1-M1TGJ

E2EF-X3D1-M1TGJ
E2EF-QX3D1-M1TGJ

E2EF-X7D1-M1TGJ
E2EF-QX7D1-M1TGJ

E2EF-X12D1-M1TGJ
E2EF-QX12D1-M1TGJ
