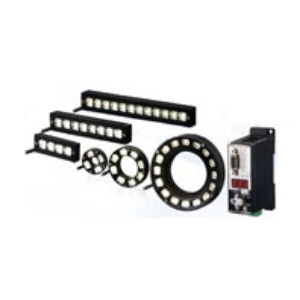

Omron, FLV Series

last update: December 11, 2014

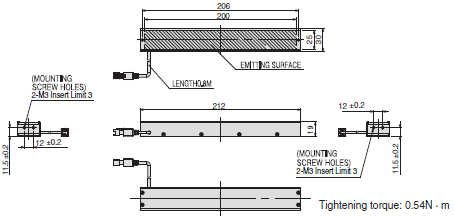

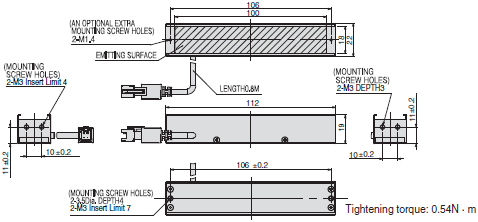

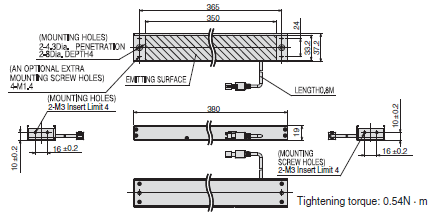

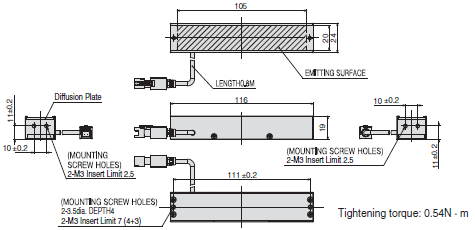

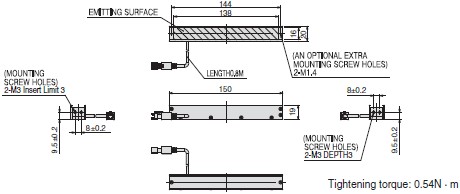

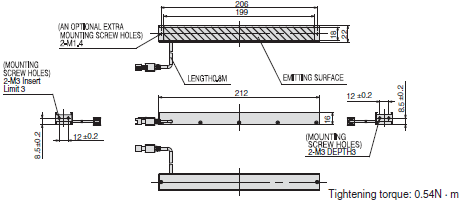

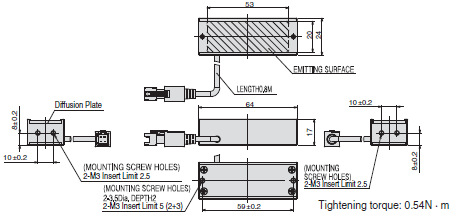

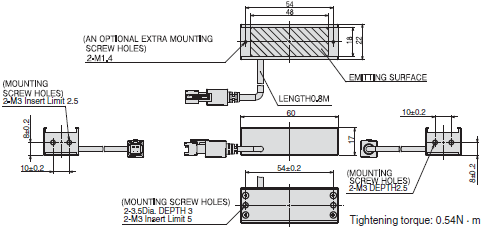

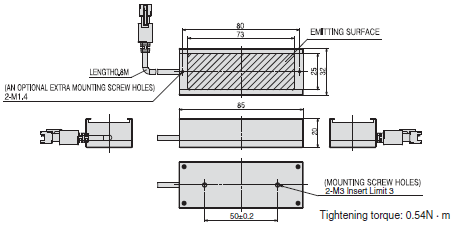

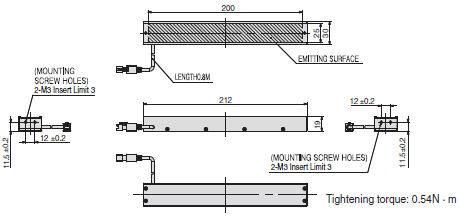

Bar Light
FLV-BR Series

Ideal for illumination of wide, rectangular surfaces.
Many color and size variations.

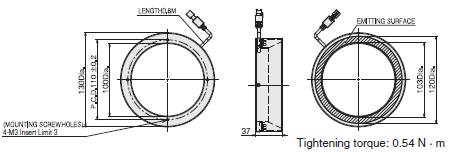

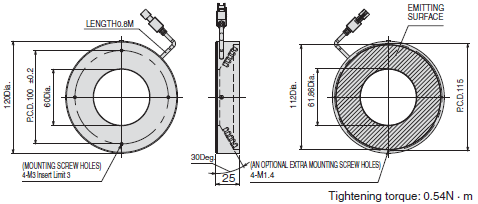

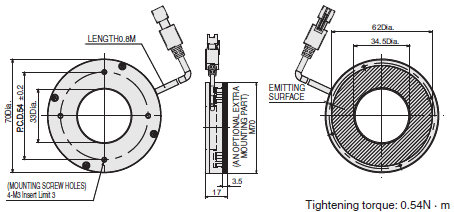

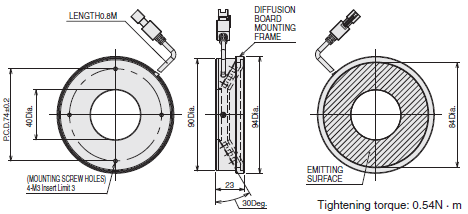

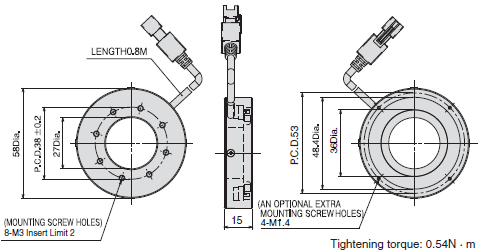

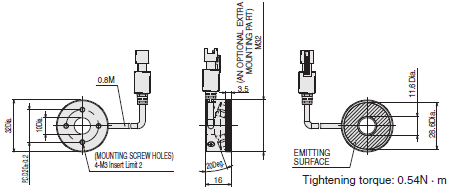

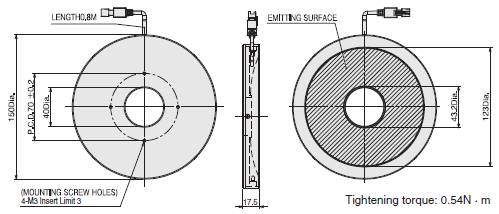

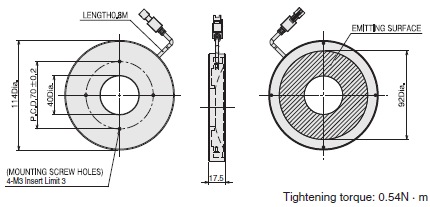

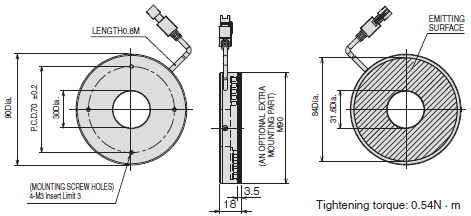

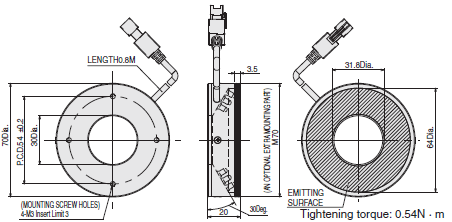

Direct Ring Light
FLV-DR Series

Bright illumination with high-density LED arrays.
Compact designs that save installation space.
Optional Diffusion Plates for uniform illumination.

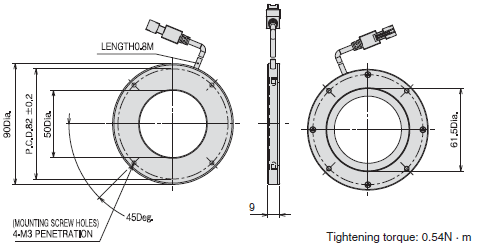

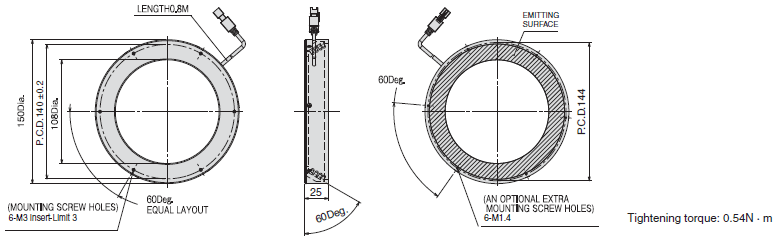

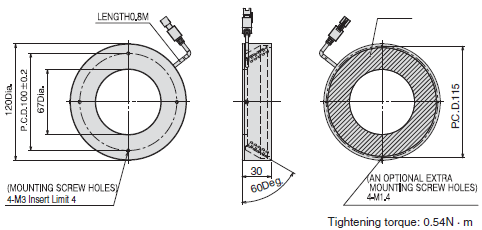

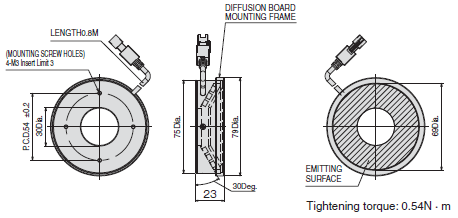

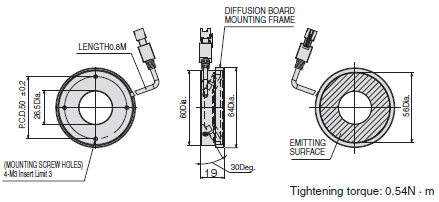

Low Angle Ring Light
FLV-DL Series

Bright illumination with high-density LED arrays.
Compact designs that save installation space.
Optional Diffusion Plates for uniform illumination.

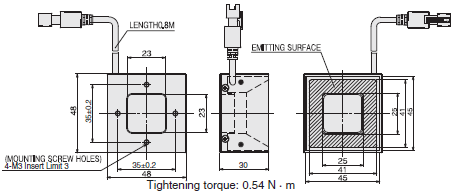

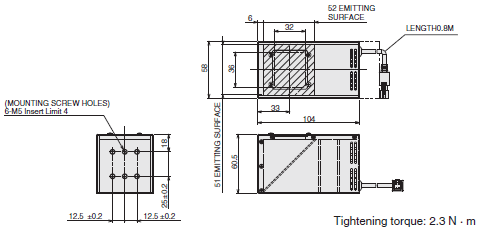

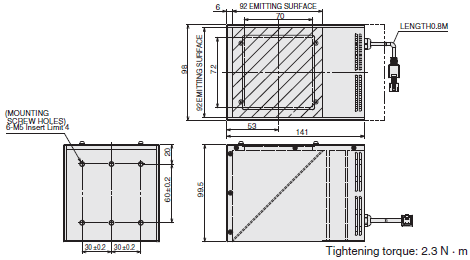

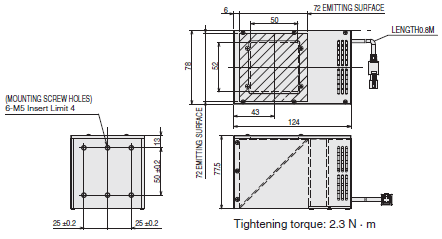

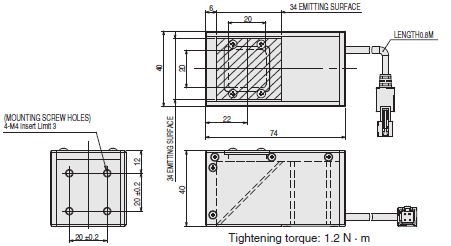

Coaxial Light
FLV-CL Series

Long life and stability result from a structure with optimum heat dissipation.
Uniform illumination for clear images.

Shadowless Light
FLV-FR Series

Special diffusion plates create greater uniformity in lighting than normal ring lighting.

Shadowless Light
FLV-FP Series

Shadowless Ring Lighting
Achieve highly uniform illumination and obtain different images at different installation distances for a much wider range of application compared to normal ring lighting.

Shadowless Light
FLV-FS Series

Uniquely designed diffusion plate achieve highly uniform illumination through reflection and diffusion.
Eliminates the influences of small surface irregularities to highlight features through large differences in inclination.
Saves space for small workpieces while achieving the benefits of dome lighting.

Shadowless Light
FLV-FQ Series

Shadowless Square Lighting
Achieves highly uniform illumination and obtains different images at different installation distances for a much wider range of applications compared to normal ring lighting.

Spot Light
FLV-EP50 Series

Superior directional characteristic, essentially parallel light, and long-distance illumination.

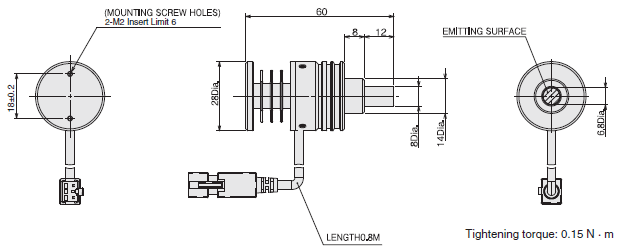

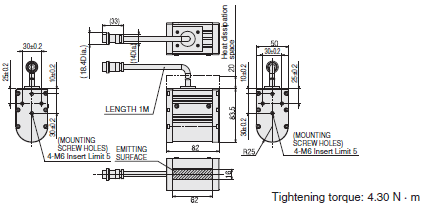

High-power Spot Light
FLV-EP08 Series

High-power LEDs generate strong light with a compact design.
Ideal for applications in combination with a Coaxial Lens.
Highly efficient heat-dissipating structure ensures a long life.

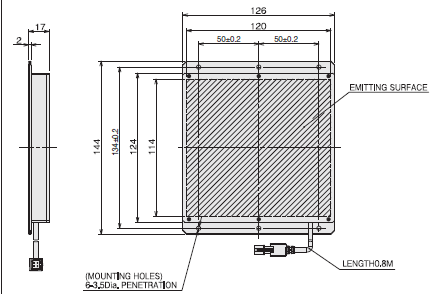

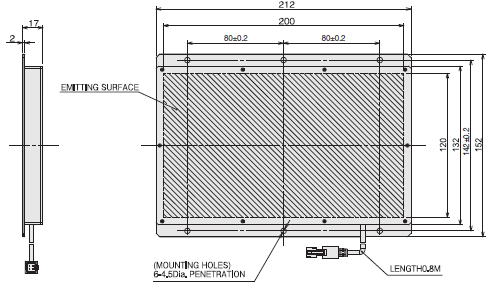

Direct Back Light
FLV-DB Series

Highly uniform backlighting with high-density LED arrays. Emphasizes the outline features of workpieces.

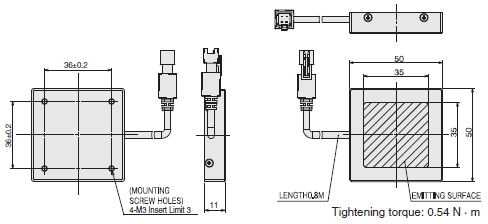

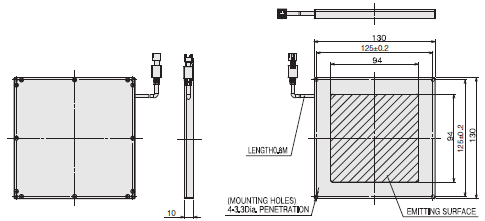

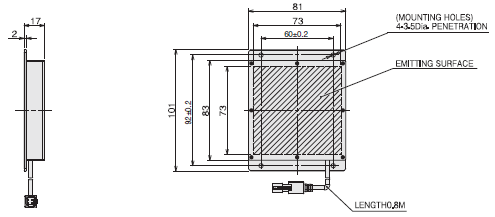

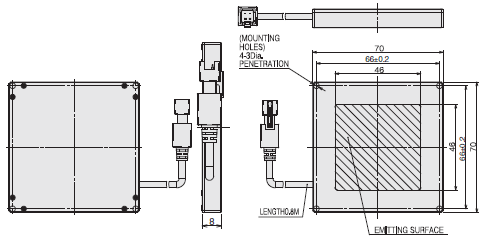

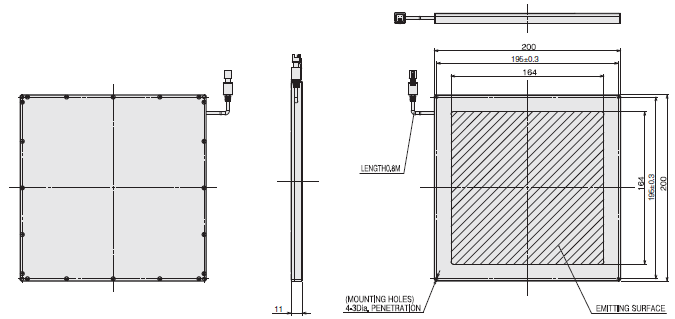

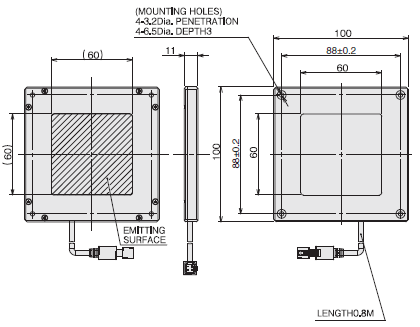

Edge Type Light
FLV-FB Series

Five size variations with emitting surfaces from 35 mm square to 164 mm square.
As thin as 8 mm (FLV-FB7070).

Edge Type Coaxial Light
FLV-FX Series

High uniformity with diffused illumination.
Achieves both shadowless and coaxial illumination.
Lightweight and compact to conveniently fit into narrow spaces.

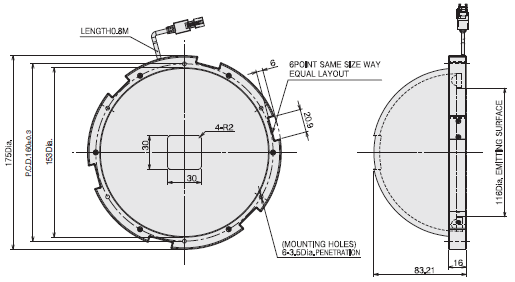

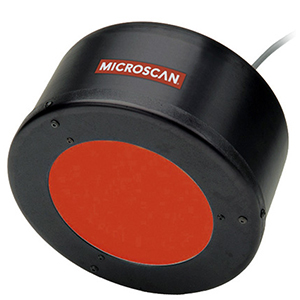

Dome Light
FLV-DD Series

Achieves uniform illumination by reflecting light from a ring-shaped light source through a highly reflective, diffusion dome.

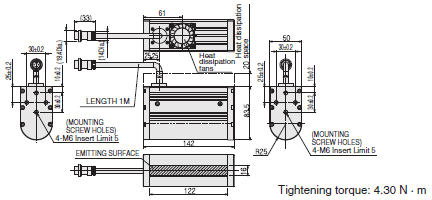

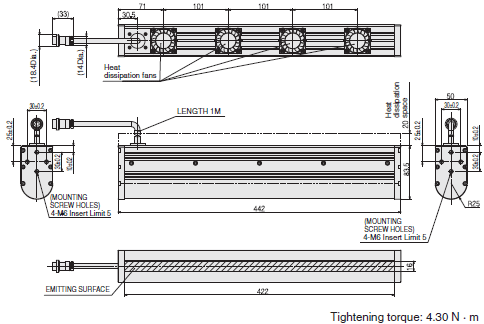

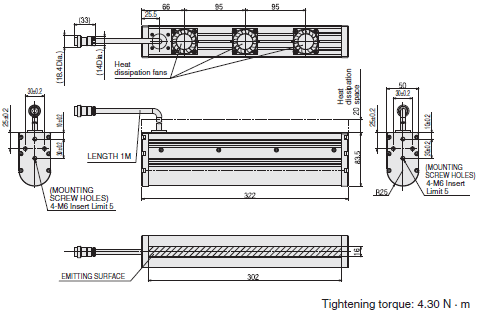

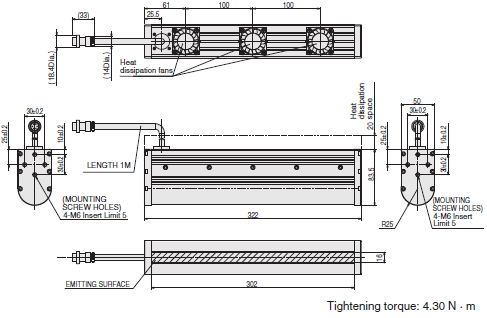

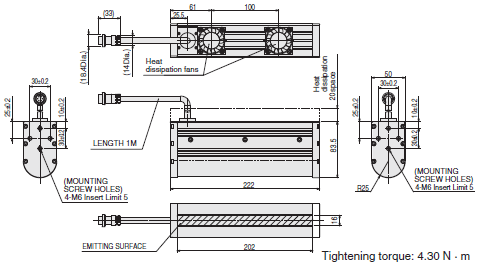

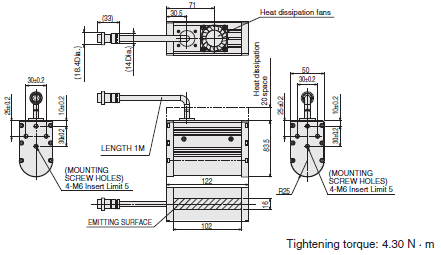

Line Light
FLV-LN Series

Extremely high brightness
Achieves highly effective line illumination with a condenser lens.

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Saves space with a compact design.

No need for space in control panels for expansion.
Maintain Lighting intensity even with long wiring distances.
No complicated wiring from the Vision System Controller.

Analog Lighting Controller for FLV Series
FLV-ATC Series

Stationary type suitable for separate installation when no space near the Camera.
Light emission trigger can be input directly even without Vision Sensor.

last update: December 11, 2014

last update: January 07, 2016

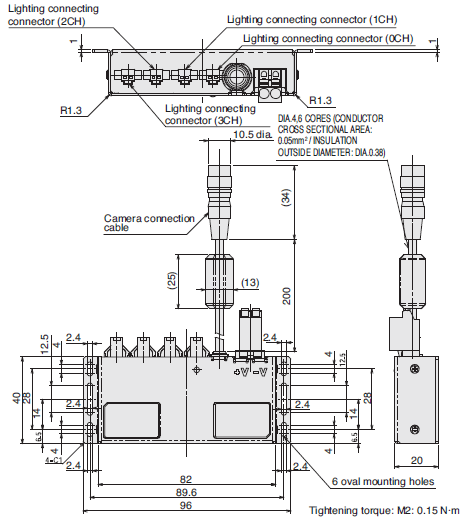

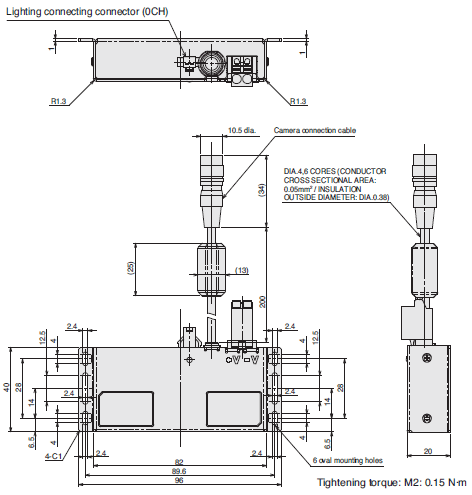

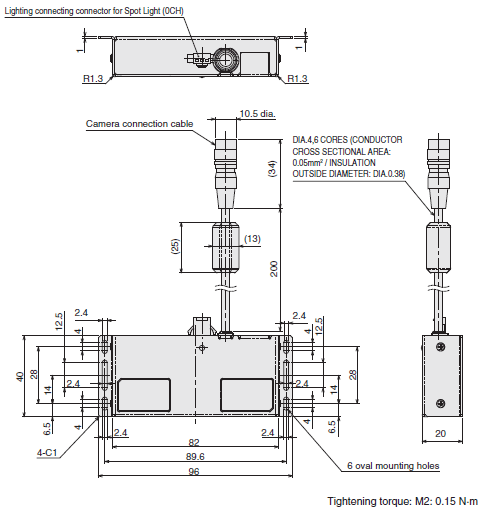

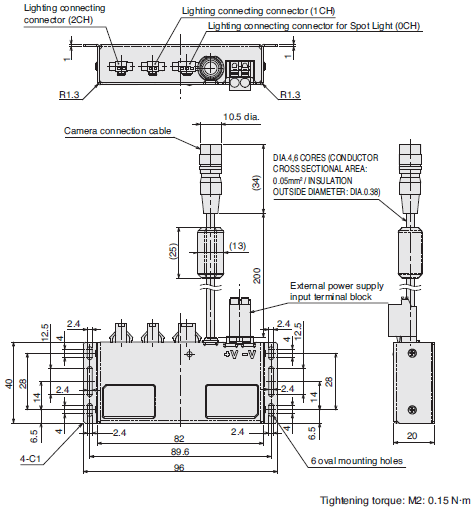

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Model				FLV-TCC4	FLV-TCC1
Number of connectable lightings				4 of standard lighting	1 of standard lighting
*Applicable Lighting 1**				FLV series (However, FLV-EP series and FLV-LN series are excluded.)
*Applicable Cameras 2**				FH-S series, FZ-S series
Applicable Image Sensor Controller				FH series, FZ5 series
Input Voltage				Supplied from applicable camera (12 V) or external power supply (24 V) *3
External power supply voltage				24 VDC 10% (including ripple)
Current consumption				1.5A max.
			Recommended power supply	Model S8VS-06024 (manufactured by OMRON, 24 VDC, 2.5 A, 60 W)
Connectable lighting	12 VDC for camera supply	Continuous lighting		4ch total 7.5 W max.	7.5 W max.
		Trigger lighting	Simultaneous lighting	4ch total 7.5 W max.	7.5 W max.
		Trigger lighting	Individual lighting	7.5 W max. for 1ch	7.5 W max.
	24 VDC for external supply	Continuous lighting		4ch total 7.5 W max.	7.5 W max.
		Trigger lighting	Simultaneous lighting	4ch total 15 W max.	15 W max.
		Trigger lighting	Individual lighting	15 W max. for 1ch	15 W max.
Drive method				Constant voltage method
Lighting method				Trigger lighting, Continuous lighting
Luminance Control Method				Duty light adjustment or voltage light adjustment Duty light adjustment: PWM frequency of 100 kHz, light adjustment of 255 levels Voltage light adjustment: Light adjustment of 255 levels (all are set with image sensor controller)
Trigger lighting				Lighting in synchronization with trigger input timing from the controller.
Trigger lighting delay time				Ton: 30μs max.
Lighting duration setting				Auto setting in accordance with shutter speed.
External Interface				Camera connection cable (directly connected with the main unit)
Insulation Resistance				0.5 MΩ (100VDC)
Ambient Temperature				Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient Humidity				Operating and storage: 35% to 85% (with no condensation)
Degree of Protection				IP20 (IEC60529)
Vibration Resistance(destructive)				10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and Z directions
Shock Resistance (destructive)				150 m/s² 3 times each in 6 directions(up/down, left/right, forward/backward)
Materials				Case,camera mount plate: Aluminum, Cable: FPVC
Weight				Approx. 130g (including the camera mount plate)	Approx. 120g (including the camera mount plate)
Accessories				Instruction manual(this manual), Lighting connection table, Camera Mount plate, Mounting screws (M2 set screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)
Applicable standards				EN61326-1 *4

Model				FLV-TCC3HB	FLV-TCC1EP
Number of connectable lightings				1 of spot lighting, 2 of standard lighting	1 of spot lighting
*Applicable Lighting 1**				FLV series (However, FLV-LN series are excluded.)	FLV-EP series
*Applicable Cameras 2**				FH-S series, FZ-S series
Applicable Image Sensor Controller				FH series, FZ5 series
Input Voltage				Supplied from applicable camera (12 V) or external power supply (24 V) *3	Supplied from applicable camera (12 V)
External power supply voltage				24 VDC 10% (including ripple)	-
Current consumption				1.5A max.	1.0A max.
			Recommended power supply	Model S8VS-06024 (manufactured by OMRON, 24 VDC, 2.5 A, 60 W)	-
Connectable lighting	12 VDC for camera supply	Continuous lighting		0ch connection: 1,2ch total 5.5 W max. 0ch non-connection: 1,2ch total 7.5 W max.	All FLV-EP series can be connected.
		Trigger lighting	Simultaneous lighting	0ch connection: 1,2ch total 5.5 W max. 0ch non-connection: 1,2ch total 7.5 W max.
		Trigger lighting	Individual lighting	7.5 W max. for 1ch
	24 VDC for external supply	Continuous lighting		0ch connection: 1,2ch total 5.5 W max. 0ch non-connection: 1,2ch total 7.5 W max.	-
		Trigger lighting	Simultaneous lighting	0ch connection: 1,2ch total 14 W max. 0ch non-connection: 1,2ch total 15 W max.
		Trigger lighting	Individual lighting	15 W max. for 1ch
Drive method				0ch Constant current method 1ch/2ch: Constant voltage method	Constant current method
Lighting method				Trigger lighting, Continuous lighting
Luminance Control Method				0ch Duty light adjustment or current light adjustment 1ch/2ch Duty light adjustment or voltage light adjustment Duty light adjustment: PWM frequency of 100 kHz, light adjustment of 255 levels current light adjustment/ Voltage light adjustment: Light adjustment of 255 levels (all are set with image sensor controller)	Duty light adjustment or current light adjustment Duty light adjustment: PWM frequency of 100 kHz, light adjustment of 255 levels current light adjustment: Light adjustment of 255 levels (all are set with image sensor controller)
Trigger lighting				Lighting in synchronization with trigger input timing from the controller.
Trigger lighting delay time				Ton: 30μs max.
Lighting duration setting				Auto setting in accordance with shutter speed.
External Interface				Camera connection cable (directly connected with the main unit)
Insulation Resistance				0.5 MΩ (100VDC)
Ambient Temperature				Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient Humidity				Operating and storage: 35% to 85% (with no condensation)
Degree of Protection				IP20 (IEC60529)
Vibration Resistance(destructive)				10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and Z directions
Shock Resistance (destructive)				150 m/s² 3 times each in 6 directions(up/down, left/right, forward/backward)
Materials				Case,Camera mount plate: Aluminum, Cable: FPVC
Weight				Approx. 130g (including the camera mount plate)	Approx. 120g (including the camera mount plate)
Accessories				Instruction manual(this manual), Lighting connection table, Camera Mount plate, Mounting screws (M2 set screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)
Applicable standards				EN61326-1 *4

*1. Check the lighting connection table of accessory.
*2. When mounting on model FH-S[]12, use model FH-SM12-XLC (separate sale).
*3. When supplying the power to this product from an external input power supply (24V), make sure to turn ON the power to this product first or at the same time with the image sensor controller. If you reverse this order, this product will not recognize the 24V external input, so lighting greater than 7.5W will not be possible
*4. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2) also, the following condition is applied to the immunity test of this product. There are case that Lighting brightness fluctuate Max 10%.

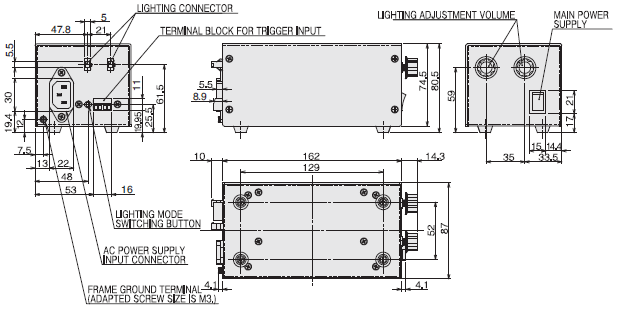

Analog Lighting Controller for FLV Series
FLV-ATC Series

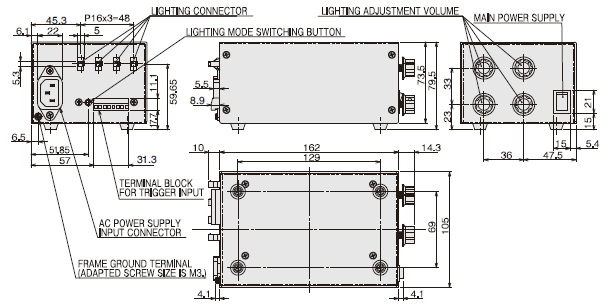

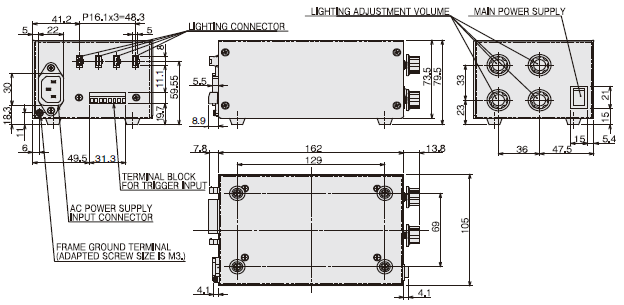

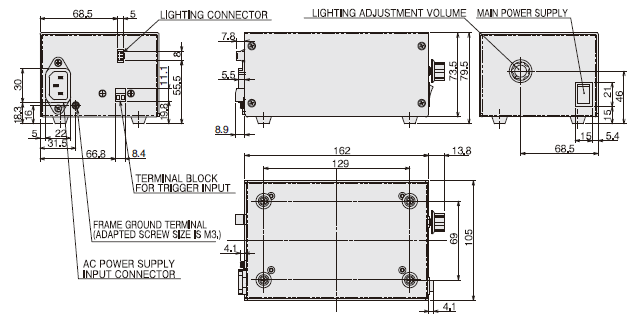

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

Model	*FLV-ATC21024-[] 1**	*FLV-ATC41024-[] 1**
Number of connectable lightings	1	4
Applicable light	FLV series (FLV-EP series and FLV-LN series are excluded.)
*Power supply voltage 2**	100 to 240 VAC, 50/60 Hz
Current consumption	1 A max.
Electricity of connectable lighting	2ch total 40 W max. 30 W max. for 1ch	4ch total 40 W max. 30 W max. for 1ch
Drive method	Constant voltage method
Lighting method	Trigger lighting, Continuous lighting
Intensity control method	Current light adjustment: 5 A max.
Trigger lighting	Lighting in synchronization with input from the trigger input terminal
Trigger lighting delay time	T_on: 100 μs max.
External interface	Trigger input terminal block
Dielectric strength	1500 VAC 50/60 Hz 1 min
Insulation resistance	20 MΩ (500 VDC)
Ambient temperature	Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: Aluminum
Weight	Approx. 800 g
Accessories	Instruction sheet, AC input cable *1
Applicable standards	EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field. This product cannot be used for the connection to electric power equipment, such as a common residence, store,small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)also, the following condition is applied to the immunity test of this product. There are case that Lighting brightness fluctuate Max 10%.

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

Model	*FLV-ATC10405-[] 1**	*FLV-ATC40405-[] 1**
Number of connectable lightings	1	4
Applicable light	FLV-EP series
*Power supply voltage 2**	100 to 240 VAC, 50/60 Hz
Current consumption	0.6 A max.
Electricity of connectable lighting	3 W max.	4ch total 12 W max. 3 W max. for 1ch
Drive method	Constant current method
Lighting method	Trigger lighting, Continuous lighting
Luminance control method	Current light adjustment: 5 A max.
Trigger lighting	Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time	T_on: 1000 μs max.
External interface	Trigger input terminal block
Dielectric strength	1500 VAC 50/60 Hz 1 min
Insulation resistance	20 MΩ (500 VDC)
Ambient temperature	Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: Aluminum
Weight	Approx. 800 g
Accessories	Instruction sheet, AC input cable *1
Applicable standards	EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field. This product cannot be used for the connection to electric power equipment, such as a common residence, store, and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2) also, the following condition is applied to the immunity test of this product. There are case that Lighting brightness fluctuate Max 10%.

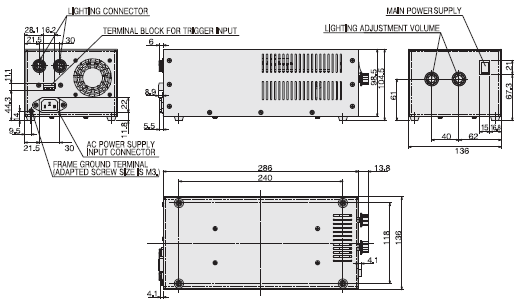

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

Model	*FLV-ATC26024-100V[] 1**	*FLV-ATC26024-200V[] 1**
Number of connectable lightings	2
Applicable light	FLV-LN series
*Power supply voltage 2**	100 to 120 VAC, 50/60 Hz	200 to 240 VAC, 50/60 Hz
Current consumption	7 A max.	4 A max.
Electricity of connectable lighting	2ch total 240 W max. 120 W max. for 1ch
Drive method	Constant voltage method
Lighting method	Trigger lighting, Continuous lighting
Luminance control method	Current light adjustment: 5 A max.
Trigger lighting	Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time	T_on: 500 μs max.
External interface	Trigger input terminal block
Dielectric strength	1500 VAC 50/60 Hz 1 min
Insulation resistance	20 MΩ (500 VDC)
Ambient temperature	Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: Aluminum
Weight	Approx. 2.1 kg
Accessories	Instruction sheet, AC input cable *1
Applicable standards	EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field. This product cannot be used for the connection to electric power equipment, such as a common residence, store, and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2) also, the following condition is applied to the immunity test of this product. There are case that Lighting brightness fluctuate Max 10%.

last update: January 07, 2016

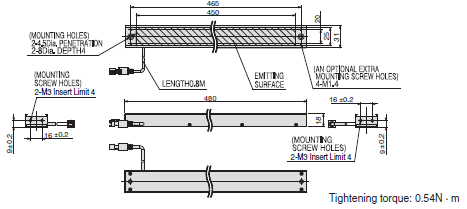

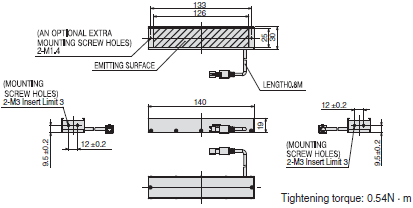

Bar Light
FLV-BR Series

FLV-BR6022[]

FLV-BR8532[]

FLV-BR11222[]

FLV-BR14030[]

FLV-BR15020[]

FLV-BR21222[]

FLV-BR21230[]

FLV-BR38037[]

FLV-BR48031[]

FLV-BR6424UV

FLV-BR11624UV

FLV-BR21230UV

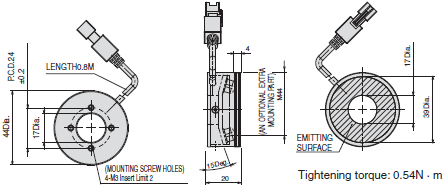

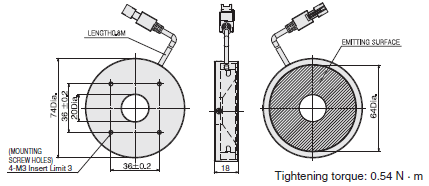

Direct Ring Light
FLV-DR Series

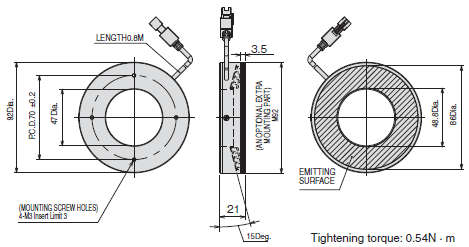

FLV-DR3220[]

FLV-DR4415[]

FLV-DR5030[]

FLV-DR6615[]

FLV-DR7000[]

FLV-DR7030[]

FLV-DR9000[]

FLV-DR9030[]

FLV-DR9215[]

FLV-DR12030[]

FLV-DR6030UV

FLV-DR7530UV

FLV-DR9030UV

Low Angle Ring Light
FLV-DL Series

FLV-DL5890[]

FLV-DL7260[]

FLV-DL9090[]

FLV-DL12060[]

FLV-DL15060[]

Please click image to enlarge (open in a new window).

Coaxial Light
FLV-CL Series

FLV-CL30[]

FLV-CL40[]

FLV-CL60[]

FLV-CL80[]

FLV-CL100[]

Shadowless Ring Light
FLV-FR Series

FLV-FR114[]

FLV-FR150[]

Shadowless Low Angle Ring Light
FLV-FP Series

FLV-FP130[]

Shadowless Dome Ring Light
FLV-FS Series

FLV-FS74[]

Shadowless Light
FLV-FQ Series

FLV-FQ48[]

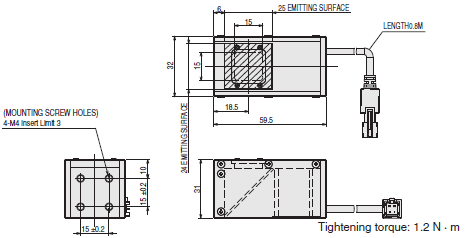

Spot Light
FLV-EP50 Series

FLV-EP50[]

High-power Spot Light
FLV-EP08 Series

FLV-EP0803[]

Direct Back Light
FLV-DB Series

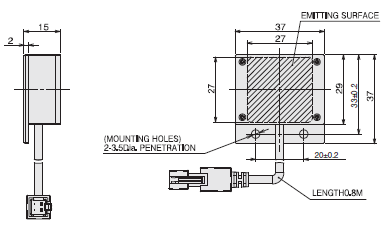

FLV-DB3729[]

FLV-DB101812[]

FLV-DB130130[]

FLV-DB212152[]

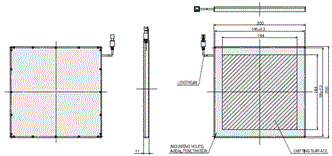

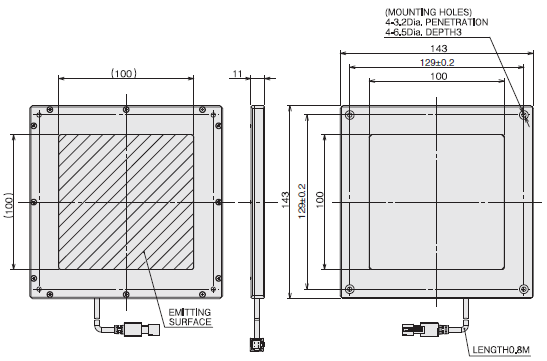

Edge Type Light
FLV-FB Series

FLV-FB5050[]

FLV-FB7070[]

FLV-FB9090[]

FLV-FB130130[]

FLV-FB200200[]

Please click image to enlarge (open in a new window).

Edge Type Coaxial Light
FLV-FX Series

FLV-FX100[]

FLV-FX143[]

Dome Light
FLV-DD Series

FLV-DD70[]

FLV-DD100[]

FLV-DD150[]

Line Light
FLV-LN Series

FLV-LN82W/B

FLV-LN142W/B

FLV-LN322W/B

FLV-LN442W/B

FLV-LN122R

FLV-LN222R

FLV-LN322R

FLV-LN422R

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Lighting Controller

FLV-TCC4

FLV-TCC1

FLV-TCC3HB

FLV-TCC1EP

Camera mount plate (provided)

Analog Lighting Controller for FLV Series
FLV-ATC Series

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

FLV-ATC21024-[]

FLV-ATC41024-[]

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

FLV-ATC10405-[]

FLV-ATC40405-[]

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

FLV-ATC26024-[]

Options for FLV series

Cable

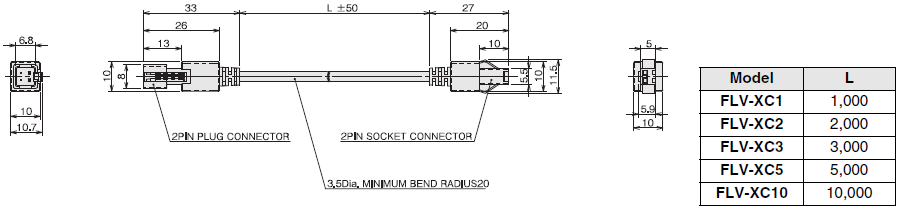

FLV-XC[]

Please click image to enlarge (open in a new window).

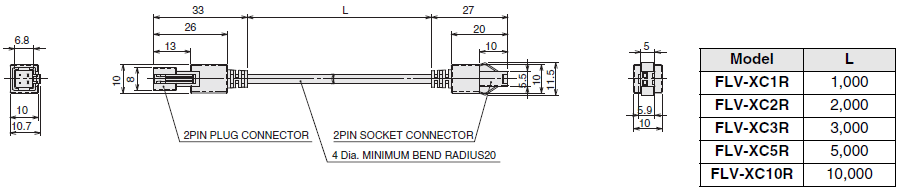

FLV-XC[]R

Please click image to enlarge (open in a new window).

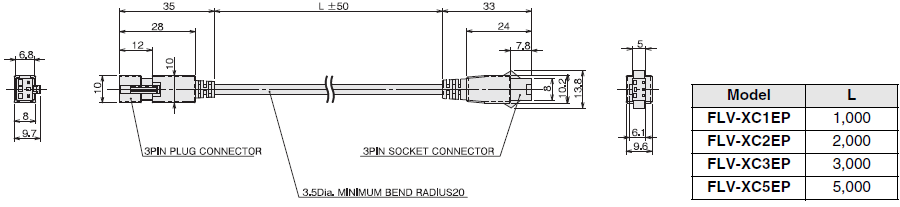

FLV-XC[]EP

Please click image to enlarge (open in a new window).

FLV-XC[]EPR

Please click image to enlarge (open in a new window).

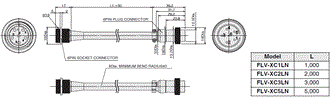

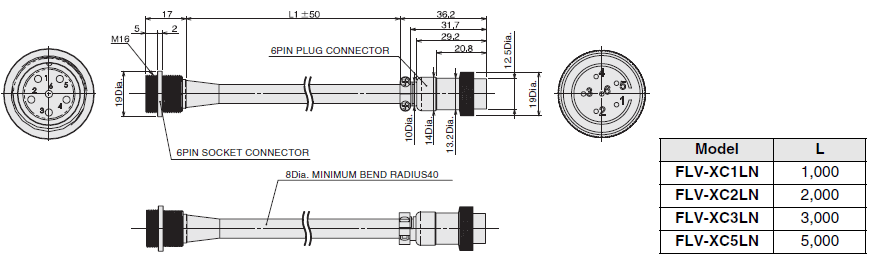

FLV-XC[]LN

Please click image to enlarge (open in a new window).

FLV-XC[]S2

Please click image to enlarge (open in a new window).

TITLE	DOCUMENT TYPE	SIZE
Vision Accessory	Catalog	48346 KB
FLV Lighting(Connection Table) (ENG/JPN/CHI)	Instruction Manual	140 KB
FLV-[]DF[] Diffuser Board	Instruction Manual	674 KB
FLV-[]IR/[]UV IR Lighting/UV Lighting	Instruction Manual	516 KB
FLV-[]PL Polarizing Plate	Instruction Manual	505 KB
FLV-ATC[]0405-[] Analog Lighting Controller for Spot Lighting	Instruction Manual	1354 KB
FLV-ATC[]1024-[] Analog Lighting Controller	Instruction Manual	1415 KB
FLV-ATC[]6024-[] Analog Lighting Controller for Line Lighting	Instruction Manual	1413 KB
FLV-BR[] Bar Lighting	Instruction Manual	538 KB
FLV-CL[] Coaxial Lighting	Instruction Manual	353 KB
FLV-DB[] Direct BackLighting	Instruction Manual	334 KB
FLV-DD[] Dome Lighting	Instruction Manual	361 KB
FLV-DL[] Low Angle Ring Lighting	Instruction Manual	414 KB
FLV-DR[] Direct Ring Lighting	Instruction Manual	589 KB
FLV-EP[] Spot Lighting	Instruction Manual	328 KB
FLV-FB[] Edge Type Lighting	Instruction Manual	363 KB
FLV-FR[][][][]/FP[][][][]/FS[][][][]/FQ[][][][] Shadowless Lighting	Instruction Manual	395 KB
FLV-FX[] Edge Type Coaxial Lighting(ENG/CHI)	Instruction Manual	316 KB
FLV-LN[] Line Lighting	Instruction Manual	1388 KB
FLV-TCC[] Camera-mount Lighting Controller	Instruction Manual	709 KB
FLV-XC[] Lighting Extension Cable(ENG/JPN/CHI)	Instruction Manual	1967 KB
FLV-XC[]EP Extension Cable for Spot Lighting (ENG/JPN/CHI)	Instruction Manual	1962 KB
FLV-XC[]LN Extension Cable for Line Lighting (ENG/JPN/CHI)	Instruction Manual	1485 KB
FLV-XC[]S2 Lighting Branch Cable (ENG/JPN/CHI)	Instruction Manual	2198 KB

Bar LightFLV-BR Series

Direct Ring LightFLV-DR Series

Low Angle Ring LightFLV-DL Series

Coaxial LightFLV-CL Series

Shadowless LightFLV-FR Series

Shadowless LightFLV-FP Series

Shadowless LightFLV-FS Series

Shadowless LightFLV-FQ Series

Spot LightFLV-EP50 Series

High-power Spot LightFLV-EP08 Series

Direct Back LightFLV-DB Series

Edge Type LightFLV-FB Series

Edge Type Coaxial LightFLV-FX Series

Dome LightFLV-DD Series

Line LightFLV-LN Series

Camera-mount Lighting Controller for FLV SeriesFLV-TCC Series

Analog Lighting Controller for FLV SeriesFLV-ATC Series

Camera-mount Lighting Controller for FLV SeriesFLV-TCC Series

Analog Lighting Controller for FLV SeriesFLV-ATC Series

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

Bar Light FLV-BR Series

Direct Ring Light FLV-DR Series

Low Angle Ring Light FLV-DL Series

Coaxial Light FLV-CL Series

Shadowless Ring Light FLV-FR Series

Shadowless Low Angle Ring Light FLV-FP Series

Shadowless Dome Ring Light FLV-FS Series

Shadowless Light FLV-FQ Series

Spot Light FLV-EP50 Series

High-power Spot Light FLV-EP08 Series

Direct Back Light FLV-DB Series

Edge Type Light FLV-FB Series

Edge Type Coaxial Light FLV-FX Series

Dome Light FLV-DD Series

Line Light FLV-LN Series

Camera-mount Lighting Controller for FLV Series FLV-TCC Series

Lighting Controller

Camera mount plate (provided)

Analog Lighting Controller for FLV Series FLV-ATC Series

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

Options for FLV series

Cable

Bar Light
FLV-BR Series

Direct Ring Light
FLV-DR Series

Low Angle Ring Light
FLV-DL Series

Coaxial Light
FLV-CL Series

Shadowless Light
FLV-FR Series

Shadowless Light
FLV-FP Series

Shadowless Light
FLV-FS Series

Shadowless Light
FLV-FQ Series

Spot Light
FLV-EP50 Series

High-power Spot Light
FLV-EP08 Series

Direct Back Light
FLV-DB Series

Edge Type Light
FLV-FB Series

Edge Type Coaxial Light
FLV-FX Series

Dome Light
FLV-DD Series

Line Light
FLV-LN Series

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Analog Lighting Controller for FLV Series
FLV-ATC Series

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Analog Lighting Controller for FLV Series
FLV-ATC Series

Bar Light
FLV-BR Series

Direct Ring Light
FLV-DR Series

Low Angle Ring Light
FLV-DL Series

Coaxial Light
FLV-CL Series

Shadowless Ring Light
FLV-FR Series

Shadowless Low Angle Ring Light
FLV-FP Series

Shadowless Dome Ring Light
FLV-FS Series

Shadowless Light
FLV-FQ Series

Spot Light
FLV-EP50 Series

High-power Spot Light
FLV-EP08 Series

Direct Back Light
FLV-DB Series

Edge Type Light
FLV-FB Series

Edge Type Coaxial Light
FLV-FX Series

Dome Light
FLV-DD Series

Line Light
FLV-LN Series

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Analog Lighting Controller for FLV Series
FLV-ATC Series
