Omron, XW2C-20G5-IN16

Home > Product > Switching & Accessories > Relay/SSR & I/O Boards > XW2C-20G5-IN16

Connector Terminal Block Conversion Units with Common

XW2C-20G5-IN16

Brand:

Features like a common terminal and LED operation indicators reduce control panel wiring for input devices.

• Power supply common provided for input devices.

• LEDs indicate at a glance whether input signals are ON or OFF.

• Mounts to DIN Track or via screws.

• Connecting Cable available (sold separately).

Rated current	1 A/common
Rated voltage	12 to 24 VDC
No. of circuits	16
Input indicator	LED (orange)
Power supply voltage range	12 to 24 VDC ± 5%
LED current	24 VDC: 10 mA/point max.
Insulation resistance	50 MΩ min. (at 500 VDC)
Dielectric strength	500 VAC for 1 min
Ambient operating temperature	0 to 55 ° C

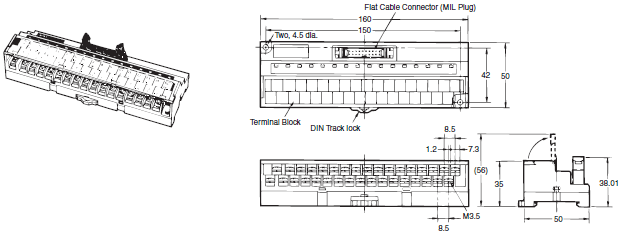

XW2C-20G5-IN16

TITLE	DOCUMENT TYPE	SIZE
XW2C-20G5-IN16	Catalog	445 KB
