Omron, 3Z4S-LT Series

last update: December 19, 2013

Illumination devices are essential for finding solutions to many of the image-processing tasks of vision sensors. With this in mind, we have now combined advanced MG-Wave® LED illumination from the broad moritex range of original and innovative products based on superior illumination technologies with vision sensor image-processing technologies and know-how accumulated over the years by OMRON.
This powerful collaboration has yielded a variety of optimal solutions to inspection and measurement needs in automated production applications.

last update: December 19, 2013

last update: April 01, 2015

New Power Supplies for MCEP/MSPP Series

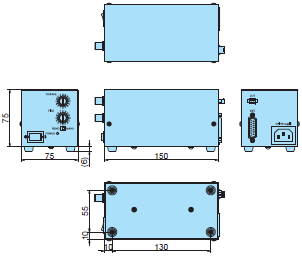

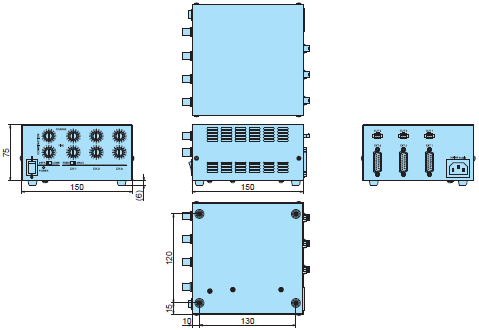

MLEP Analog Series

Model	MLEP- A035W1L R-100V	MLEP- A035W1L R-200V	MLEP- A070W1L R-100V	MLEP- A070W1L R-200V	MLEP- A035W3L R-100V	MLEP- A035W3L R-200V	MLEP- A070W3L R-100V	MLEP- A070W3L R-200V
AC Type	100 V	200 V	100 V	200 V	100 V	200 V	100 V	200 V
Output	Single-channel out put max. 350 mA		Single-channel out put max. 700 mA		3-channel out put for each channel max. 350 mA		3-channel out put for each channel max. 700 mA
Input voltage	100-240 V AC 50/60 Hz				100-240 V AC 50/60 Hz
Input current	0.35/0.25 A (at AC 100/240 V)				0.35/0.25 A (at AC 100/240 V)
Surge current	20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)				20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C				0 to +45˚C
Output system	Continuous DC output				Continuous DC output
Output control system	Constant current control (the current can be changed)				Constant current control (the current can be changed)
External light control	Supported (0 to 5 V)				Supported (0 to 5 V)
Lighting on/ off function	Supported (photocoupler insulation)				Supported (photocoupler insulation)
Cooling system	Natural air cooling				forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit				Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 0.9 kg				Approximately 1.4 kg

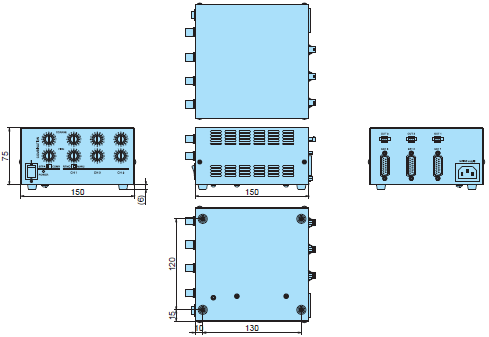

MLEP Digtal Series

Model	MLEP- A035W1L RD-100V	MLEP- A035W1L RD-200V	MLEP- A070W1L RD-100V	MLEP- A070W1L RD-200V	MLEP- A035W3L RD-100V	MLEP- A035W3L RD-200V	MLEP- A070W3L RD-100V	MLEP- A070W3L RD-200V
AC Type	100 V	200 V	100 V	200 V	100 V	200 V	100 V	200 V
Output	Single-channel out put max. 350 mA		Single-channel out put max. 700 mA		3-channel out put for each channel max. 350 mA		3-channel out put for each channel max. 700 mA
Input voltage	100-240 V AC 50/60 Hz				100-240 V AC 50/60 Hz
Input current	0.35/0.25 A (at AC 100/240 V)				0.35/0.25 A (at AC 100/240 V)
Surge current	20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)				20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C				0 to +45˚C
Output system	Continuous DC output				Continuous DC output
Output control system	Constant current control (the current can be changed)				Constant current control (the current can be changed)
External light control	Supported (8 bit digital)				Supported (for each channel, 8 bit digital)
Lighting on/ off function	Supported (photocoupler insulation)				Supported (photocoupler insulation)
Cooling system	Natural air cooling				forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit				Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 0.9 kg				Approximately 1.4 kg

New Power Supplies for MG-Wave Series

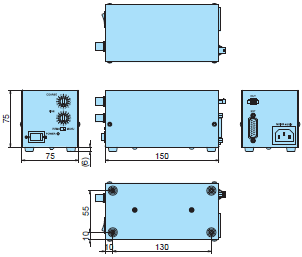

A080/230W Analog Series (Total current: 0.8 A or 2.3 A)

Model	MLEK- A080W1LR-100V	MLEK- A080W1LR-200V	MLEK- A080W2LR-100V	MLEK- A080W2R-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 0.8 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 0.8 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.3/0.15 A (at AC 100/240 V)		0.3/0.15 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Constant current control (the current can be changed)		Constant current control (the current can be changed)
External light control	Supported (0 to 5 V)		Supported (0 to 5 V)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	Natural air cooling		Natural air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1 kg		Approximately 1.3 kg

Model	MLEK- A230W1LR-100V	MLEK- A230W1LR-200V	MLEK- A230W2LR-100V	MLEK- A230W2LR-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 2.3 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 2.3 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.7/0.4 A (at AC 100/240 V)		0.7/0.4 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Supported (0 to 5 V dimmer signal/External VR input)		Supported (0 to 5 V dimmer signal/External VR input)
External light control	Constant current control (the current can be changed)		Constant current control (the current can be changed)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	forcible air cooling		forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1.1 kg		Approximately 1.4 kg

A080/230W Digtal Series (Total current: 0.8 A or 2.3 A)

Model	MLEK- A080W1LRD-100V	MLEK- A080W1LRD-200V	MLEK- A080W2LRD-100V	MLEK- A080W2RD-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 0.8 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 0.8 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.3/0.15 A (at AC 100/240 V)		0.3/0.15 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Constant current control (the current can be changed)		Constant current control (the current can be changed)
External light control	Supported (8 bit digital)		Supported (for each channel, 8 bit digital)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	Natural air cooling		Natural air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1 kg		Approximately 1.3 kg

Model	MLEK- A230W1LRD-100V	MLEK- A230W1LRD-200V	MLEK- A230W2LRDB-100V	MLEK- A230W2LRDB-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 2.3 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 2.3 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.7/0.4 A (at AC 100/240 V)		0.7/0.4 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Constant current control (the current can be changed)		Constant current control (the current can be changed)
External light control	Supported (8 bit digital)		Supported (for each channel, 8 bit digital)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	forcible air cooling		forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1.1 kg		Approximately 1.4 kg

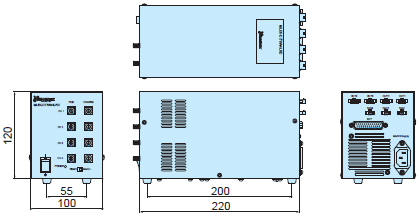

Multichannel series

Model	MLEK-D770W4LRD-100V	MLEK-D770W4LRD-200V
AC Type	100 V	200 V
Output	4-channel output Total max. 7.7 A (CH1 to CH 3: max. 2.3 A CH4: max. 0.8 A) (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz
Input current	1.7/0.8 A (at AC 100/240 V)
Surge current	18 A or lower (at 100 V AC) 41 A or lower (at 230 V AC)
Operating temperature	0 to +45˚C
Output system	Continuous DC output
Output control system	Constant current control (the current can be changed)
External light control	Supported (for each channel, 8 bit digital or 10 bit digital)
Lighting on/off function	Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)
Cooling system	forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 2 kg

last update: April 01, 2015

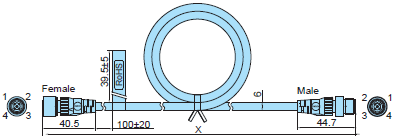

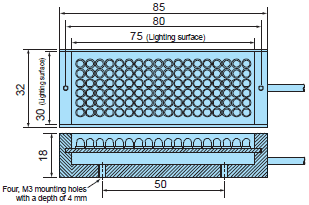

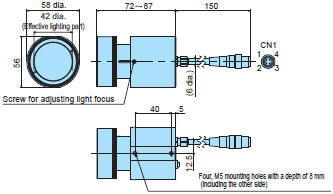

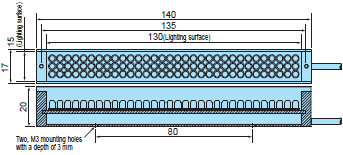

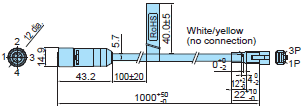

Direct Ring Light

MDRL-C[]10

MDRL-C[]16

MDRL-CR28

MDRL-C[]31

MDRL-C[]35

MDRL-C[]36

MDRL-C[]50

MDRL-C[]56

Standard cable length: 500 mm
Mounting hole position: Equally spaced starting at a 45° offset from where the cable is connected to the unit. (Hole diameters, depths, and quantities are shown in the drawings.)

Low Angle Ring Light

MLRL-C[]25

MLRL-C[]46

MLRL-C[]48

MLRL-C[]68

MLRL-C[]100

Standard cable length: 500 mm
Mounting hole locations: Equally spaced starting at a 45° offset from where the cable is connected to the unit. (Hole diameters, depths, and quantities are shown in the drawings.)

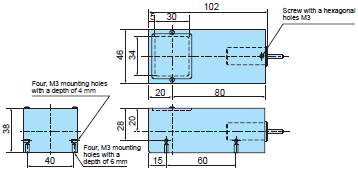

Coaxial Light/Simulated Coaxial Episcopic Light

MCEL-C[]8

MSCL-C[]24

MSCL-C[]39

MSCL-C[]56

MSCL-C[]74

MSCL-C[]105

Standard cable length: 500 mm

Shadowless Light

MSRL-C[]20 *

MSRL-C[]33 *

MSRL-C[]44 *

MSLL-C[]109 *

MSQL-C[]32

MSQL-C[]48

Standard cable length: 500 mm
* Mounting hole locations: Equally spaced starting at a 45° offset from where the cable is connected to the unit. (Hole diameters, depths, and quantities are shown in the drawings.)
