Microscan, Nerlite Dome Series

Dome illuminators are an economical source of diffused, uniform light. Their large, solid angle of illumination supports imaging of curved, shiny or bumpy surfaces. They are a cost-effective alternative to NERLITE CDI illuminators for applications not requiring an on-axis lighting component.

Available in 2 colors
Economical and widely-used general purpose designs
Easily integrated
Continuous or strobed diffused LED illumination

Illumination Example:

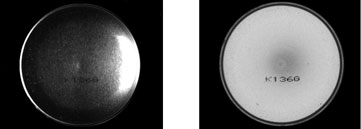

Bottom of aerosol can: Uniform illumination of concave surface results in contrast against printed characters

Functionality:

DOME 150

DESCRIPTION	nm/K	CONT. CURRENT	STROBE CURRENT	LUX
DOME-150, Red Continuous	636 nm	80 mA		950
DOME-150, Red Strobe	636 nm		1.6 A pk	9500
DOME-150, White Continuous	6500 K	160 mA		2270
DOME-150, White Strobe	6500 K		3.2 A pk	22700

Light Aperture: 4” (102 mm) diameter
Weight: 18 oz. (510 g)
Dimensions: Ø6.19” (157.3 mm) x D 3.28” (83.3 mm)

TITLE	DOCUMENT TYPE	SIZE
Dome Illuminator Configuration Guide	Catalog	832 KB
Dome Illuminator Specification Sheet	Catalog	622 KB
Dome Illuminator Drawings	Software	38 KB
