Microscan, Nerlite Pharmalite Series

Smart Series Pharmalite is ideally suited for illuminating labels, packaging containers, and other products in the pharmaceutical industry, as well as a variety of other packaging applications. The dark field geometry evenly illuminates flat, glossy surfaces without glare or hot spots. The Pharmalite camera mounting bracket simplifies integration by allowing direct mounting of Omron Microscan imagers, smart cameras and GigE cameras.

• Smart Series: Built-in controller with adjustable intensity continuous mode and high output strobe mode
• Integrated Pulse Width Modulation (PWM) feature for dimming and on-off control
• Mounting bracket allows easy, direct attachment to a variety of cameras:
- - QX Hawk and Vision HAWK
- - C-Mount QX Hawk and Vision HAWK
- - Visionscape GigE Camera

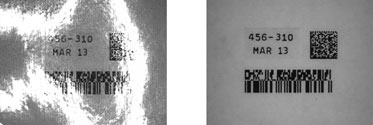

Illumination Example

Pharmalite Illumination Example

Functionality

Pharmalite Functionality Graphic

Aperture Dimensions: 1.79” (45.4 mm) x W 3.90” (99.1 mm)
Field of View: 2” (50.8 mm) x 1.5” (38.1 mm)
Stand Off: 1.5” (38.1 mm) to 2” (50.8 mm)
Weight: 11.2 oz. (318 g)
Dimensions: H 4.96” (126 mm) x W 4.14” (105.2 mm) x D 4.33” (110 mm)

TITLE	DOCUMENT TYPE	SIZE
Smart Series Pharmalite Configuration Guide	Catalog	689 KB
Smart Series Pharmalite Quick Start Guides	Software	3059 KB
Smart Series Pharmalite Drawings	Software	40844 KB
Smart Series Pharmalite Specification Sheet	Catalog	9564 KB
