Omron, V430-F / V420-F / V330-F / V320-F Series

last update: May 22, 2021

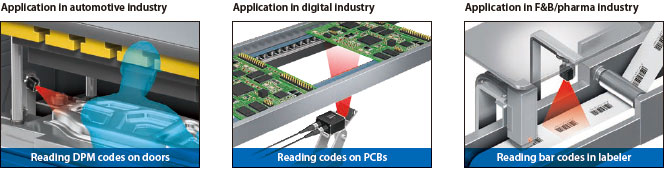

Easy to integrate

MicroHAWK V430-F / V420-F / V330-F / V320-F Features 1

Long life autofocus

Liquid lens for unlimited autofocus

MicroHAWK V430-F / V420-F / V330-F / V320-F Features 3

Code readers using a mechanical focus mechanism generally break due to deterioration of the drive mechanism or motor when they perform autofocus tens of thousands of times. The V430-F Series, on the other hand, uses a liquid lens that does not need a drive mechanism or motor, providing unlimited autofocus and long life.

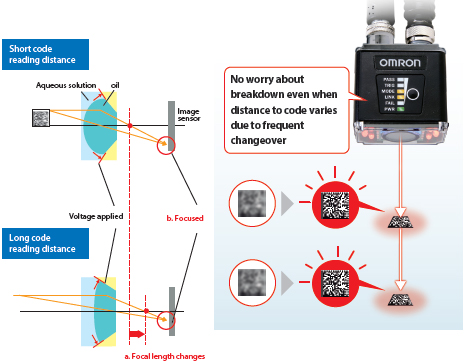

The liquid lens can fiexibly change its focal length by applying voltage to change the internal oil and water shape. (a in right figure) In addition, the V430-F Series precisely focuses on objects using the code search algorithm. (b in right figure)

Easy troubleshooting

Quick troubleshooting from web browser

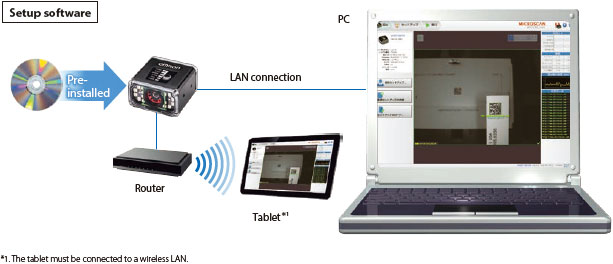

The V430-F Series has pre-installed software for setup. There is no software to install or update.
You can easily troubleshoot using a PC or tablet with the browser-based interface.

MicroHAWK V430-F / V420-F / V330-F / V320-F Features 5

Easy replacement of dirty window

MicroHAWK V430-F / V420-F / V330-F / V320-F Features 6

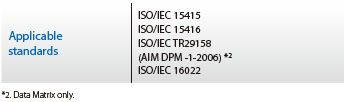

Print Quality Grading function to avoid problems

This function enables an in-line check of the relative quality change and the parameter where the change occurred.

MicroHAWK V430-F / V420-F / V330-F / V320-F Features 7

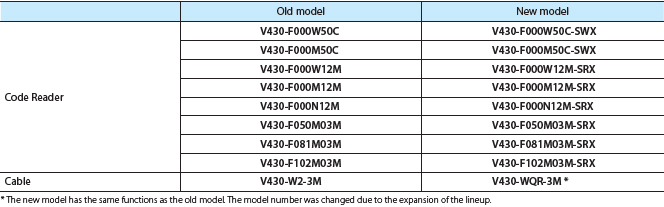

New models with improved functionality joined the V430-F Series.
Check the table below and use the new model.

last update: May 22, 2021

MicroHAWK V430-F

V430-F		V430-F[][][][]03M-[][][]	V430-F[][][][]12M-[][][]	V430-F[][][][]50C-[][][]
Symbologies *1	1D Symbologies	Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX
	2D Symbologies	Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
	Stacked Symbologies	PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading Performance *2	Number of Reading Digits	No Upper Limit (depending on bar width and reading distance)
	Aiming Light	Two Blue LEDs
	Illumination	Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
	Illumination	Outer LEDs: 8 Red or White	Outer LEDs: 8 Red or White; 24 Red or White for V430- F[][][][]12M-R[][]	Outer LEDs: 8 White
	Reading Distance/ Field of View	Refer to Read Ranges section for detail.

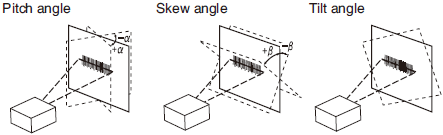

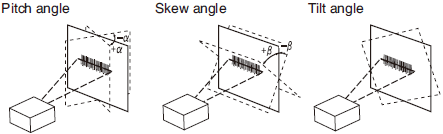

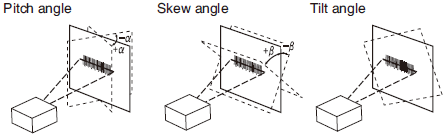

	*Pitch Angle (α) 3**	±30°
	*Skew Angle (β) 3**	±30°
	*Tilt Angle (γ) 3**	±180°
Image Capture	Focus	Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm, L = 16 mm)
	Resolution	752 (H) x 480 (V)	1280 (H) x 960 (V)	2592 (H) x 1944 (V)
	Color / Monochrome	Monochrome CMOS	Monochrome CMOS	Color CMOS
	Shutter	Global Shutter	Global Shutter	Rolling Shutter
	Frames per Second	60 fps	42 fps	5 fps
	Exposure	50 to 100,000 μs
Image Logging		FTP
Trigger		External Trigger (Edge or Level), Communication Trigger (Ethernet, RS-232C)
I/O Specifications	Input Signals	Trigger Input; New Master: Bi-Directional, Optoisolated, 4.5-28 V rated (10 mA @ 28 VDC)
I/O Specifications	Output Signals	3 Signals: Bi-Directional, Optoisolated, 1-28V rated, (ICE < 100 mA at 24VDC, current limited by user)
Communica- tion	Connectivity	RS-232C, Ethernet TCP/IP, EtherNet/IP, PROFINET
Communica- tion	Ethernet Specifications	100BASE-TX / 10BASE-T
Indicator LEDs		PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red), PWR (Green)
Power Supply Voltage		5 to 30.0 VDC, 200 mV p-p max ripple
Current Consumption		0.18 A at 24 VDC (max.)
Environmental Immunity *4	Ambient Temperature Range	Operating: 0 to 45°C Storage: -50 to 75°C (No Icing or Condensation)
	Ambient Humidity Range	Operating and Storage: 5% to 95% (Non-Condensing)
	Ambient Atmosphere	No Corrosive Gases
	Vibration Resistance (Destructive)	Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis. Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis
	Shock Resistance (Destructive)	50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis
	Degree of Protection	IEC 60529 IP65 and IP67
Weight	Main Body Only	Approx. 68 g
Weight	Packaging Weight	Approx. 174 g (including packing)
Dimensions	Main Body Dimensions	44.5 (W) × 44.5 (D) × 25.4 (H) mm
Dimensions	Packaging Dimensions	170 (W) × 117 (D) × 86 (H) mm
Accessories		ReadMeFirst, CE Compliance Sheet
LED Safety Standard		IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards		EN 55024:2010, EN 55032:2015 + AC:2016 FCC Part 15, Subpart B (Class B) UL60950-1 BIS RCM, KC, EAC and BSMI Pending
Materials	Case	Aluminum Diecast, Alumite (Black)
Materials	Reading Window	Acrylic
Software		WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.
*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 2

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
ensure proper operation.

MicroHAWK V420-F

V420-F		V420-F[][][][]03M-[][][]	V420-F[][][][]12M-[][][]	V420-F[][][][]50C-[][][]
Symbologies *1	1D Symbologies	Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX
	2D Symbologies	Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
	Stacked Symbologies	PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading Performance *2	Number of Reading Digits	No Upper Limit (depending on bar width and reading distance)
	Aiming Light	Two Blue LEDs
	Illumination	Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
	Illumination	Outer LEDs: 8 Red or White	Outer LEDs: 8 Red or White	Outer LEDs: 8 White
	Reading Distance/ Field of View	Refer to Read Ranges section for detail.
	*Pitch Angle (α) 3**	±30°
	*Skew Angle (β) 3**	±30°
	*Tilt Angle (γ) 3**	±180°
Image Capture	Focus	Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm, L = 16 mm)
	Resolution	752 (H) x 480 (V)	1280 (H) x 960 (V)	2592 (H) x 1944 (V)
	Color / Monochrome	Monochrome CMOS	Monochrome CMOS	Color CMOS
	Shutter	Global Shutter	Global Shutter	Rolling Shutter
	Frames per Second	60 fps	42 fps	5 fps
	Exposure	50 to 100,000 μs
Image Logging		FTP
Trigger		External Trigger (Edge or Level), Communication Trigger (Ethernet, RS-232C)
I/O Specifications	Input Signals	Trigger Input: 5-28 V rated (0.16 mA @ 5V DC); New Master: 5 to 28 V rated (0.16 mA @ 5 VDC); Default: 3.3 V rated (0 mA @ 3.3 V)
I/O Specifications	Output Signals	3 Signals: 5 V TTL-compatible, can sink 10 mA and source 10 mA
Communica- tion	Connectivity	RS-232C, USB 2.0 High Speed, Ethernet over USB/HID
Communica- tion	Ethernet Specifications	100BASE-TX / 10BASE-T
Indicator LEDs		PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red), PWR (Green)
Power Supply Voltage		5 VDC +/- 5%
Current Consumption		650 mA at 5 VDC (max.)
Environmental Immunity *4	Ambient Temperature Range	Operating: 0 to 45°C Storage: -50 to 75°C (No Icing or Condensation)
	Ambient Humidity Range	Operating and storage: 5% to 95% (Non-Condensing)
	Ambient Atmosphere	No Corrosive Gases
	Vibration Resistance (Destructive)	Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis. Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis
	Shock Resistance (Destructive)	50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis
	Degree of Protection	IEC 60529 IP54
Weight	Main Body Only	120 g
Weight	Packaging Weight	Approx. 230 g (including packing)
Dimensions	Main Body Dimensions	44.5 (W) × 38.1 (D) × 25.4 (H) mm
Dimensions	Packaging Dimensions	170 (W) × 117 (D) × 86 (H) mm
Accessories		ReadMeFirst, CE Compliance Sheet
LED Safety Standard		IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards		EN 55024:2010, EN 55032:2015 + AC:2016 FCC Part 15, Subpart B (Class A) UL60950-1 BIS RCM, KC, EAC and BSMI Pending
Materials	Case	Aluminum Diecast, Alumite (Black)
Materials	Reading Window	Acrylic
Software		WebLink

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 5

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
ensure proper operation.

MicroHAWK V330-F

V330-F		V330-F[][][][]03M- [][][]	V330-F[][][][]12M- [][][]	V330-F[][][][]50C- [][][]
Symbologies *1	1D Symbologies	Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX
	2D Symbologies	Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
	Stacked Symbologies	PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading Performance *2	Number of Reading Digits	No Upper Limit (depending on bar width and reading distance)
	Aiming Light	Two Blue LEDs
	Illumination	Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
	Illumination	Outer LEDs: None	Outer LEDs: None	Outer LEDs: None
	Reading Distance/ Field of View	Refer to Read Ranges section for detail.
	*Pitch Angle (α) 3**	±30°
	*Skew Angle (β) 3**	±30°
	*Tilt Angle (γ) 3**	±180°
Image Capture	Focus	Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm)
	Resolution	752 (H) x 480 (V)	1280 (H) x 960 (V)	2592 (H) x 1944 (V)
	Color / Monochrome	Monochrome CMOS	Monochrome CMOS	Color CMOS
	Shutter	Global Shutter	Global Shutter	Rolling Shutter
	Frames per Second	60 fps	42 fps	5 fps
	Exposure	50 to 100,000 μs
Image Logging		FTP
Trigger		Communication Trigger (Ethernet)
I/O Specifications	Input Signals	Ethernet
I/O Specifications	Output Signals	Ethernet
Communica- tion	Connectivity	Ethernet TCP/IP
Communica- tion	Ethernet Specifications	100BASE-TX / 10BASE-T
Indicator LEDs		PASS (Green), PWR (Green)
Power Supply Voltage		Source: 44-57 VDC IEEE802.3af POE
Current Consumption		Max Current: 0.10A
Environmental Immunity *4	Ambient Temperature Range	Operating: 0 to 40°C Storage: -50 to 75°C (No Icing or Condensation)
	Ambient Humidity Range	Operating and Storage: 5% to 95% (Non-Condensing)
	Ambient Atmosphere	No Corrosive Gases
	Vibration Resistance (Destructive)	Oscillation Frequency: 10 to 150Hz, Half Amplitude: 0.35 mm, Vibration Direction: X/Y/Z, Sweep Time: 8 minute/count, Sweep Count: 10 times
	Shock Resistance (Destructive)	Impact Force: 150 m/s², Test Direction: 6 directions, three times each (up/ down, front/back, left/right)
	Degree of Protection	IEC 60529 IP40
Weight	Main Body Only	72 g
Weight	Packaging Weight	Approx. 180 g (including packing)
Dimensions	Main Body Dimensions	40 (W) × 63 (D) × 24 (H) mm
Dimensions	Packaging Dimensions	170 (W) × 117 (D) × 86 (H) mm
Accessories		ReadMeFirst, CE Compliance Sheet
LED Safety Standard		IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards		EN 55024:2010, EN 55032:2015 + AC:2016 FCC Part 15, Subpart B (Class B) UL60950-1 BIS RCM, KC, EAC and BSMI Pending
Materials	Case	Aluminum Diecast, Alumite (Black)
Materials	Reading Window	Acrylic
Software		WebLink

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 8

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
ensure proper operation.

MicroHAWK V320-F

V320-F		V320-F[][][][]03M- [][][]	V320-F[][][][]12M- [][][]	V320-F[][][][]50C- [][][]
Symbologies *1	1D Symbologies	Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIX
	2D Symbologies	Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
	Stacked Symbologies	PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading Performance *2	Number of Reading Digits	No Upper Limit (depending on bar width and reading distance)
	Aiming Light	Two Blue LEDs
	Illumination	Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
	Illumination	Outer LEDs: None	Outer LEDs: None	Outer LEDs: None
	Reading Distance/ Field of View	Refer to Read Ranges section for detail.
	*Pitch Angle (α) 3**	±30°
	*Skew Angle (β) 3**	±30°
	*Tilt Angle (γ) 3**	±180°
Image Capture	Focus	Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm)
	Resolution	752 (H) x 480 (V)	1280 (H) x 960 (V)	2592 (H) x 1944 (V)
	Color / Monochrome	Monochrome CMOS	Monochrome CMOS	Color CMOS
	Shutter	Global Shutter	Global Shutter	Rolling Shutter
	Frames per Second	60 fps	42 fps	5 fps
	Exposure	50 to 100,000 μs
Image Logging		FTP
Trigger		External Trigger (Edge or Level), Communication Trigger (Ethernet, RS-232C)
I/O Specifications	Input Signals	Trigger Input: 5-28 V rated (0.16 mA @ 5 VDC); Default: 3.3 V rated (0 mA @ 3.3 V)
I/O Specifications	Output Signals	One Signal (Strobe): 5 V TTL-compatible, can sink 10 mA and source 10 mA
Communica- tion	Connectivity	USB 2.0 Full-Speed (Ethernet over USB and HID), RS-232
Communica- tion	Ethernet Specifications	100BASE-TX / 10BASE-T
Indicator LEDs		PASS (Green), PWR (Green)
Power Supply Voltage		5 VDC +/- 5%
Current Consumption		450 mA at 5 VDC (max.)
Environmental Immunity *4	Ambient Temperature Range	Operating: 0 to 40°C Storage: -50 to 75°C (No Icing or Condensation)
	Ambient Humidity Range	Operating and Storage: 5% to 95% (Non-Condensing)
	Ambient Atmosphere	No Corrosive Gases
	Vibration Resistance (Destructive)	Oscillation Frequency: 10 to 150 Hz, Half Amplitude: 0.35 mm, Vibration Direction: X/Y/Z, Sweep Time: 8 minute/count, Sweep Count: 10 times
	Shock Resistance (Destructive)	Impact Force: 150 m/s², Test Direction: 6 directions, three times each (up/ down, front/back, left/right)
	Degree of Protection	IEC 60529 IP40
Weight	Main Body Only	59 g
Weight	Packaging Weight	Approx. 166 g (including packing)
Dimensions	Main Body Dimensions	52 (W) × 39 (D) × 24 (H) mm
Dimensions	Packaging Dimensions	170 (W) × 117 (D) × 86 (H) mm
Accessories		ReadMeFirst, CE Compliance Sheet
LED Safety Standard		IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards		EN 55024:2010, EN 55032:2015 + AC:2016 FCC Part 15, Subpart B (Class B) UL60950-1 BIS RCM, KC, EAC and BSMI Pending
Materials	Case	Aluminum Diecast, Alumite (Black)
Materials	Reading Window	Acrylic
Software		WebLink

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 11

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
ensure proper operation.

last update: May 22, 2021

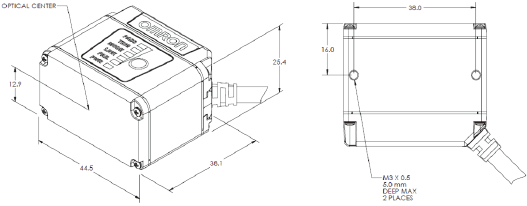

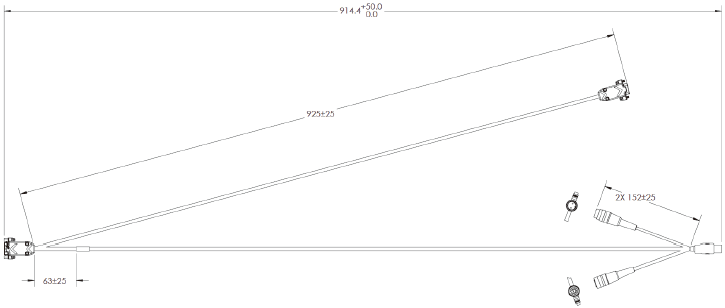

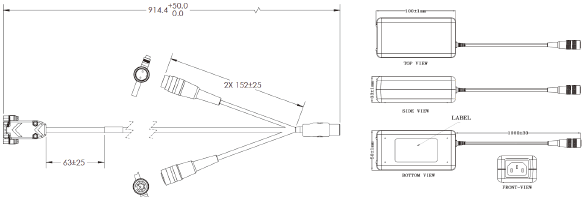

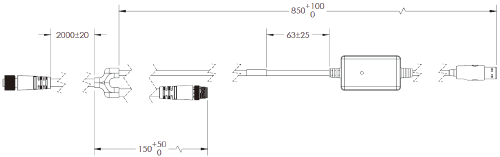

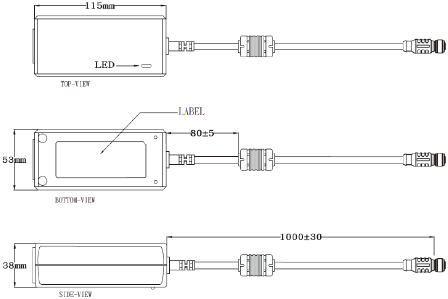

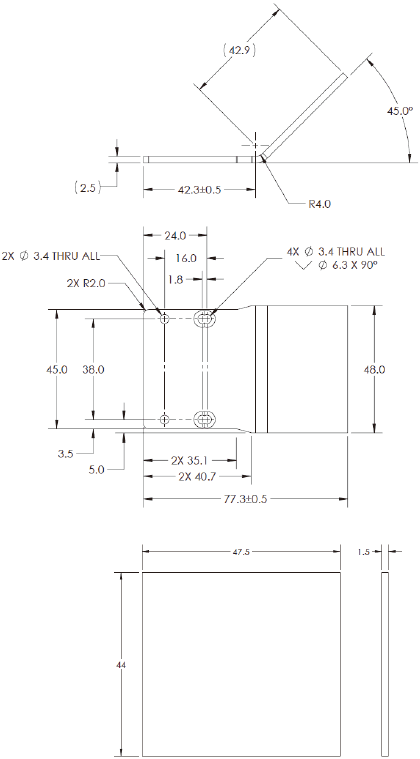

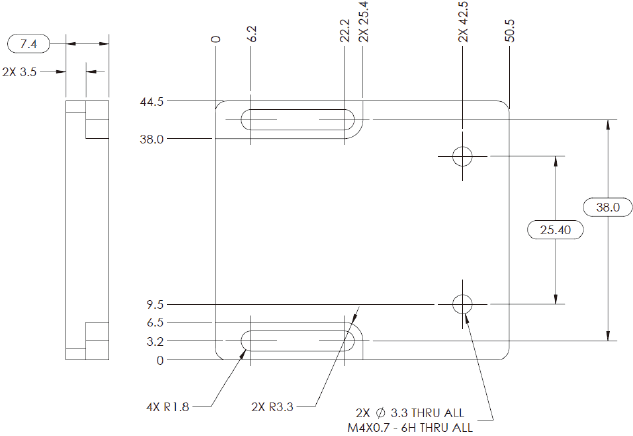

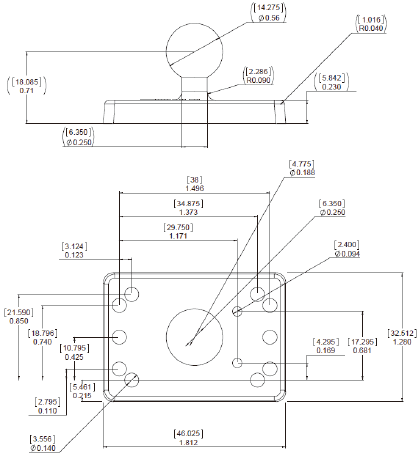

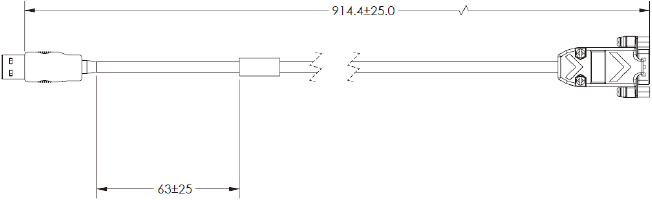

(Unit: mm)

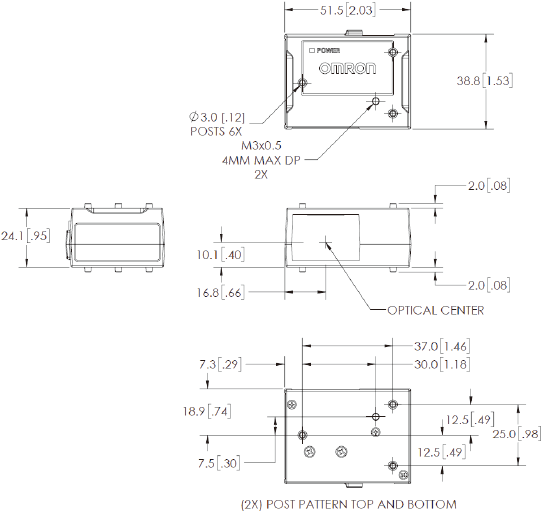

MicroHAWK V430-F

V430-F

V430-F with Alternate Optics and Illumination

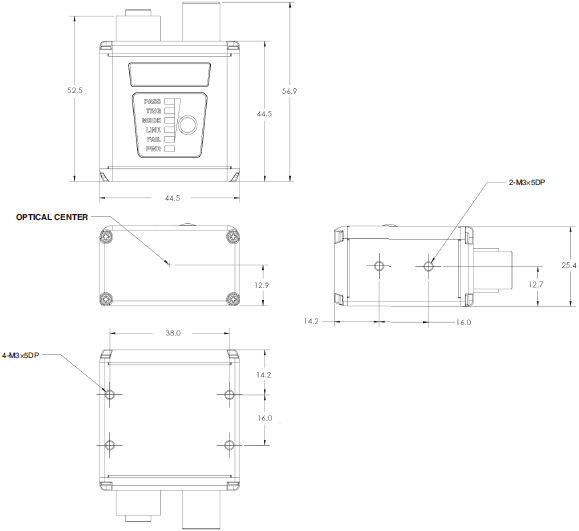

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 3

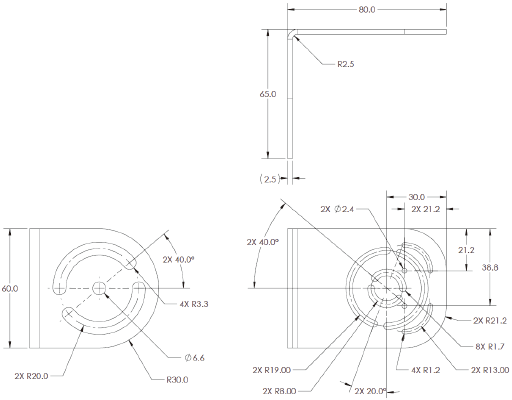

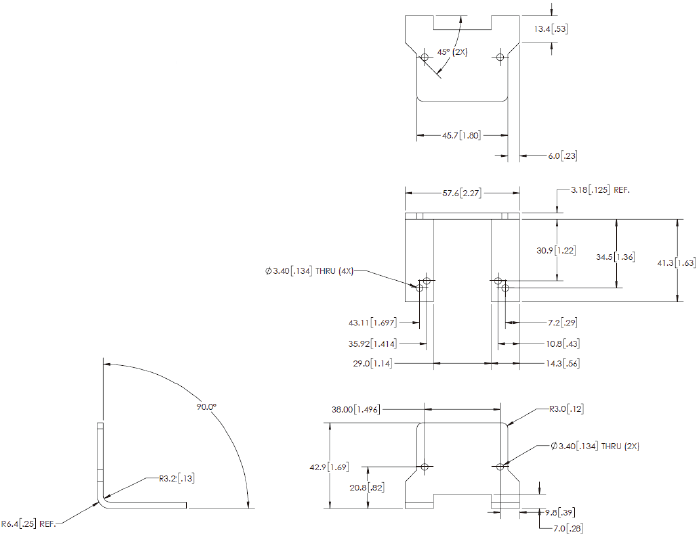

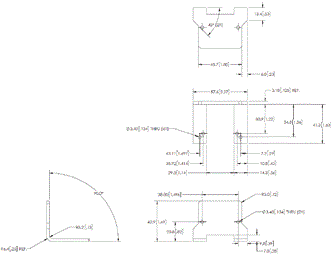

L Bracket Adjustable Angle Mounting Kit
V430-AM0

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 4

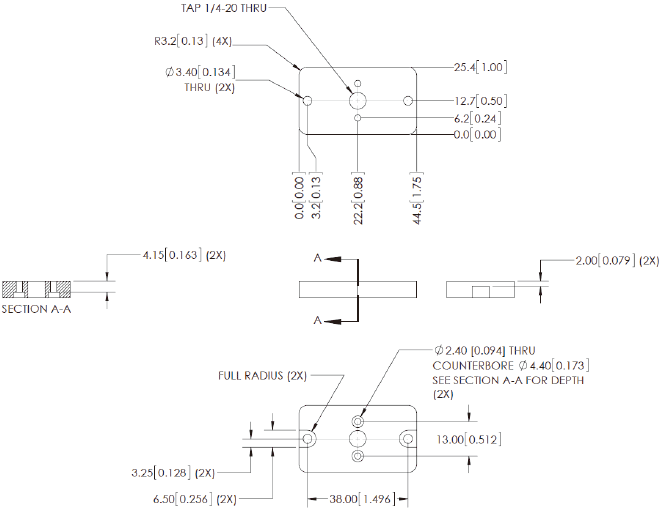

¼-20 Camera Mounting Block Kit
V430-AM1

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 5

4” (102 mm) Ram Mount Stand
V430-AM2

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 6

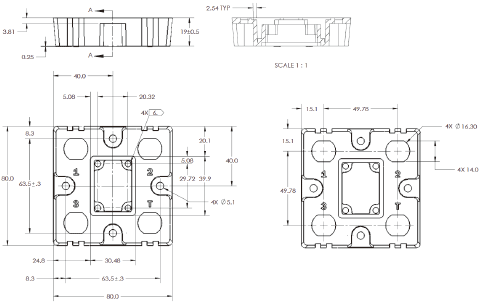

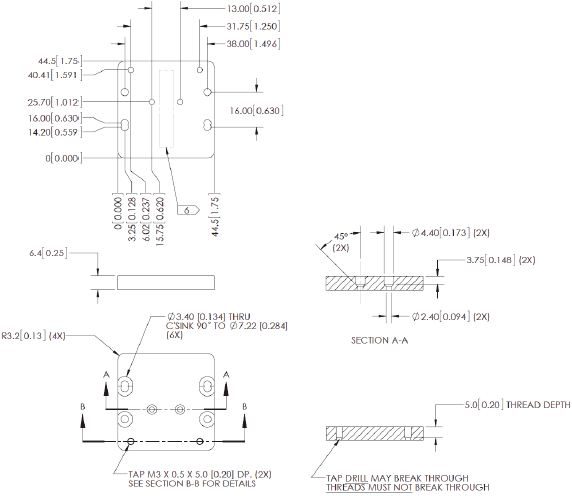

MS-4 / MINI to V/F4XX-F Adapter Plate
V430-AM5

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 7

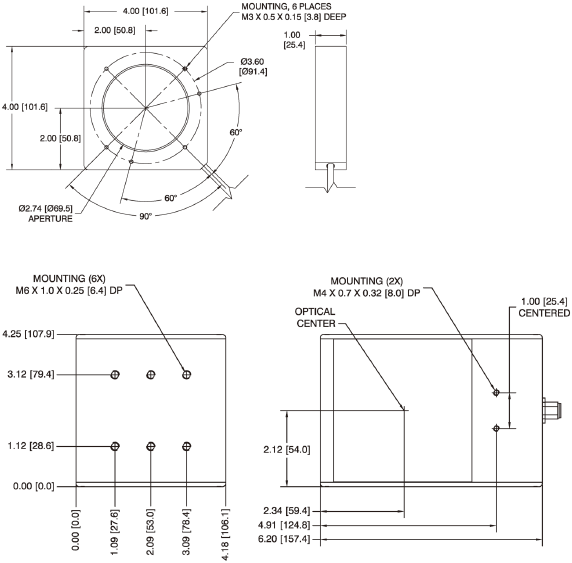

Smart Ring Light to V/F4XX-F Mounting Bracket
V430-AM6

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 8

QX / Vision HAWK to V/F4XX-F Adapter Plate
V430-AM7

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 9

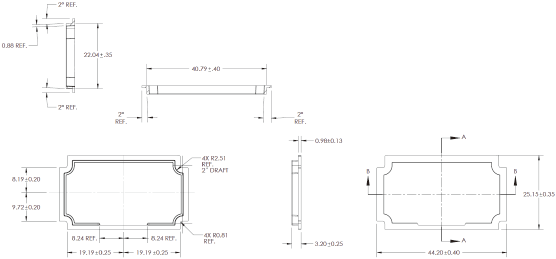

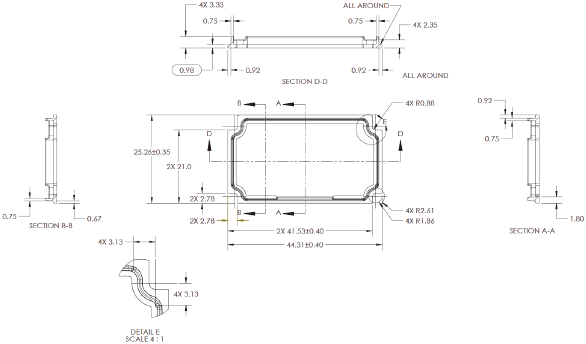

Front Window Installation Kit
V430-AF10
Diffuser Installation Kit
V430-AF11
Polarizer Installation Kit
V430-AF12
YAG Filter Installation Kit
V430-AF4
ESD-Safe Window Installation Kit
V430-AF5

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 10

Right Angle Mirror Installation Kit
V430-AF3

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 11

Red Filter Installation Kit
V430-AF6
Blue Filter Installation Kit
V430-AF7
Red Light Installation Kit
V430-ALR
White Light Installation Kit
V430-ALW
Blue Light Installation Kit
V430-ALB
IR Light Installation Kit
V430-ALI

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 12

Front Window Installation Kit
V430-AF0R
Diffuser Installation Kit
V430-AF1R
Polarizer Installation Kit
V430-AF2R
Red Ring Light Installation Kit
V430-ALRR
White Ring Light Installation Kit
V430-ALWR
Blue Ring Light Installation Kit
V430-ALBR
IR Ring Light Installation Kit
V430-ALIR

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 13

QX-1 Interconnect Module – Power, Trigger, Smart Light Control Breakout
98-000103-02

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 14

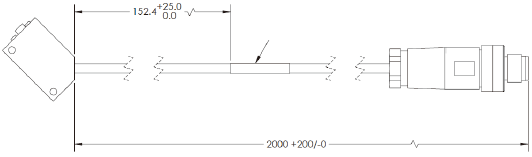

QX-1 Photo Sensor, M12 4-Pin Plug, NPN – 2 Meters – Light ON / Dark ON
99-9000016-01

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 15

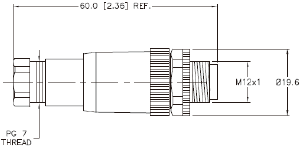

QX-1 Field-Wireable M12 4-Pin Plug for Any Trigger Source or Photo Sensor – Screw Terminals
98-9000239-01

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 16

Power Supply, 100-240VAC, +24VDC, M12 12-Pin Socket – 1 Meter – U.S. / Euro Plug
97-000012-01

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 17

Omron Microscan Smart Light Series – Integrated Power and Strobe Control Module
See Omron Microscan Smart Light Offering – Ring, DOAL, Large Area Lighting

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 18

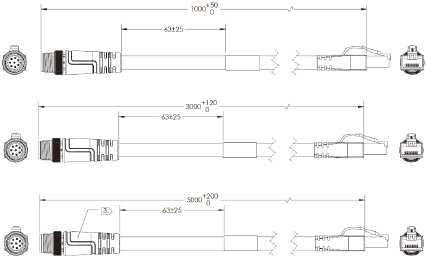

Ethernet Communication Cables – Straight Connectors – 1 Meter, 3 Meters, or 5 Meters
M12 Plug on Camera to RJ45 Connector
V430-WE-1M
V430-WE-3M
V430-WE-5M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 19

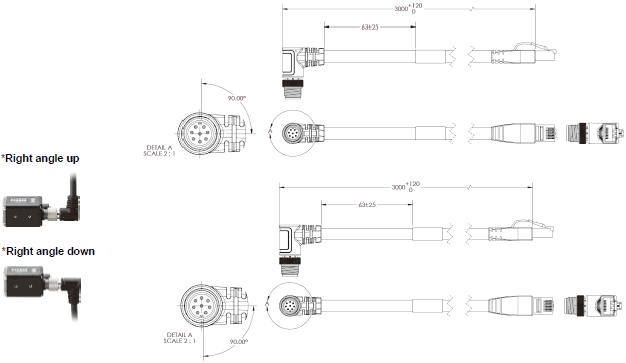

Ethernet Communication Cables – Right Angle M12 Connectors – 3 Meters
M12 Plug on Camera to RJ45 Connector
V430-WELU-3M (Right Angle Up)*
V430-WELD-3M (Right Angle Down)*

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 20

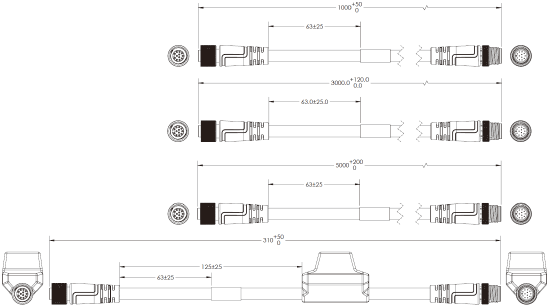

Camera to QX-1 Interconnect Cables – 1 Meter, 3 Meters, or 5 Meters
M12 Socket to M12 Plug
QX-1 is used as breakout module for common IO signals and power.
V430-WQ-1M
V430-WQ-3M
V430-WQ-5M
M12 Socket to M12 Plug, with Power Filter – 300 mm
V430-WQF-1M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 21

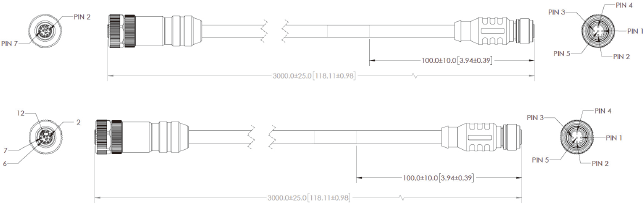

QX-1 M12 to Smart Light Power and Strobe Control Cables – 3 Meters
M12 Plug on QX-1 to 5 Pin Socket on Light
61-000204-01 (Continuous Power)
61-000218-01 (Strobe Control)

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 22

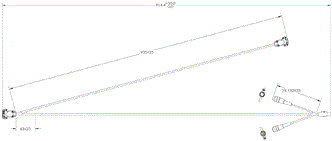

Y Cable, Camera/Power and Smart Light Power (Continuous On) – 1 Meter
61-9000135-01
Y Cable, Camera/Power and Smart Light Strobe Control – 1 Meter
61-9000137-01

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 23

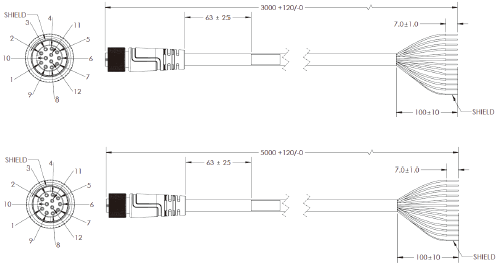

M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB – 3 Meters or 5 Meters
V430-W8-3M
V430-W8-5M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 24

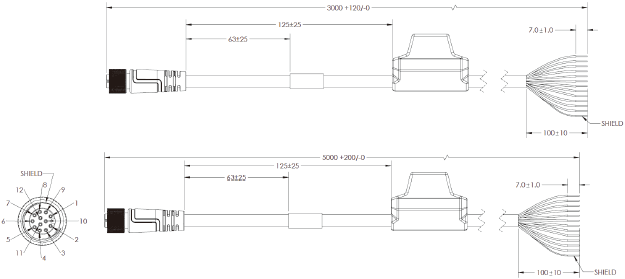

M12 to Flying Leads Cable, with Power Filter – 3 Meters or 5 Meters
V430-W8F-3M
V430-W8F-5M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 25

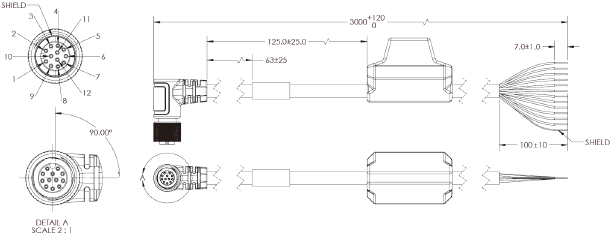

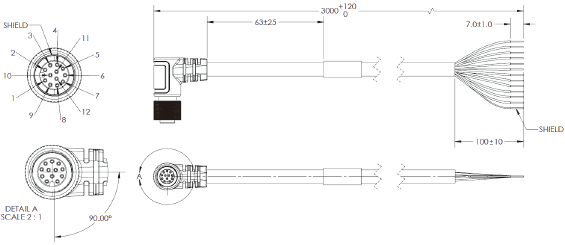

M12 to Flying Leads Cable Right Angle Up Power, IO, RS232, USB – 3 Meters
V430-W8LU-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 26

M12 to Flying Leads Cable Right Angle Up, with Power Filter – 3 Meters
V430-W8LUF-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 27

M12 to Flying Leads Cable Right Angle Down Power, IO, RS232, USB – 3 Meters
V430-W8LD-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 28

M12 to Flying Leads Cable Right Angle Down, with Power Filter – 3 Meters
V430-W8LDF-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 29

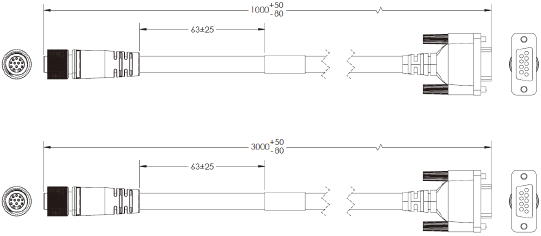

M12 to RS-232 Breakout – 1 Meter or 3 Meters
V430-WR-1M
V430-WR-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 30

Camera to QX-1 Interconnect Cables with RS-232 Breakout – 2.7 Meters
V430-WQR-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 31

Camera to QX-1 Interconnect Cables with USB Keyboard Wedge Breakout – 2.7 Meters
V430-WQK-3M

MicroHAWK V420-F

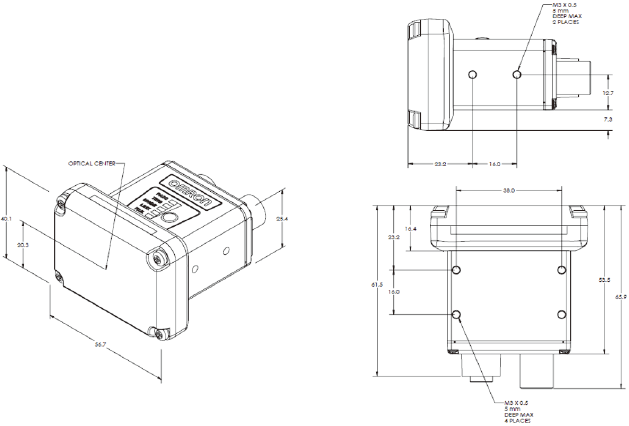

V420-F

L Bracket Adjustable Angle Mounting Kit
V430-AM0

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 35

¼-20 Camera Mounting Block Kit
V430-AM1

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 36

4” (102 mm) Ram Mount Stand
V430-AM2

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 37

MS-4 / MINI to V/F4XX-F Adapter Plate
V430-AM5

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 38

Smart Ring Light to V/F4XX-F Mounting Bracket
V430-AM6

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 39

QX / Vision HAWK to V/F4XX-F Adapter Plate
V430-AM7

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 40

Front Window Installation Kit
V430-AF10
Diffuser Installation Kit
V430-AF11
Polarizer Installation Kit
V430-AF12
YAG Filter Installation Kit
V430-AF4
ESD-Safe Window Installation Kit
V430-AF5

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 41

Right Angle Mirror Installation Kit
V430-AF3

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 42

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 43

USB Breakout Cable – 1 Meter
V420-WUB-1M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 44

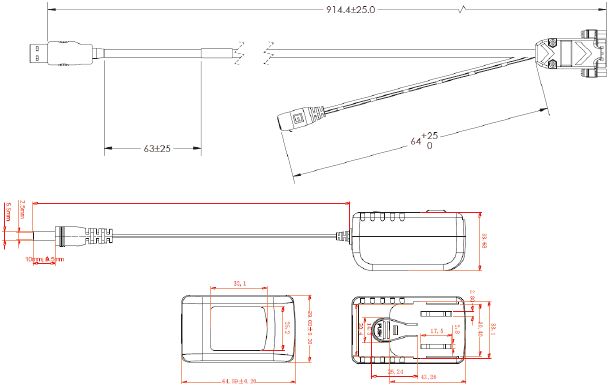

Kit – USB Breakout Cable with External Power Input (1 Meter) and Power Supply (2 Meters)
V420-AC1

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 45

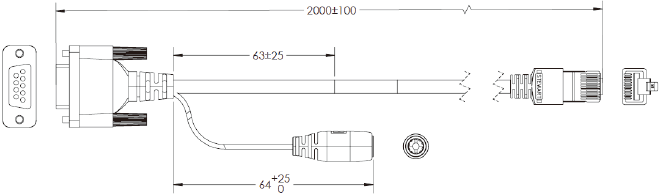

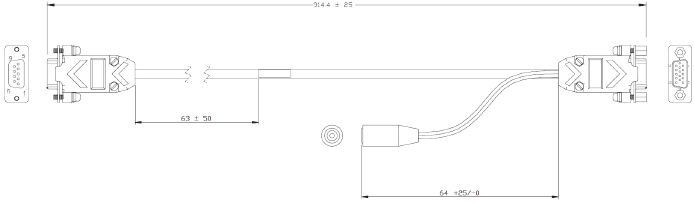

Kit – RS-232 Breakout Cable (DB-15) with External Power Input (1 Meter) and Power Supply (2 Meters)
V420-AC0

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 46

Kit – USB, IO, and Power Breakout Cable (1 Meters) and Power Supply (2 Meters)
V420-AC2

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 47

Cable – RS-232, USB, IO, and Power Breakout – 1 Meter
V420-WRU8X-1M

MicroHAWK V330-F

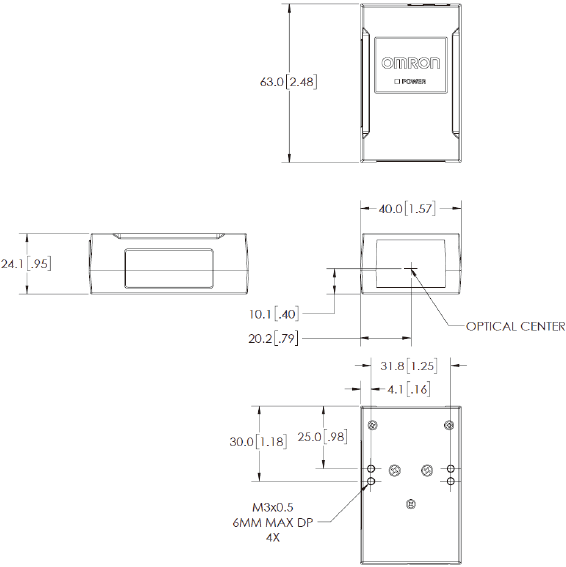

V330-F

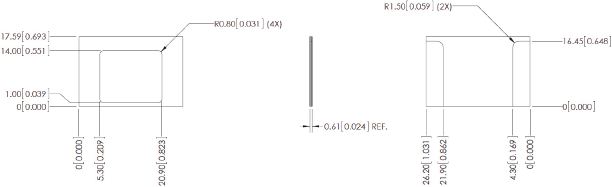

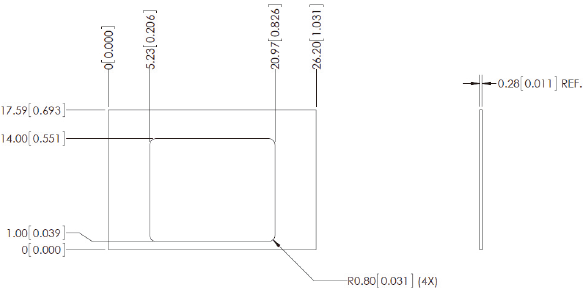

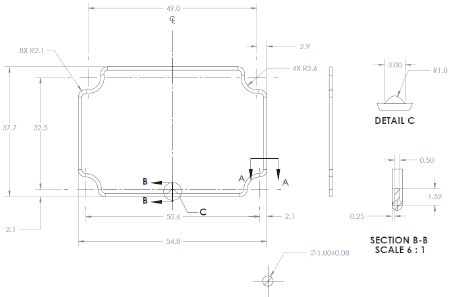

Diffuser Kit – Peel and Stick Accessory. Exterior to unit.
V330-AF1

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 51

Polarizer Kit – Peel and Stick Accessory. Exterior to unit.
V330-AF2

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 52

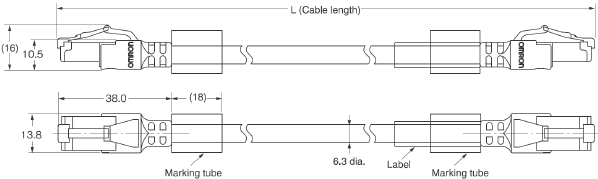

Standard Ethernet Cables, In-Cabinet Use; Standard RJ45 Connectors on Both Ends; Green
XS6W-5PUR8SS100CM-G
XS6W-5PUR8SS300CM-G
XS6W-5PUR8SS500CM-G
XS6W-5PUR8SS1000CM-G
XS6W-5PUR8SS1500CM-G

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 53

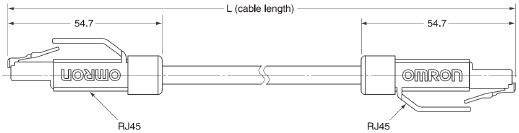

Standard Ethernet Cables, Out-of-Cabinet Use; Rugged RJ45 Connectors on Both Ends; Light Blue
XS5W-T421-CMD-K
XS5W-T421-EMD-K
XS5W-T421-GMD-K
XS5W-T421-JMD-K
XS5W-T421-KMD-K

High Flex Ethernet Cables for Robot and Cable Tray Use; Rugged RJ45 Connectors on Both Ends; Light Blue
XS5W-T421-CMD-KR
XS5W-T421-EMD-KR
XS5W-T421-GMD-KR
XS5W-T421-JMD-KR
XS5W-T421-KMD-KR

MicroHAWK V320-F

V320-F

Diffuser Kit – Peel and Stick Accessory. Exterior to unit.
V330-AF1

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 57

Polarizer Kit – Peel and Stick Accessory. Exterior to unit.
V330-AF2

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 58

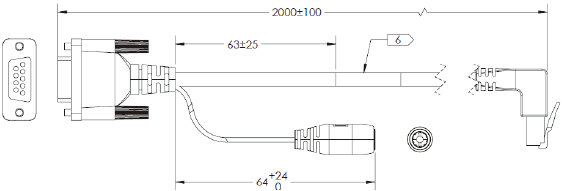

RJ50 to RS-232 and External Power, Straight – 2 Meters
V320-WRX-2M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 59

RJ50 to RS-232 and External Power, Right Angle – 2 Meters
V320-WRXLR-2M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 60

Power Supply for V320-WRX-2M and V320-WRXLR-2M – 2 Meters
97-9000006-01

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 61

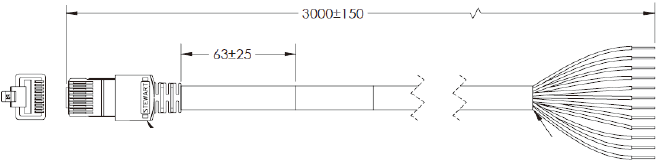

RJ50 to Flying Leads, Straight – 3 Meters
V320-W8-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 62

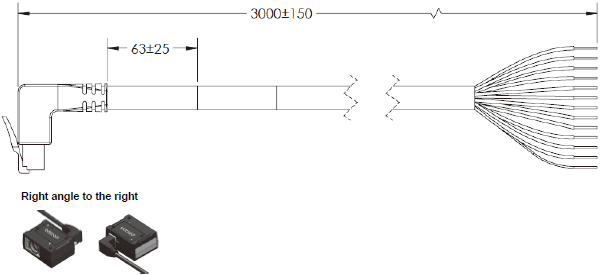

RJ50 to Flying Leads, Right Angle to the Right– 3 Meters
V320-W8LR-3M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 63

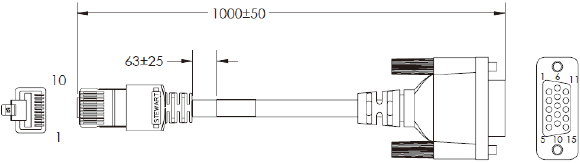

Adapter V/F320-F to all V420-F Cable Accessories, RJ50 to DB-15 – 1 Meter
V320-WR-1M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 64

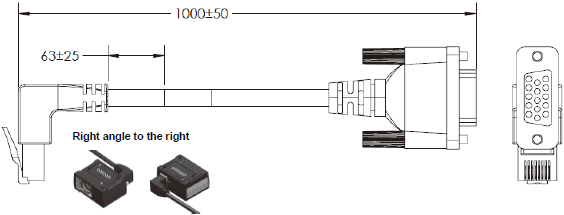

Adapter V/F320-F to all V420-F Cable Accessories, Right Angle to the Right, RJ50 to DB-15 – 1 Meter
V320-WRLR-1M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 65

USB Breakout Cable – 1 Meter
V420-WUB-1M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 66

Kit – USB Breakout Cable with External Power Input (1 Meter) and Power Supply (2 Meters)
V420-AC1

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 67

Kit – RS-232 Breakout Cable (DB-15) with External Power Input (1 Meter) and Power Supply (2 Meters)
V420-AC0

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 68

Kit – USB, IO, and Power Breakout Cable (1 Meters) and Power Supply (2 Meters)
V420-AC2

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 69

Cable – RS-232, USB, IO, and Power Breakout – 1 Meter
V420-WRU8X-1M

MicroHAWK V430-F / V420-F / V330-F / V320-F Dimensions 70

last update: May 22, 2021

TITLE	DOCUMENT TYPE	SIZE
Code Reader Group Catalog	Catalog	2705 KB
MicroHAWK V430-F Data Sheet	Data Sheet	2145 KB
MicroHAWK V420-F Data Sheet	Data Sheet	1496 KB
MicroHAWK V330-F Data Sheet	Data Sheet	1195 KB
MicroHAWK V320-F Data Sheet	Data Sheet	1902 KB
V430-F Data Sheet	Data Sheet	2446 KB

Easy to integrate

Long life autofocus

Liquid lens for unlimited autofocus

Easy troubleshooting

Quick troubleshooting from web browser

Easy replacement of dirty window

Print Quality Grading function to avoid problems

MicroHAWK V430-F

MicroHAWK V420-F

MicroHAWK V330-F

MicroHAWK V320-F

MicroHAWK V430-F

V430-F

V430-F with Alternate Optics and Illumination

MicroHAWK V420-F

V420-F

MicroHAWK V330-F

V330-F

MicroHAWK V320-F

V320-F

Group Sites

Our Partner Sites

Subscribe Our Newsletter
